D-Link DES-3624 User Manual
Page 91
Stackable NWay Ethernet Switch User’s Guide
Using the Console Interface
91

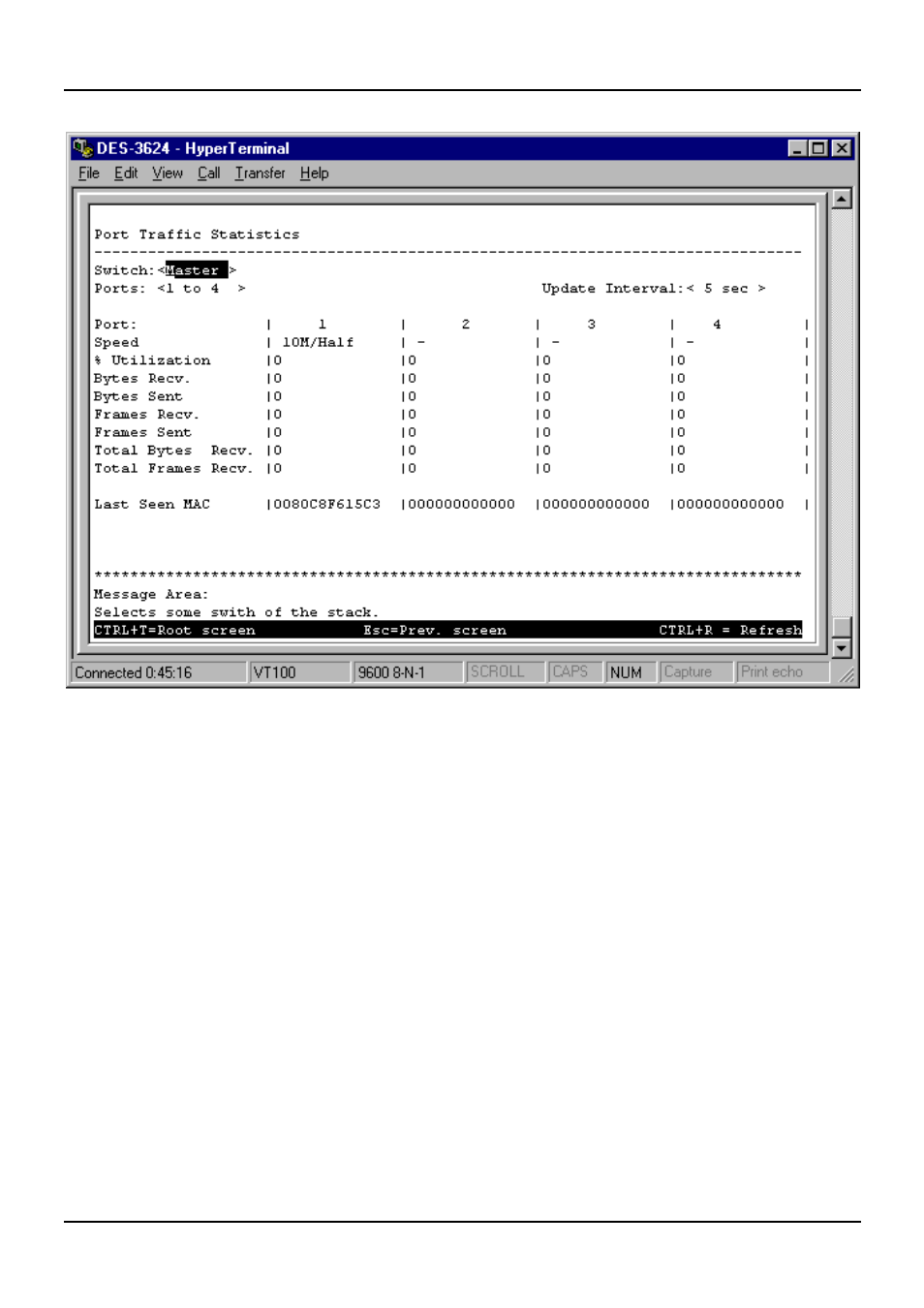

Figure 6-47. Port Traffic Statistics screen
Select the desired device in the Switch field, the desired setting in the Ports field, and the desired increment
setting in the Update Interval field: 5 sec, 15 sec, 30 sec, 1 min, or Suspend.
The statistic counters displayed are defined as follows:
♦
Speed If the link is up, the speed and duplex status will be displayed; if the link is down “-” will be
displayed.
♦
% Utilization This shows the percentage of available bandwidth each port is using over the amount of
time specified by the update interval. For example, when a 10 Mbps port is relaying packets at 5 Mbps, the
utilization is 50%.
♦
Bytes Recv. The number of good bytes received. This also includes local and dropped packets.
♦
Bytes Sent The number of good bytes sent from the respective port.
♦
Frames Recv. The number of good frames received. This also includes local and dropped packets.
♦
Frames Sent The number of good frames sent from the respective port.
♦
Total Bytes Recv. The number of bytes received, good and bad.
♦
Total Frames Recv. The number of frames received, good and bad.
♦
Last Seen MAC The MAC address of the last device that sent packets over this port.
