Stackable NWay Ethernet Switch User’s Guide
Using the Console Interface 77
2. Define which ports will be active members of the VLAN. A port can transmit packets onto only one VLAN.
It can receive packets (be a passive member) on many VLANs. Active VLANs are designations defined by
assigning Port VLAN ID numbers (PVIDs) in the Default port VLAN assignment screen.
3. Define the VLAN itself and which ports will be members (able to receive packets from a port that has this
PVID number). At this point, you need to designate whether a member port will be a Tagging or Untagging
member port. Defining the ports that will be members of a VLAN, and whether they will Tag or Untag
packets is done in the 802.1Q Static VLAN Settings screen.
Choose Configure IEEE 802.1Q VLANs on the VLANs & MAC-based Broadcast Domains
Configuration screen (under Configure VLANs & MAC-based Broadcast Domains of the System
Configuration menu) to access the IEEE 802.1Q VLANs Configuration menu:

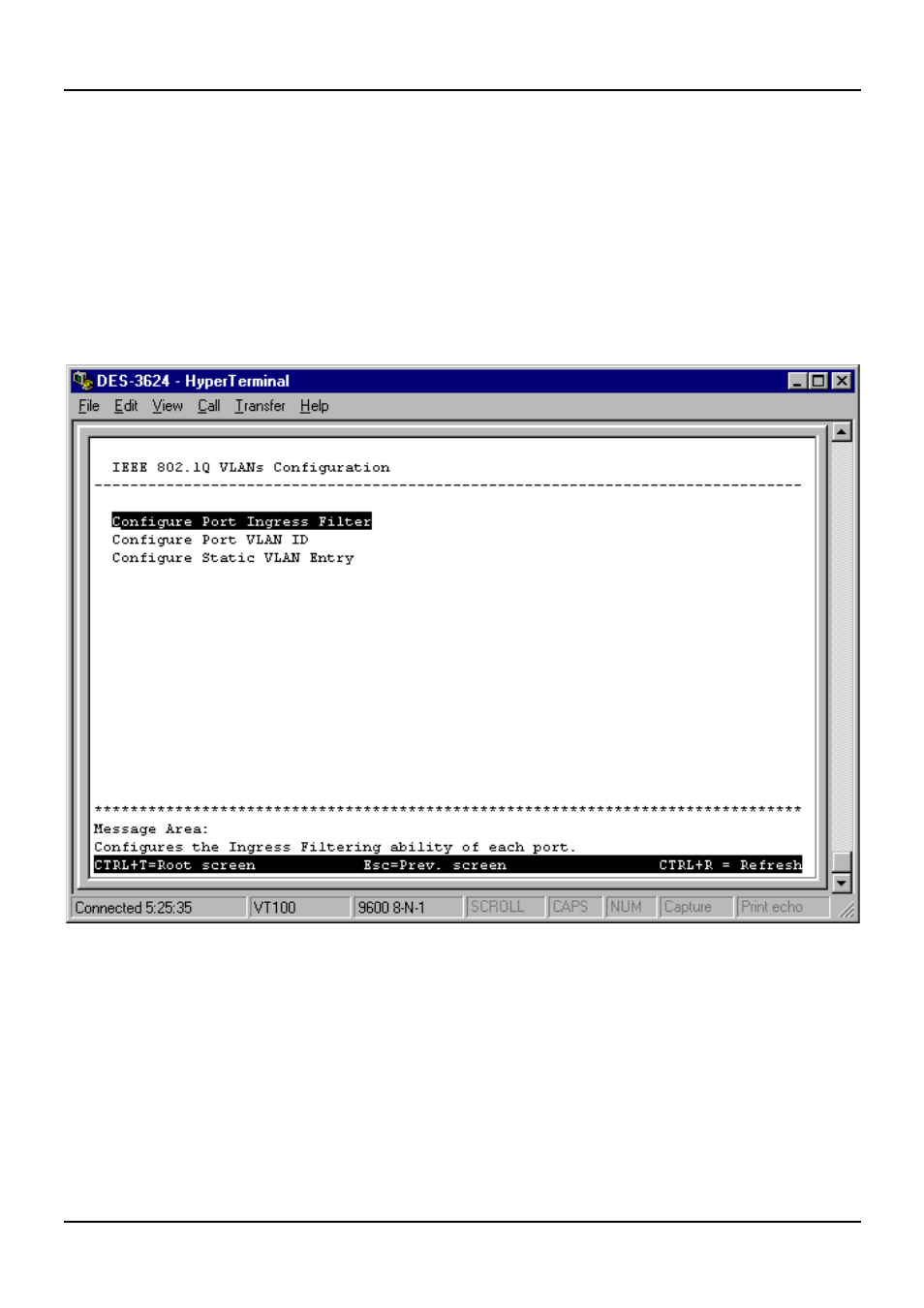

Figure 6-33. IEEE 802.1Q VLANs Configuration menu
Choose Configure Port Ingress Filter to access the first item on the menu. The following screen appears:
