D-Link DES-3624 - Manual (Page 121)

Stackable NWay Ethernet Switch User’s Guide
Web-Based Network Management 121

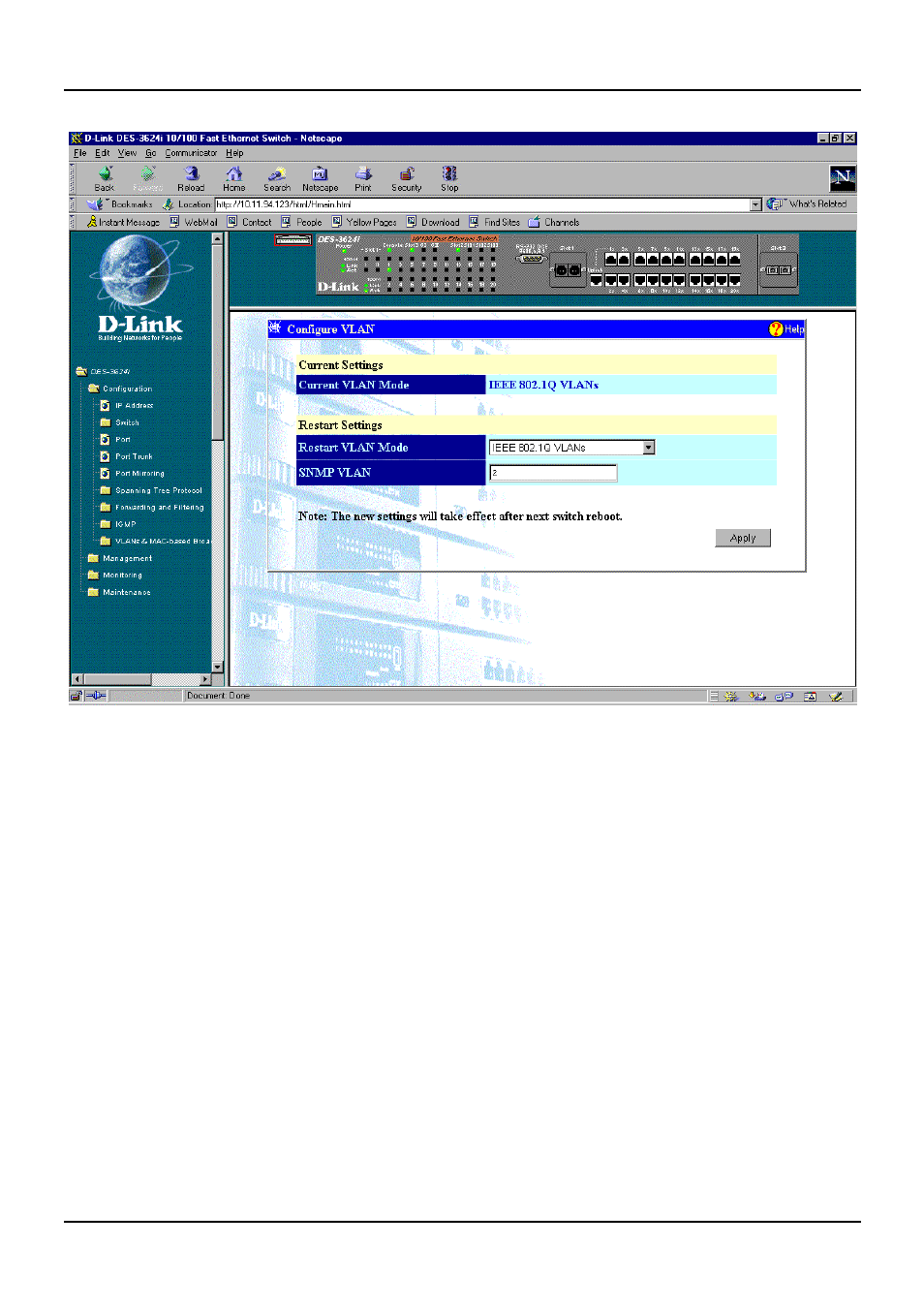

Figure 7-20. Configure VLAN window
To use one of these two modes, select MAC-based Broadcast Domains or IEEE 802.1Q VLANs under Restart
VLAN Mode--otherwise, leave the setting at Disabled. Then specify the VLAN ID number in the SNMP
VLAN field and click Apply. The SNMP VLAN ID sets up a VLAN for management packets.
MAC-Based Broadcast Domains
To use MAC-based Broadcast Domains, you must first create a MAC-based Broadcast Domain using the
add/remove function and then add members to the Broadcast Domain using the add/remove member function.
