D-Link DES-3624 - Manual (Page 144)

Stackable NWay Ethernet Switch User’s Guide
144 Web-Based Network Management
Change Configuration File:
♦ Use Config File Determines whether or not the Switch should download its configuration file the
next time it is booted.
♦ Config File Name The path and configuration name on the TFTP server.
Save Settings To TFTP Server

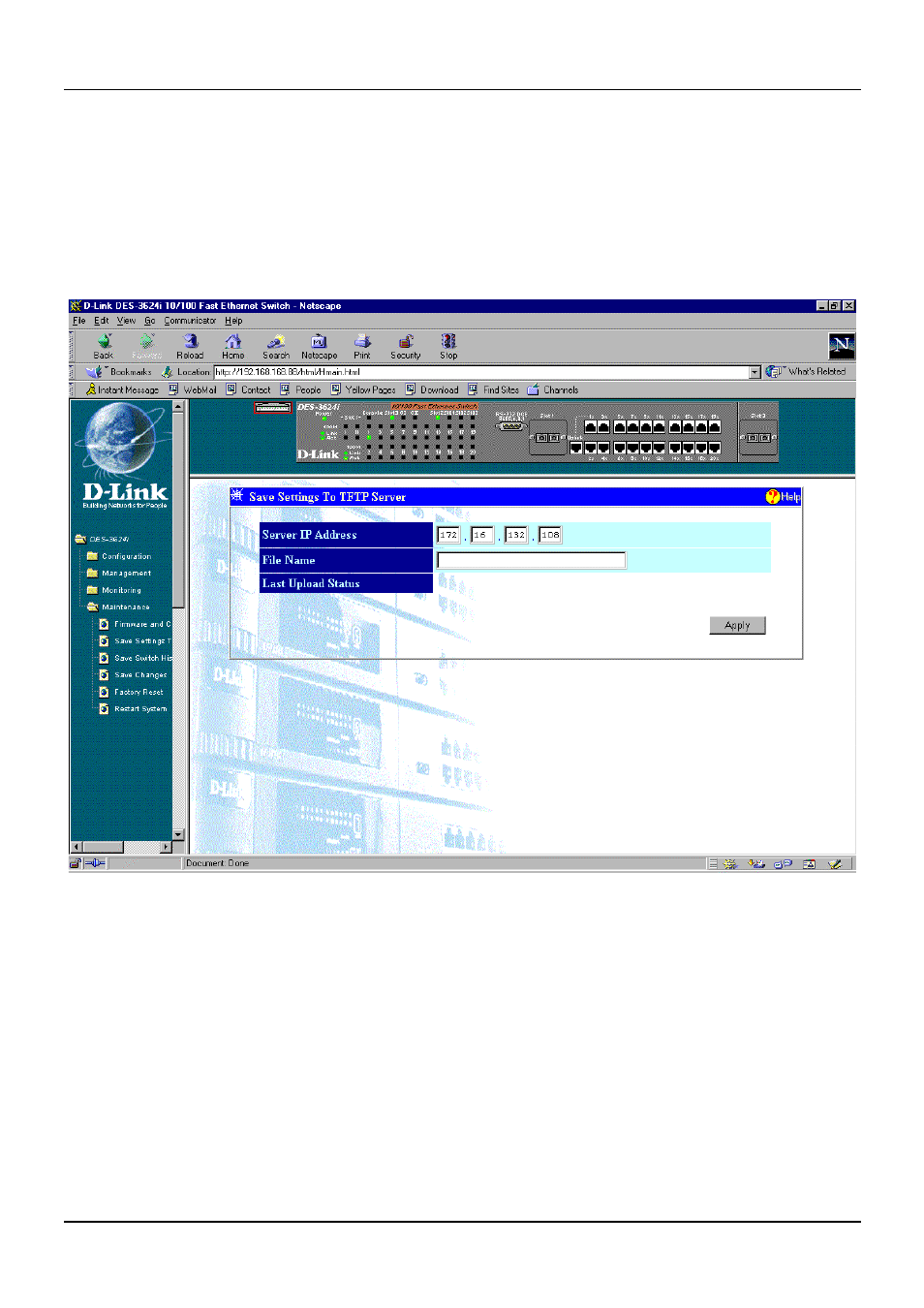

Figure 7-42. Save Settings To TFTP Server window
To upload a configuration file, enter the Server IP Address where the configuration file is located and
the File Name and file path. Then click the Apply button.
The information is described as follows:
♦ Server IP Address The IP address of the TFTP server where the configuration file is.
♦ File Name The path and configuration name on the TFTP server.
♦ Last Upload Status Shows whether the attempt to upload software was successful or not by
displaying either “Success” or “Failed.”
