Stackable NWay Ethernet Switch User’s Guide
80 Using the Console Interface

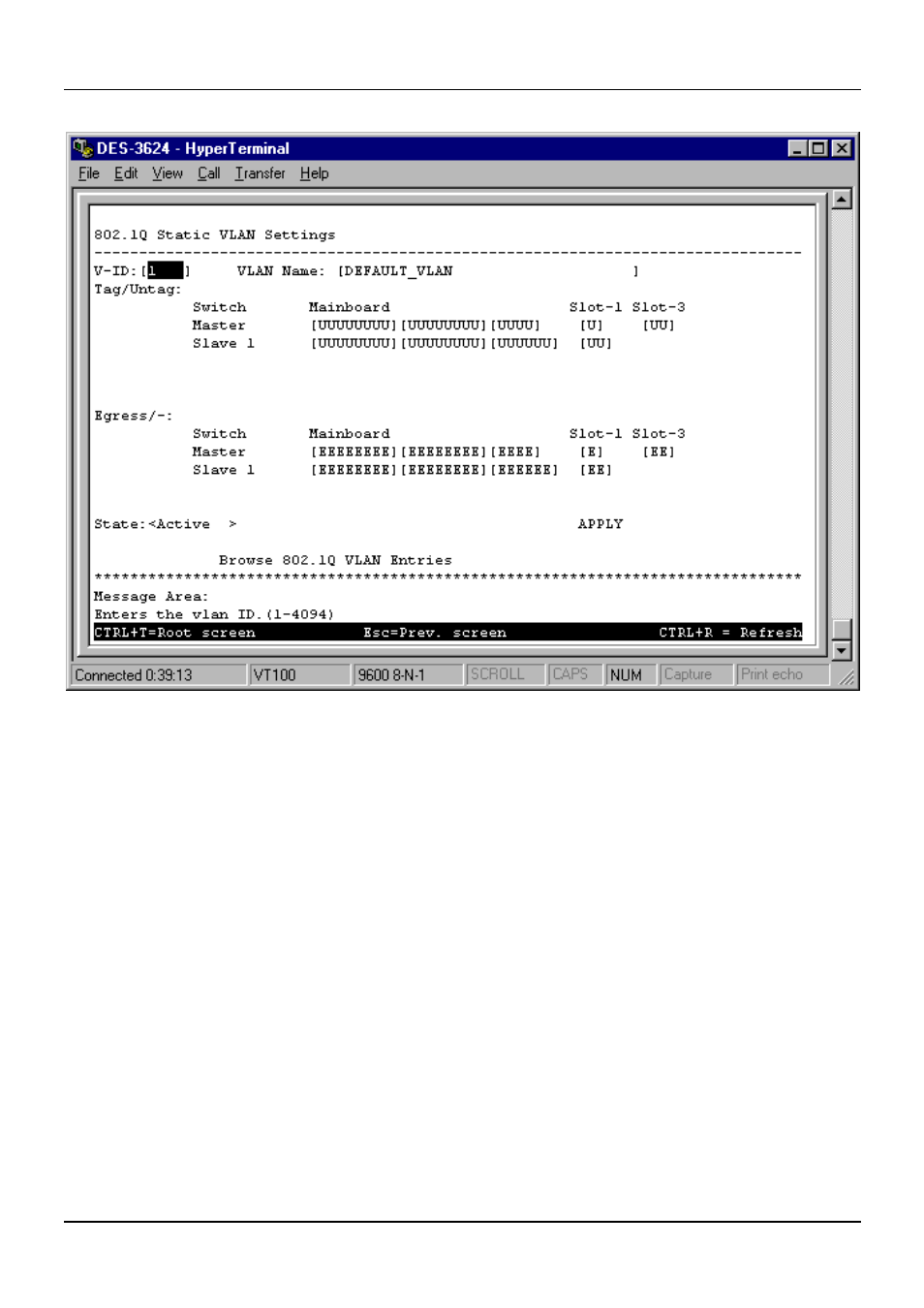

Figure 6-36. 802.1Q Static VLAN Settings screen
The fields you can set are:
♦ V-ID Enter a VLAN ID from 1 to 4094. This is the VLAN that will be defined on this screen.
♦ VLAN Name Description of the VLAN.
♦ Tag/Untag Toggle between “T” for tag and “U” for untag for each port.
♦ Egress Position the cursor over the dash “-“ representing the appropriate port number and press
bar> to select “E” for Egress, or leave the dash “-“. An E designates the specified port as a static member of
the VLAN. A dash means the port is not given VLAN membership for the VID entered above.
♦ State Toggle between Active and Inactive.
Choose Browse 802.1Q VLAN Entries at the bottom of the 802.1Q Static VLAN Settings screen to access
the following screen:
