Stackable NWay Ethernet Switch User’s Guide
Unpacking and Setup 15

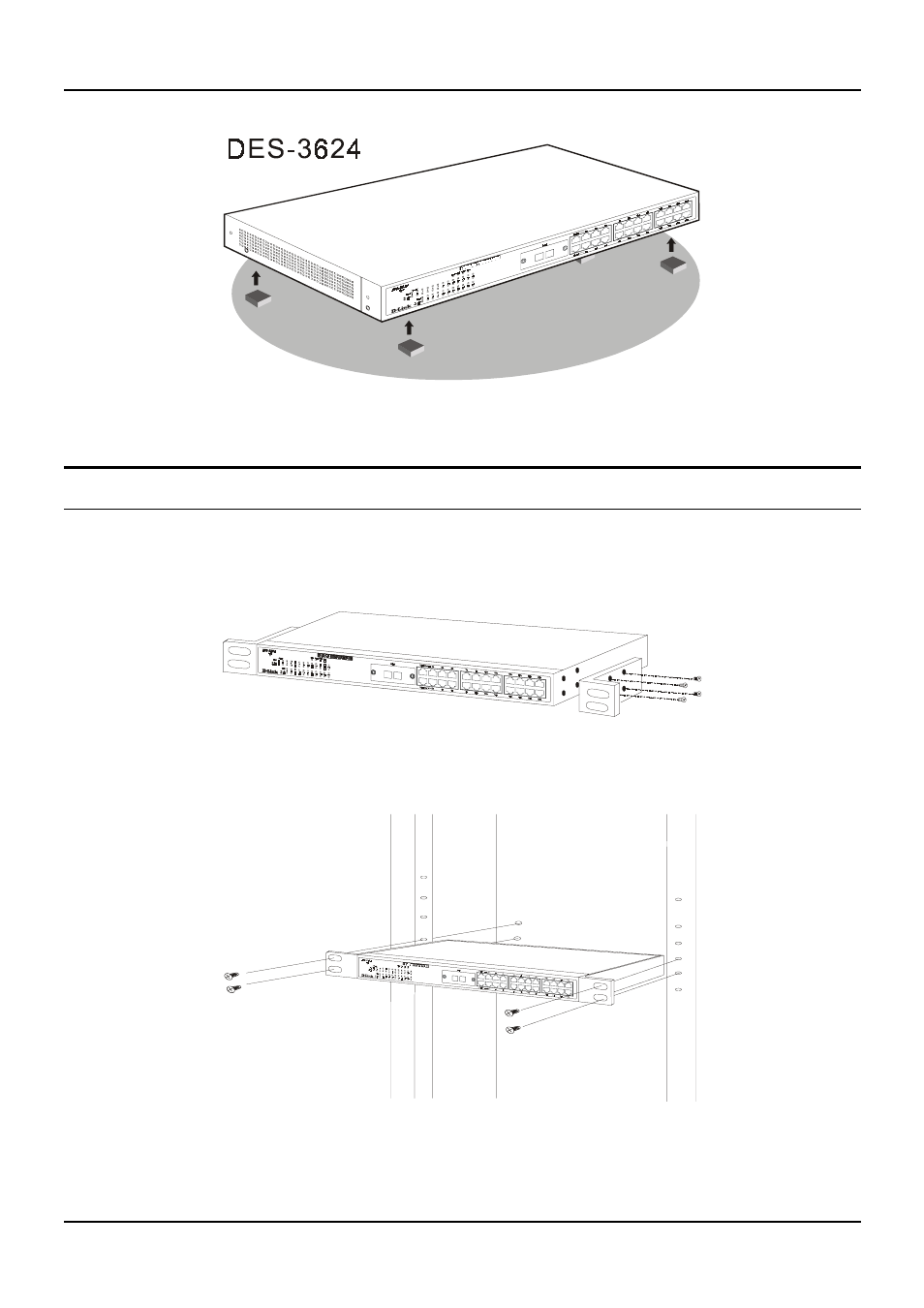

Figure 2-1. Switch installed on a Desktop or Shelf
Rack Installation
The Switch can be mounted in an EIA standard size, 19-inch rack, which can be placed in a wiring closet with
other equipment. To install, attach the mounting brackets on the switch’s front panel (one on each side) and
secure them with the screws provided.
Figure 2-2A. Attaching the mounting brackets to the Switch
Then, use the screws provided with the equipment rack to mount the Switch in the rack.
Figure 2-2B. Installing the Switch in an equipment rack
