Rotational Vacuum Concentrator RVC 2-33 IR
8 Maintenance and service
62
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
Translation of the original operating manual
• Remove the rotor shaft incl. magnet coupling.

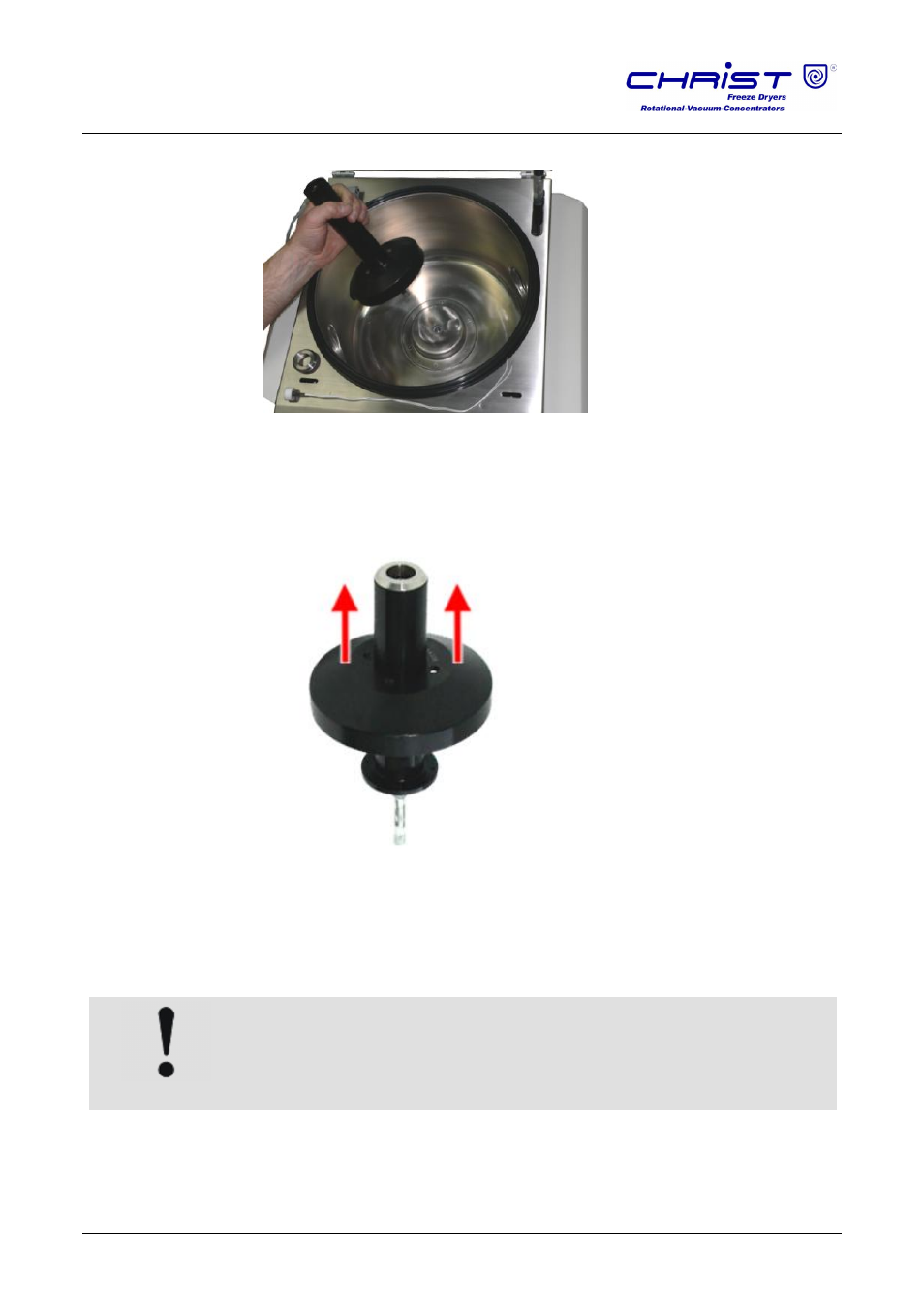

Fig. 58: Removing the rotor shaft incl. magnet coupling
• Remove the four fastening screws on the upper side of the magnetic
coupling using the L-key Torx TX15.
• Remove the magnetic coupling from the rotor shaft.
Fig. 59: Removal of the magnet coupling on rotor side
Installation of the rotor shaft and the magnet coupling on rotor side
• Clean the rotor chamber, the rotor shaft and the magnet coupling with
cleaning agent or a disinfectant.
CAUTION
Ensure that no cleaning agent or disinfectant gets into the opening at the
bottom of the rotor chamber.
This can lead to irreparable damage at the motor.
