Rotational Vacuum Concentrator RVC 2-33 IR
5 Set-up and connection
30
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
Translation of the original operating manual
Pos: 101 /20 0 Ch rist/3 70 RVC-BA (S TANDARDMODULE) /05 0 Aufstell ung und Anschlus s/05 0-0 060 Anschl uss vo n Vaku ump um pe u nd/o der Kühlfall e @ 2 5\m od_ 140 498 5088 297 _68 .docx @ 1 8706 5 @ 2 @ 1
5.6
Connection of a vacuum pump and/or a cooling trap
In order to withdraw and condense the vapours that are formed, the RVC
can be connected with further components.
Pos: 102 /01 0 Univ ersal mod ule/L eerz eile @ 0\m od_ 120 211 624 450 0_0. docx @ 11 4 @ @ 1
Pos: 103 /20 0 Ch rist/3 71 RVC-BA (PROJEK TE)/RVC 2- 33 IR /05 0 Aufst ellung und Anschlus s/05 0-0 060 -00 10 A bpu mpe n de r Dä mpf e üb er Vak uum pu mpe RVC 2-3 3 IR @ 31\ mod _14 074 840 669 61_ 68.d ocx @ 209 056 @ 3 @ 1
5.6.1
Withdrawal of the vapours by a vacuum pump
The vapours are withdrawn by a vacuum pump, e.g. the vacuum diaphragm
pump for chemical applications”MZ 2C” or “MD 4C”, followed by
condensation in a liquid-cooled emission condenser.
This application is suitable for low-boiling samples containing solvents. The
vacuum pump must be connected to the RVC. The connector of the stop
valve must be plugged into the socket on the back of the unit.
1
RVC
2
Vacuum sensor
3
Stop valve
4
Vacuum hose
5
Vacuum pump

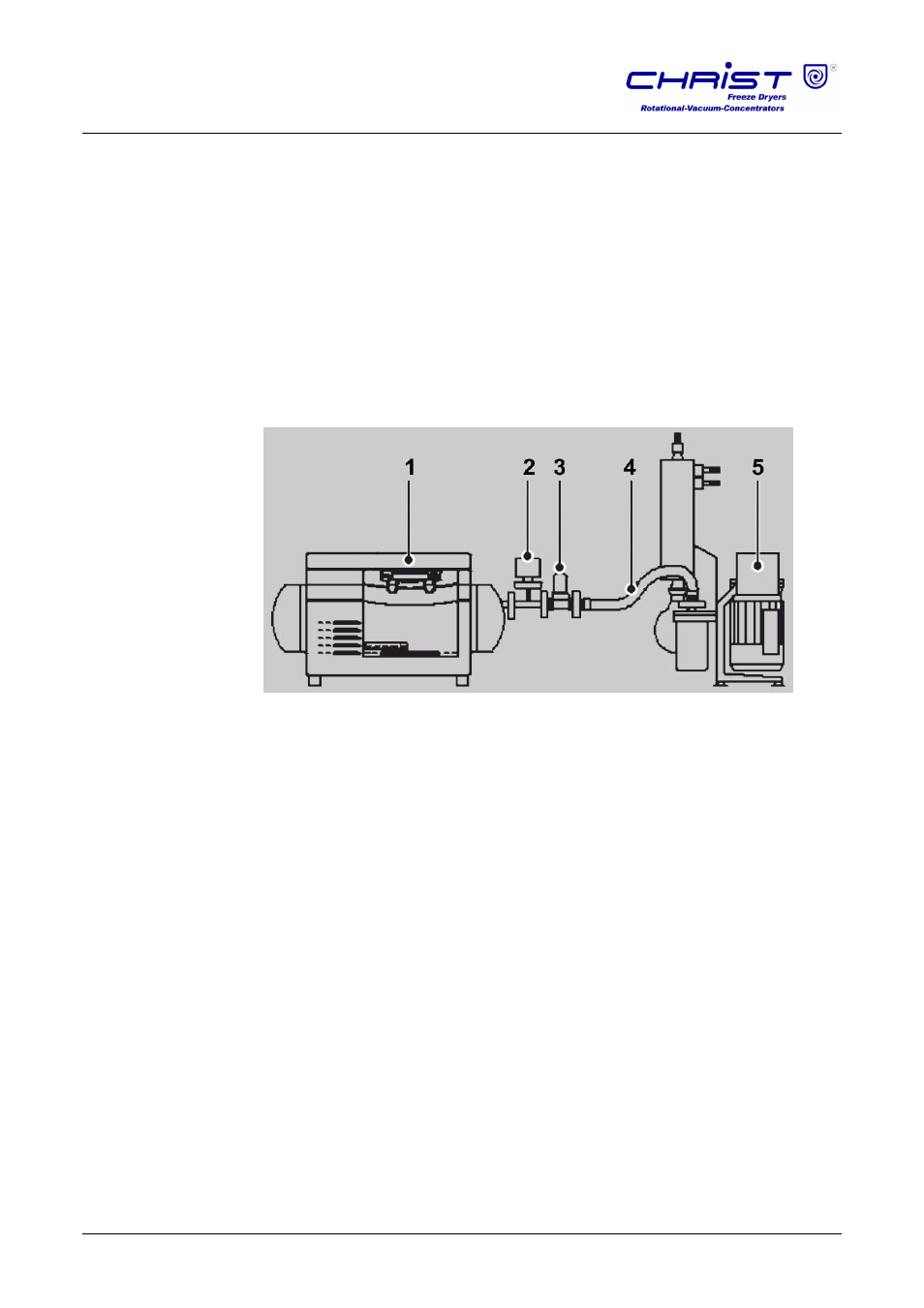

Fig. 9: Combination of the RVC with a vacuum pump and a stop valve
