Rotational Vacuum Concentrator RVC 2-33 IR
6 Operation
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
35
Translation of the original operating manual
correct incorrect

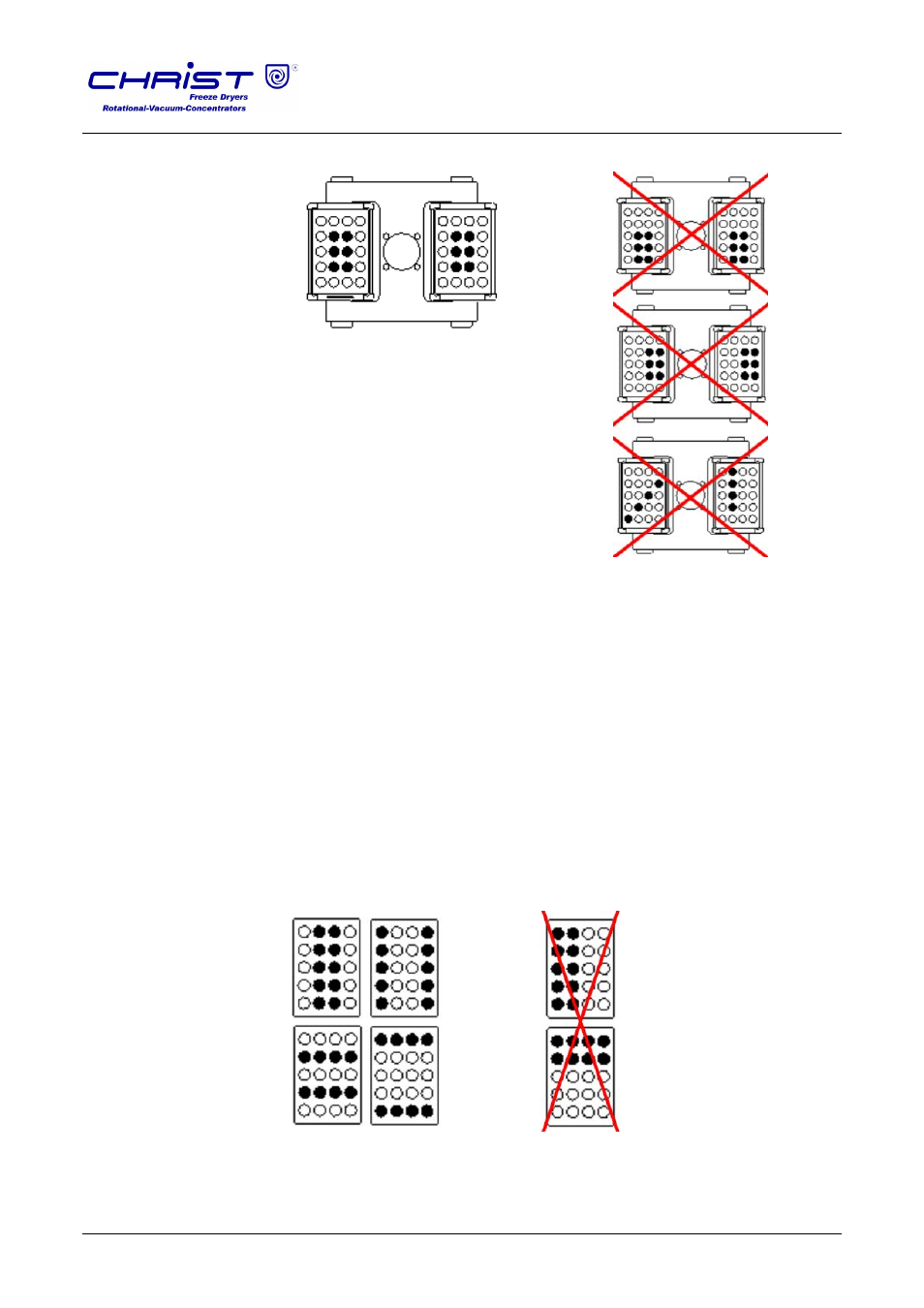

Fig. 13: Permissible loading of swing-out rotors with low capacity
Pos: 124 /01 0 Univ ersal mod ule/L eerz eile @ 0\m od_ 120 211 624 450 0_0. docx @ 11 4 @ @ 1
Pos: 125 /20 0 Ch rist/3 70 RVC-BA (S TANDARDMODULE) /06 0 Betri eb/0 60- 004 0-0 030 -00 10 Gefä ße @ 2 5\mo d_1 404 985 119 757 _68. docx @ 18 720 5 @ 4 @ 1
6.4.3.1 Tubes
• Load the tubes outside of the rotational vacuum concentrator. Solvents
in the buckets or rotor blocks cause corrosion.
• Fill the tubes carefully and arrange them according to their weight.
• Follow the safety instructions and hazard warnings(see chapter 3 -
"Safety")!
Pos: 126 /01 0 Univ ersal mod ule/L eerz eile @ 0\m od_ 120 211 624 450 0_0. docx @ 11 4 @ @ 1
Pos: 127 /20 0 Ch rist/3 70 RVC-BA (S TANDARDMODULE) /06 0 Betri eb/0 60- 004 0-0 030 -00 20 A ufna hme blöcke @ 2 5\m od_ 1404 985 120 658 _68. docx @ 18 721 9 @ 4 @ 1
6.4.3.2 Rotor blocks
• Always load the rotor blocks symmetrically with the same accessories
and fill to avoid imbalance.
correct incorrect
Fig. 14: Symmetrical loading of the rotor blocks
