6 Operation
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
33
Translation of the original operating manual
NOTE
Depending on the version, up to three rotors can be pushed onto the rotor
shaft at the same time.
• Follow the safety instructions and hazard warnings (see chapter 3 -
"Safety")!
correct incorrect

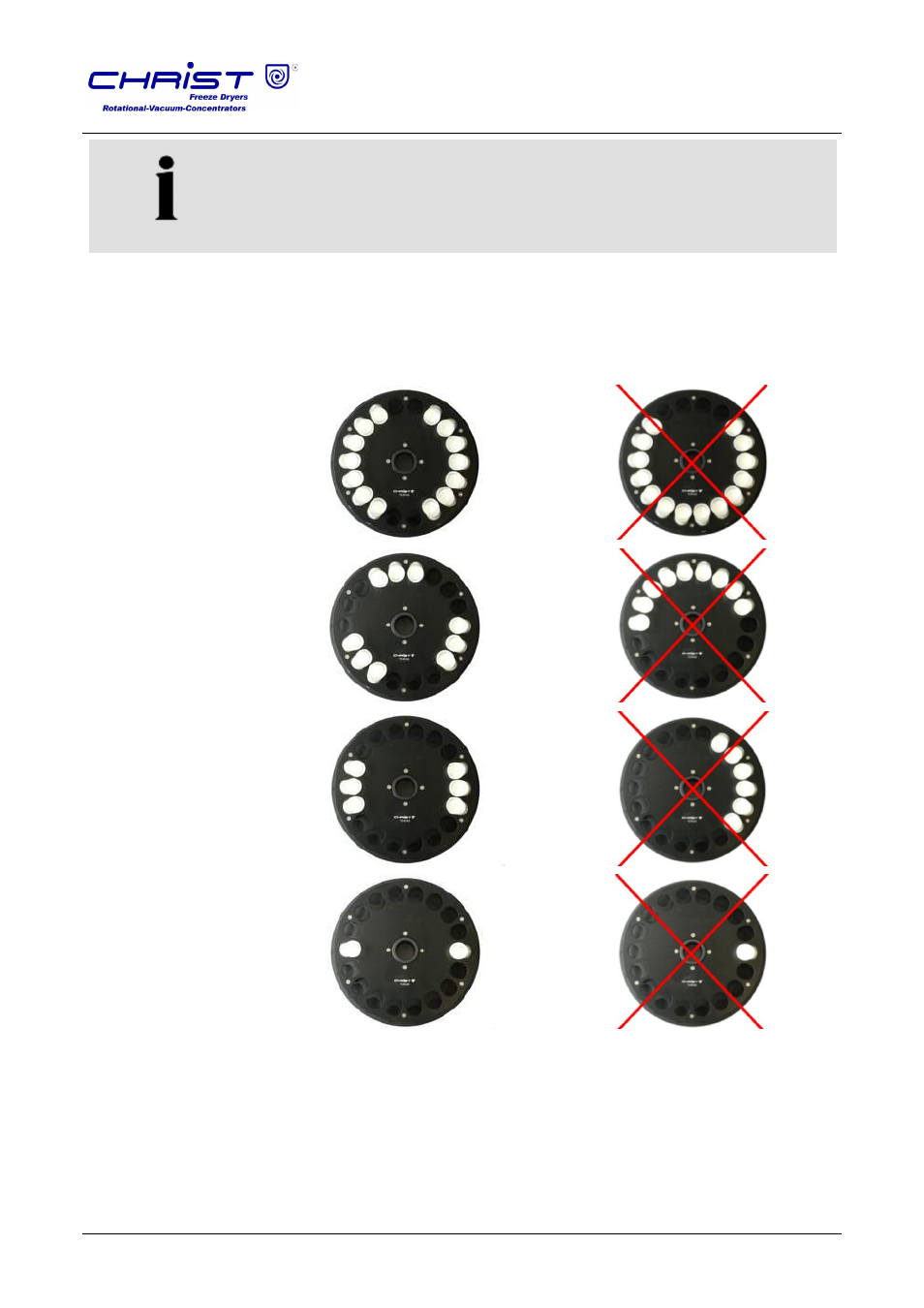

Fig. 11: Symmetrical loading of angle rotors
