Rotational Vacuum Concentrator RVC 2-33 IR
7 Malfunctions and error correction
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
55
Translation of the original operating manual

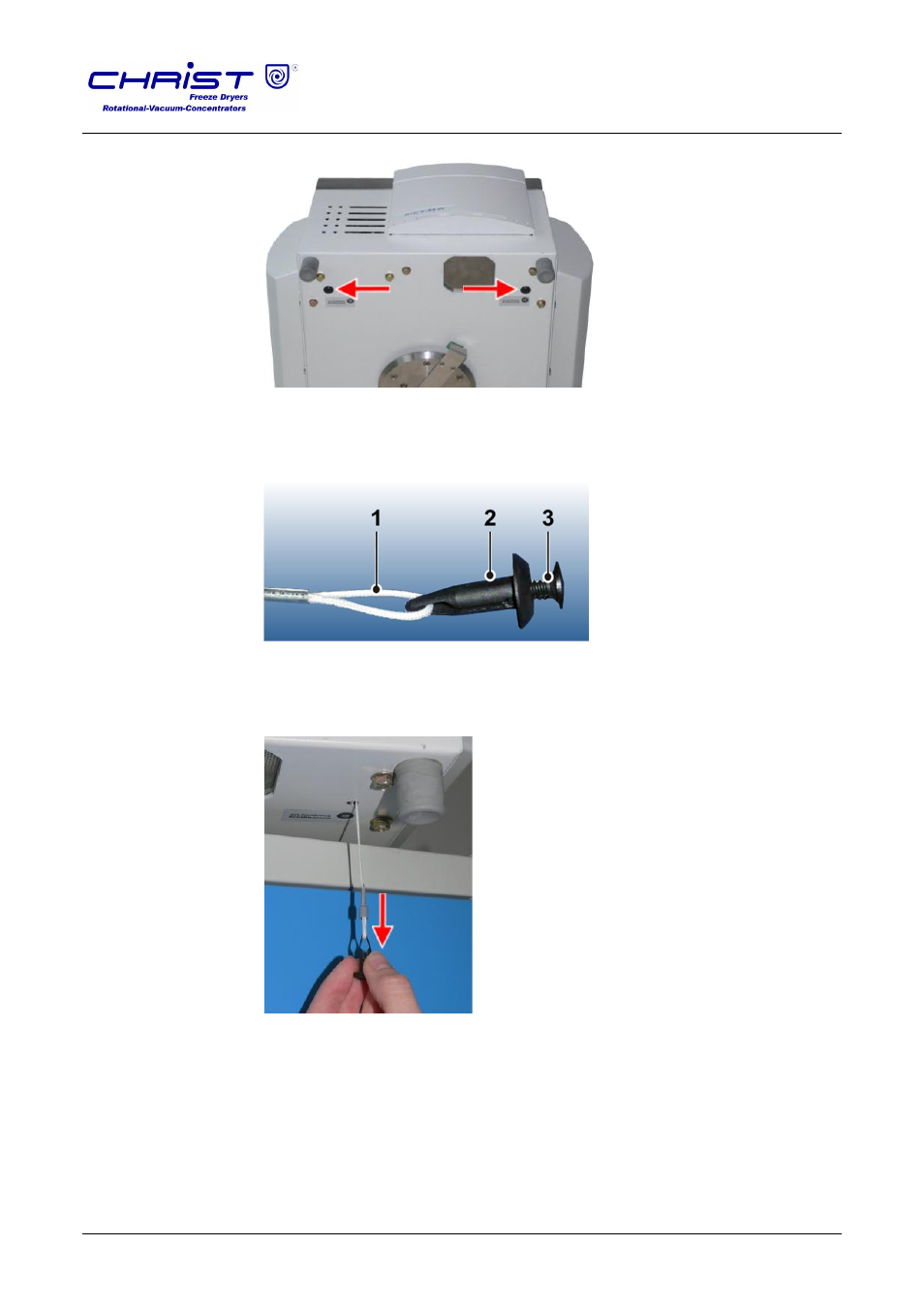

Fig. 45: Position of the plastic screws of the emergency lid release
• Remove the stoppers, e.g. with a screwdriver. The stoppers are
connected to a mechanical release string (see the illustration below).
1
Release string
2
Stopper
3
Plastic screw
Fig. 46: Release string with stopper and screw
• Pull the stoppers with their strings vertically downwards until the lid
locks unlock. Unlock the right and left lock in this way.
Fig. 47: Unlocking the lid locks
• Open the lid.
• After the emergency lid release has been used, reinstall both stoppers
and strings in the reversed order.
• Try to locate the error source and contact the service if necessary.
