Rotational Vacuum Concentrator RVC 2-33 IR
8 Maintenance and service
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
61
Translation of the original operating manual

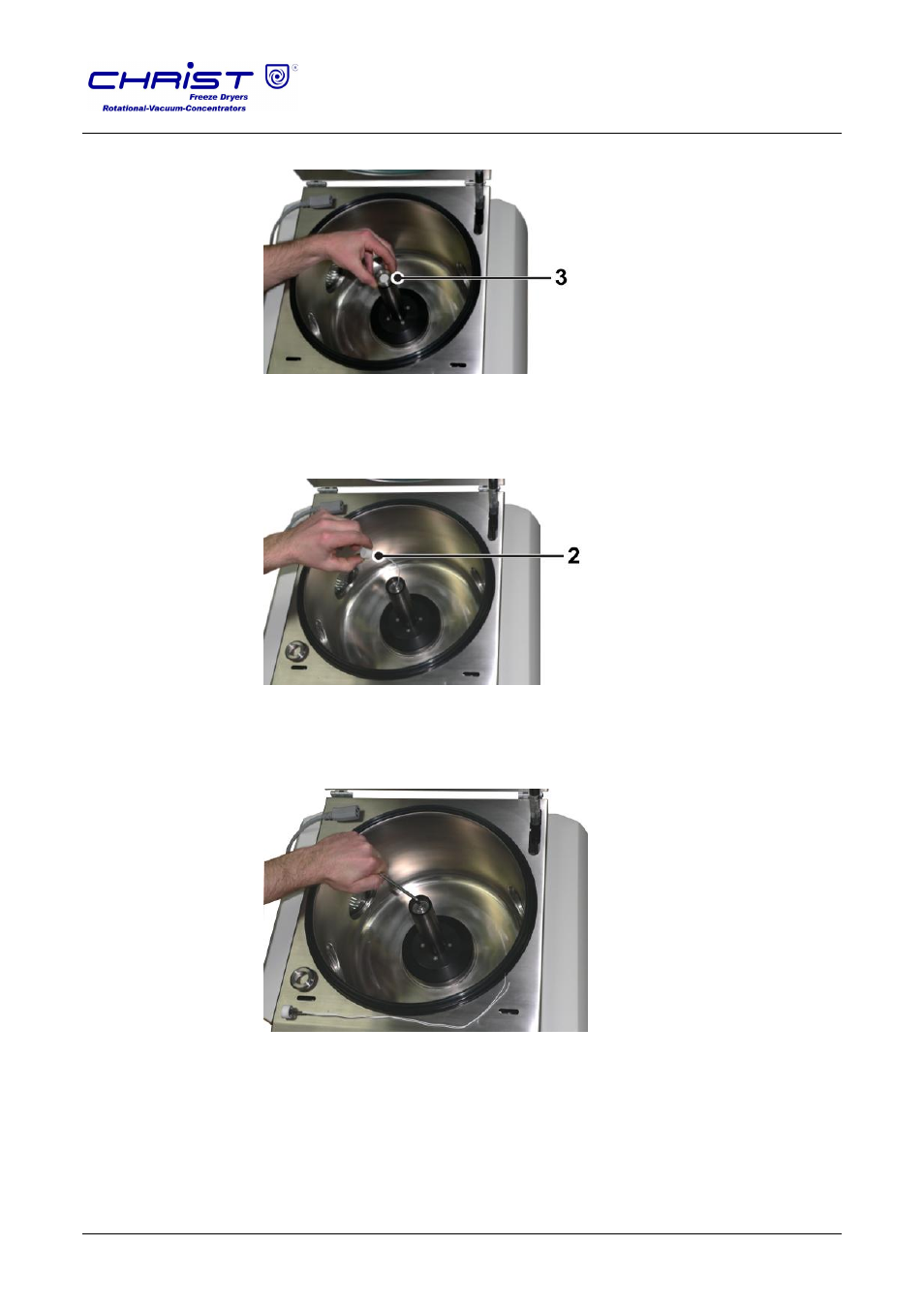

• Remove the cap.
Fig. 55: Removing the cap
• Screw out the electronic temperature measurement system of the
shaft. Pay attention to the corresponding cables.
Fig. 56: Removing the electronic temperature measurement system
• Loosen the rotor shaft incl. magnetic coupling using the hexagon socket
wrench (size 5).
Fig. 57: Loosening the rotor shaft incl. magnetic coupling
