Rotational Vacuum Concentrator RVC 2-33 IR
5 Set-up and connection
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
29
Translation of the original operating manual
Pos: 99 / 200 Christ /37 1 RVC-BA (PROJEKTE) /RVC 2-3 3 IR/ 050 Au fstellu ng u nd Ans chluss/ 050 -00 50 Optio n: Dr uckst eue rventil und Vakuu mm essson de RVC 2-3 3 IR @ 31\ mod _14 074 840 6654 1_6 8.d ocx @ 2090 42 @ 2 @ 1
5.5 Option: Pressure control valve and vacuum sensor
If a pressure control valve and a vacuum sensor are used, they must be
installed between the rotational vacuum concentrator and the vacuum
pump, and they must be connected to the marked IEC C14 connector at
the back of the unit (see chapter 2.1.1 - "Functional and operating
elements").
NOTE
Observe the installation direction of the pressure control valve!
1
Vacuum sensor
2 Pressure control valve

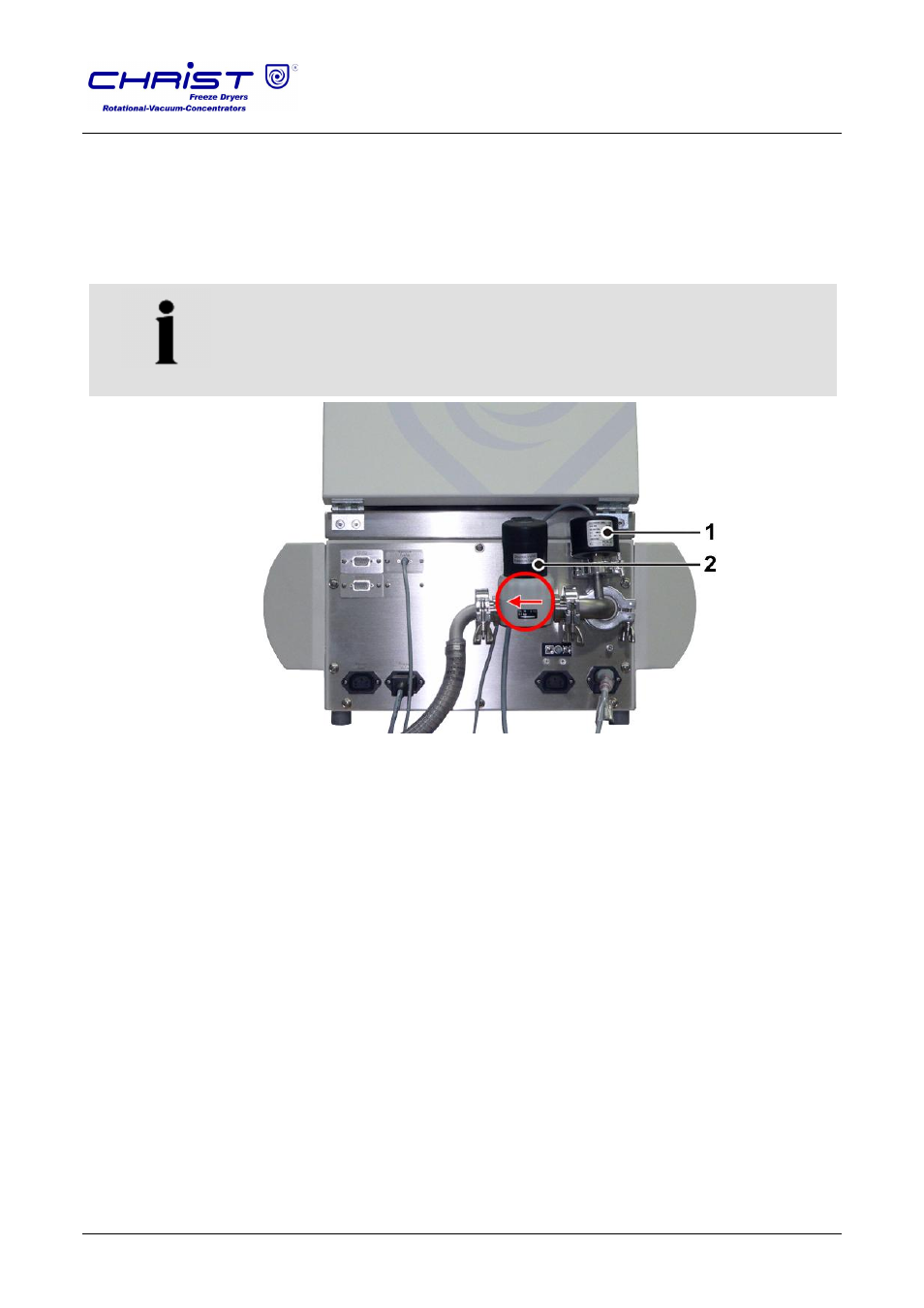

Fig. 8: Installation of the pressure control valve and the vacuum sensor
