Rotational Vacuum Concentrator RVC 2-33 IR
6 Operation
Version 08/2009, Rev. 2.1 of 02/12/2014 • sb
45
Translation of the original operating manual
Creating a new program
A new program can be created based on a fixed program template and
adapted to specific needs by changing the set values and by adding and
deleting certain sections. The control system automatically assigns a
program number to every new program.
• Select "New program" from the menu "Program administration" (see
figure) and confirm. The following message will appear:

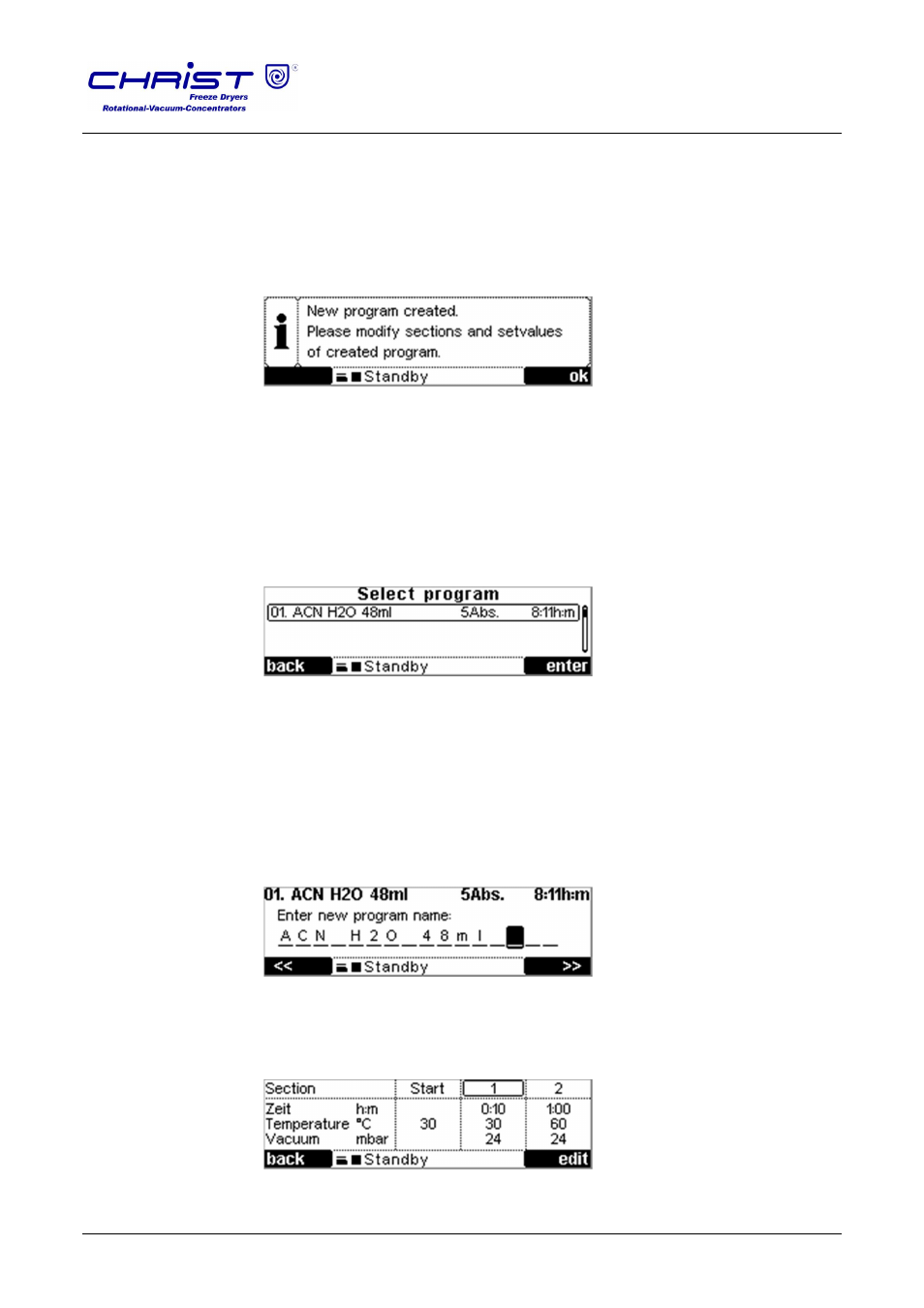

Fig. 31: Message "New program created"
• Press the right-hand function key to confirm.
• Continue as described under "Editing a program" (see below).
Editing a program
• Select "Edit program" from the menu "Program administration" (see
figure) and confirm. The program list is shown.
Fig. 32: Program list
• Select a program from the program list.It will be opened for editing.
• Open the menu "Program parameter" in order to change the program
name. Use the functions keys to position the focus in the program
name. Use the up/down keys to change the character at the current
focus position.
• At the last position of the program name, the right-hand key function
changes to "ok" to enter the program name.
Fig. 33: Changing the program name
The sections of a program can be adapted under "Edit program sections".
The set values and sections are displayed in a tabular form.
Fig. 34: Program section table
