44

Chapter 4: Using Your RapidVap

Product Service Domestic 1-800-522-7658, International 816-333-8811

RS-232 Hardware Required

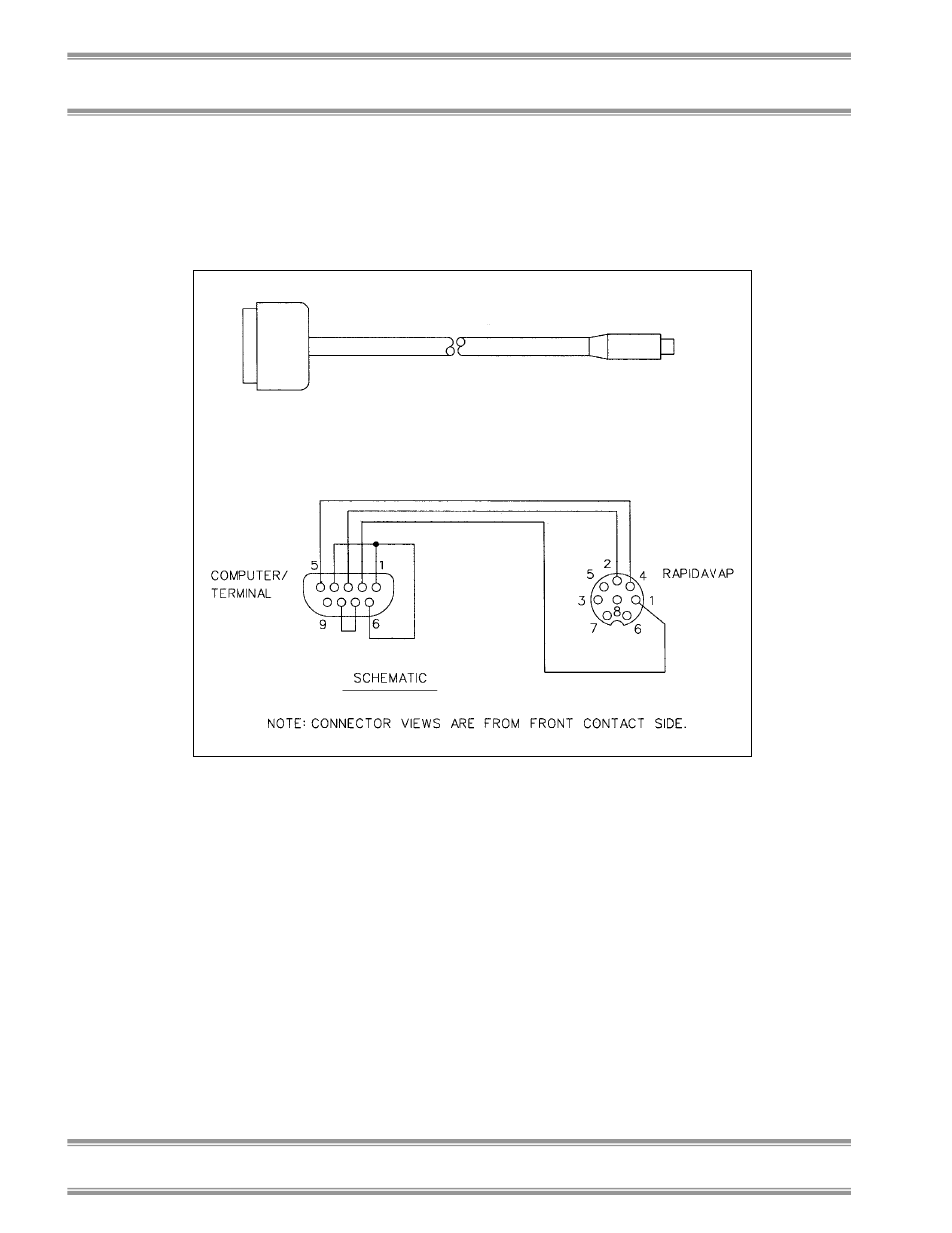

The connecting cable, Labconco #7484800 is supplied
with the unit and is wired as shown below.
