Labconco Clear Drying Chamber - Manual

Labconco Instruction Sheet 7417100, Rev A, ECO D164, 7/05 1 of 5
LABCONCO CORPORATION 8811 Prospect Ave, Kansas City, MO 64132
(816) 333-8811, Fax (816) 363-0130, (800) 821-5525
Labconco Clear Drying Chamber 7442900
7867000
Introduction
Labconco Clear Drying chambers are designed for laboratory lyophilization procedures. They
provide a means to freeze dry large samples and observe them throughout the lyophilization
process. Their operation requires that they attach to a freeze dry system. The small chamber
(Labconco part number 7442900) attaches to any FreeZone 1, 2.5, 4.5, 6, 12, or 18 Liter Freeze
Dry system. The large chamber (Labconco part number 7867000) attaches to any FreeZone 6,
12, or 18 Liter Freeze Dry system.
Installation on FreeZone 1, 2.5, and 4.5 Liter Freeze Dry systems
1. Remove the collector chamber lid and gasket that was received with the Freeze Dryer and
replace it with the base and gasket assembly supplied with the chamber.
2. Place the clear chamber on top of the base and gasket assembly.
3. Place the top with gasket assembly on top of the chamber.

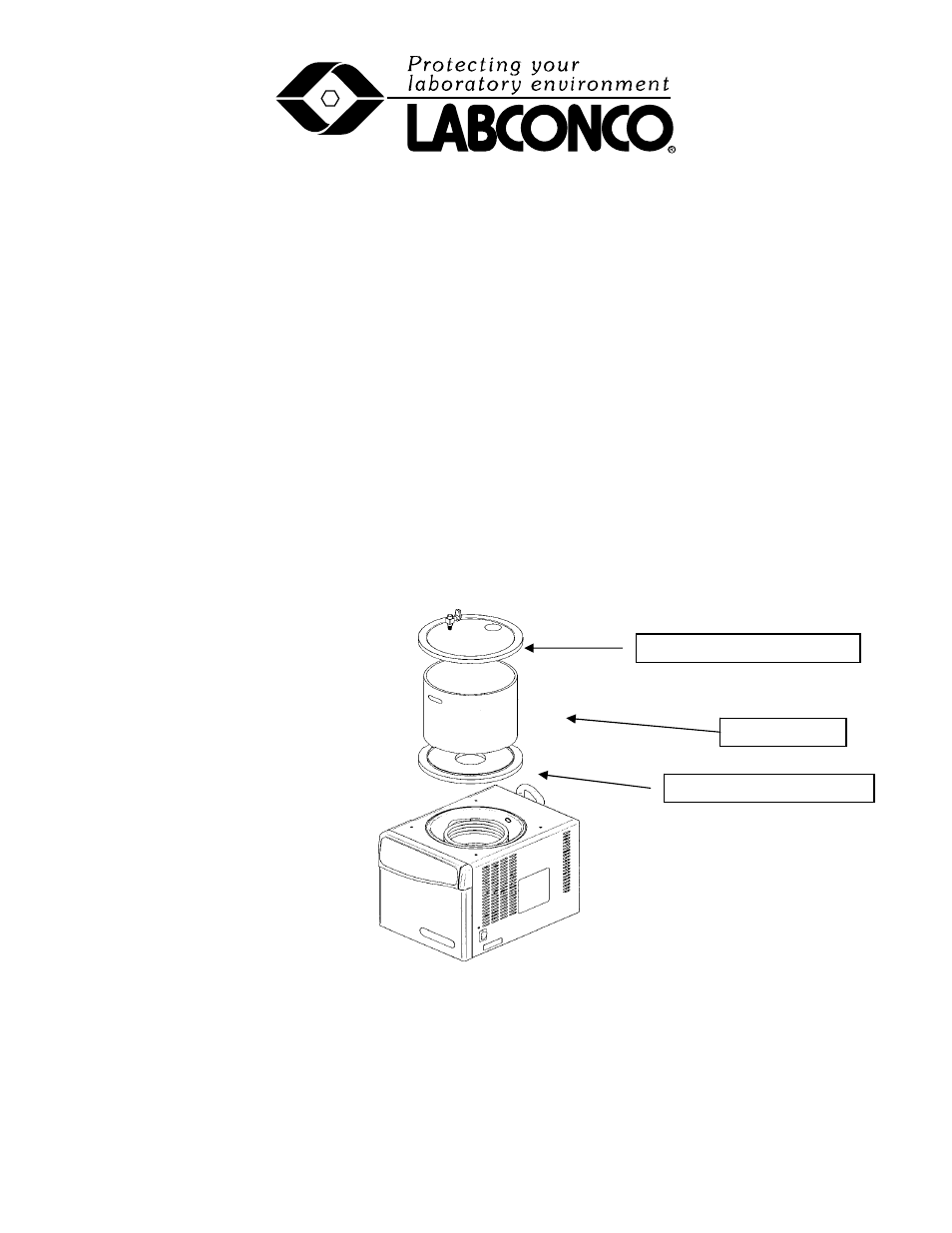

Top & Gasket Assembly
Clear Chamber
Base & Gasket Assembly
