Working with iOLM files
224 FastReporter 2
Changing Fiber Core Size (FR2-FC Mode)
Changing Fiber Core Size (FR2-FC Mode)

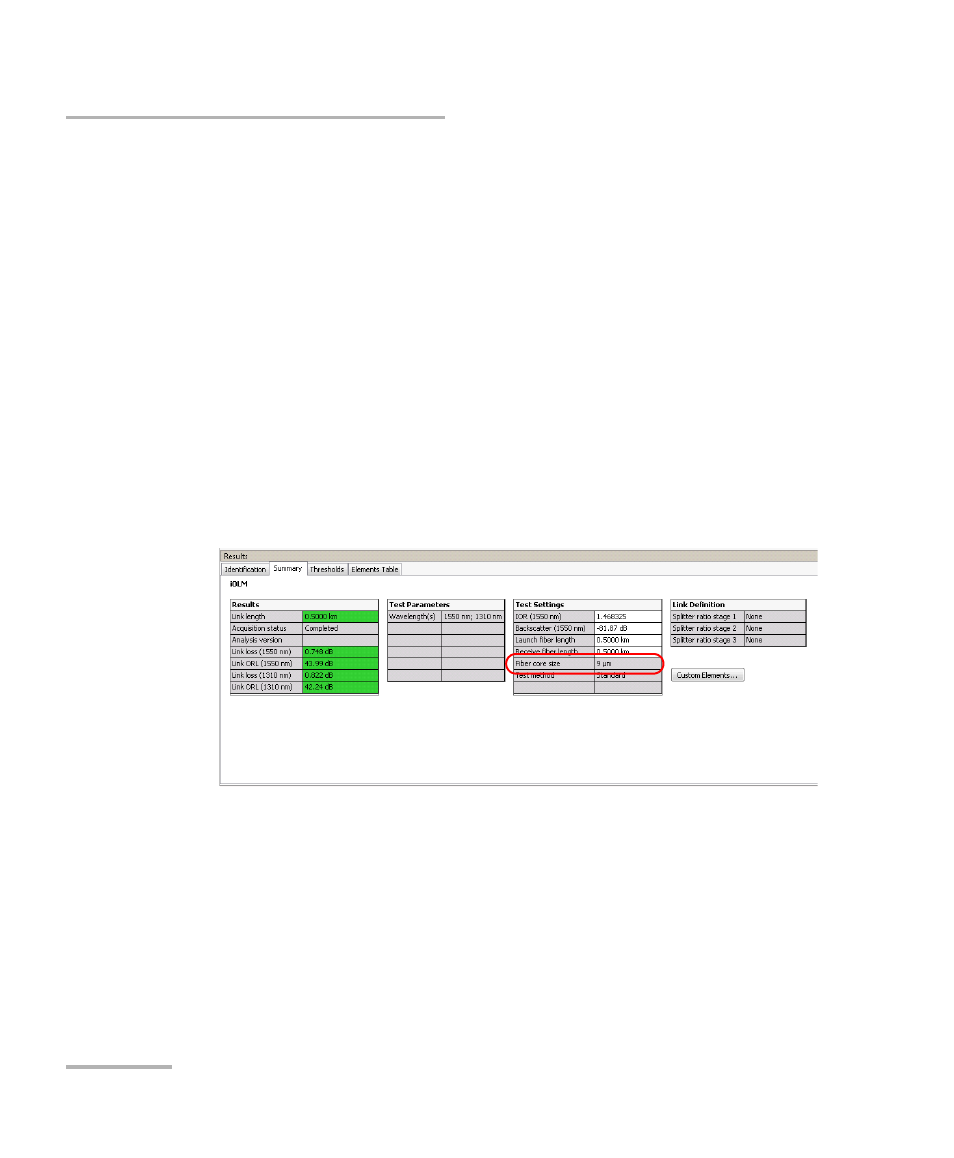

The FastReporter 2 application displays the core size of the fiber for the
selected measurement in the Test Settings table of the Summary tab.
When multiple measurements are selected and the fiber core sizes are not
similar, they are separated with a semicolon.
Note: The application allows you to change the fiber core size only for the
multimode files.
To change the fiber core size:
1. On the Measurements tab, select the multimode measurement for
which you want to modify the fiber core size.
2. From the Summary tab, select the required fiber core size in the list of
available values.
3. The application prompts you to confirm the change. Click Yes to set the
default values for result and test settings. If you click No, the fiber core
size value changes, but the default values are not applied for result and
test settings.
