Working with iOLM files
Post Processing Software 211

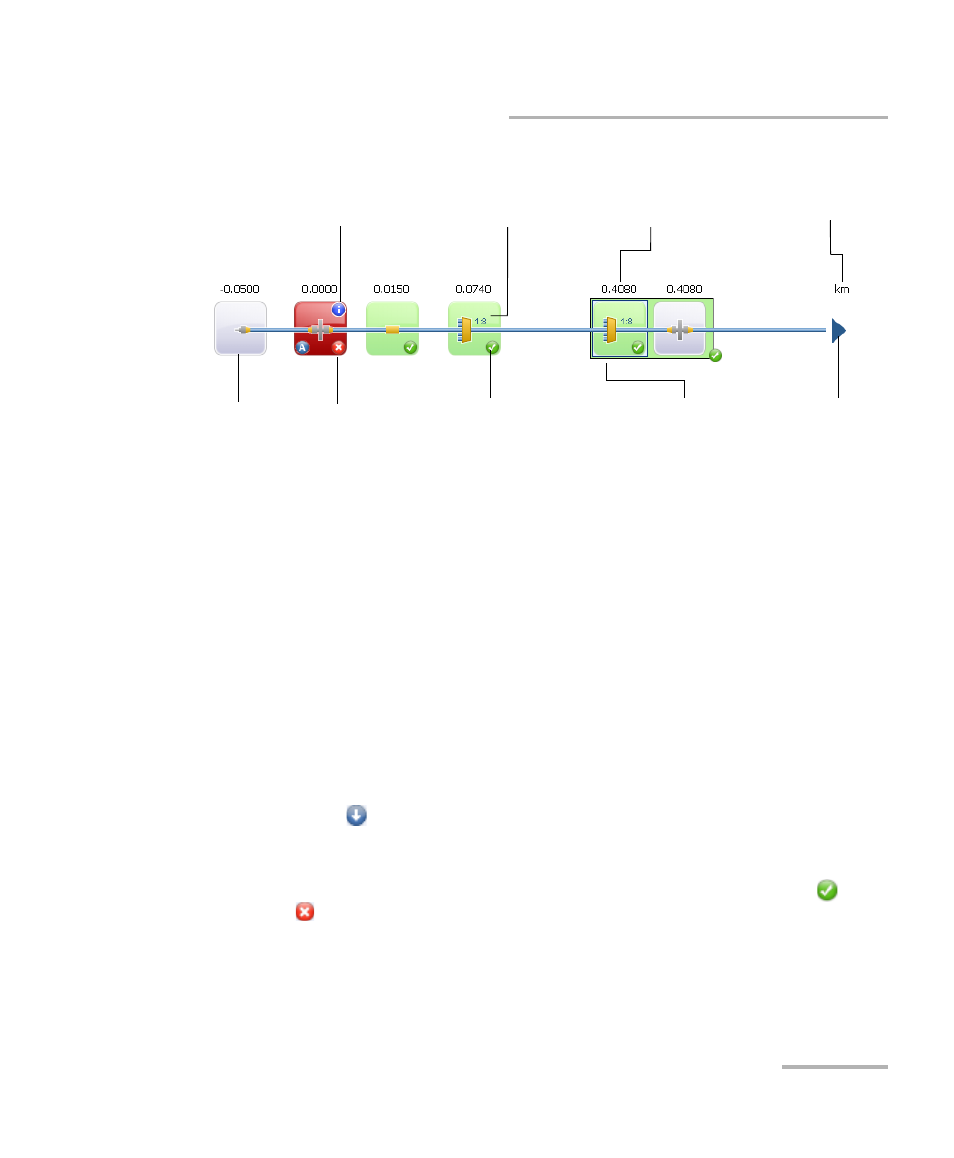

Understanding the Link View
The link composition is described below.

Element position: The distance of the element from the beginning of
the link under test.

Navigation arrow: The navigation arrow is only displayed when more
items are available on the particular side. It indicates that the you have
to scroll to view those items. This arrow can also appear on the left
side.

Selected element: The gray background represents the currently
selected element.

Letter A: The beginning of the link under test.

Letter B: The end of the link under test.
Note: An arrow ( ) icon is displayed on the element if the start and the end of
the link is represented by the same element.

Element Pass/Fail: The status of the element whether it is pass ( ), fail
( ), or unknown. If you are viewing multiple measurements in Cable
view (see Managing Multiple Measurements on page 213 for details),
the status depends on the statuses of the corresponding matched
elements. If at least one of the elements has a fail status, then the cable
combined element status is also fail.
Selected
Element
Diagnostics Icon
Element
Pass/Fail
Splitter ratio
Element
Fail Icon
Distance Unit
Navigation
Arrow
Element Position
Pass/Fail
not tested
