11 Working with iOLM files
Accepted File Formats
FastReporter 2 lets you work with measurement files saved in the following
formats, but does not necessarily permit all operations on them.

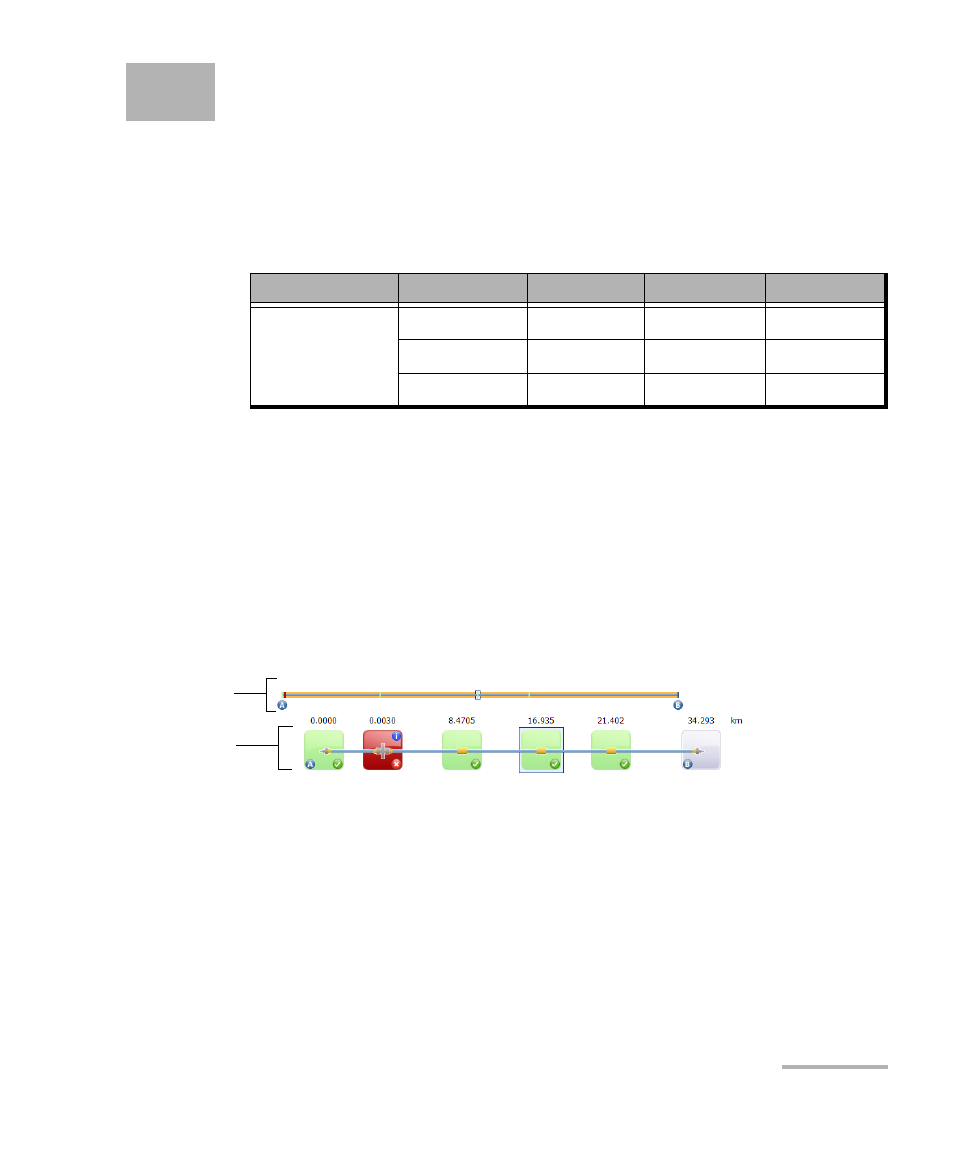

Understanding the Link View
The iOLM Link View is an intuitive representation, which combines several
measurement results and values into a single view.
The link view is divided into two different regions.
Link overview
Link composition
In the link overview, you can quickly see the status for each element with
the corresponding color code:
Red: The element is fail.
Green: The element is pass.
Blue: The element is not tested for Pass/Fail.
File format
File extension
Display
Modification Reanalysis
iOLM .iolm
X
X
X
.iolmcfg
X
X
.iolmbdr
X
X
X
Link Overview
Link
Composition
