EXFO FIP-425B/435B Fiber Inspection Probe and ConnectorMax2 Mobile User Manual
Page 54
Inspecting Fiber Ends
46
FIP-400B
Inspecting Fiber Ends

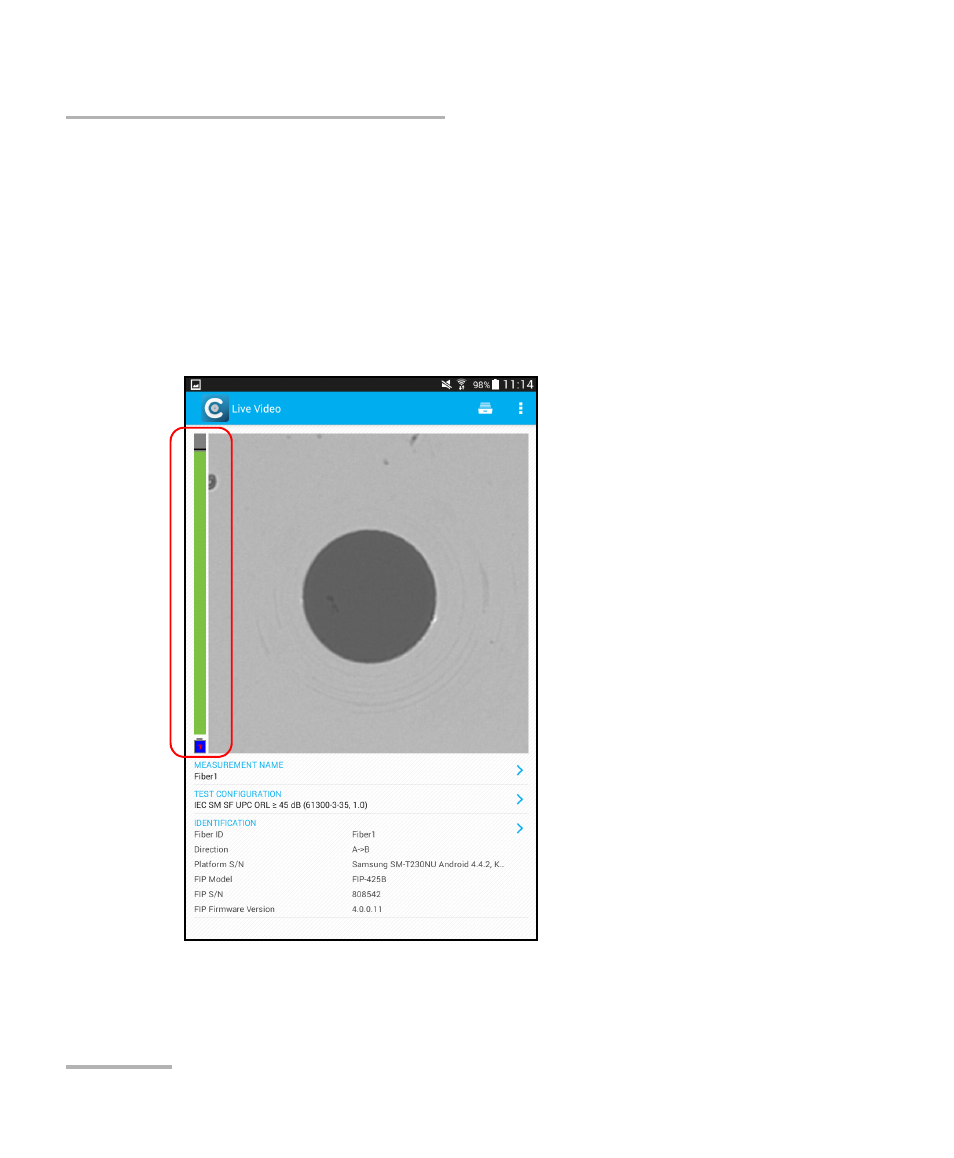

The focus indicator, which is displayed in the left part of the main window,
indicates whether the current view is optimized for a capture. A green
indicator shows a picture that can be captured and analyzed. Analysis will
be more difficult with a yellow indicator, and impossible with a red
indicator. A vertical black bar displays the peak focus level.
Note: The peak focus level is shown only when the auto focus sequence is
complete.
For more information on analysis, see Analyzing Captures on page 56.
