Led indicators – EXFO FIP-425B/435B Fiber Inspection Probe and ConnectorMax2 Mobile User Manual
Page 12
Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile
4
FIP-400B
LED Indicators
LED Indicators

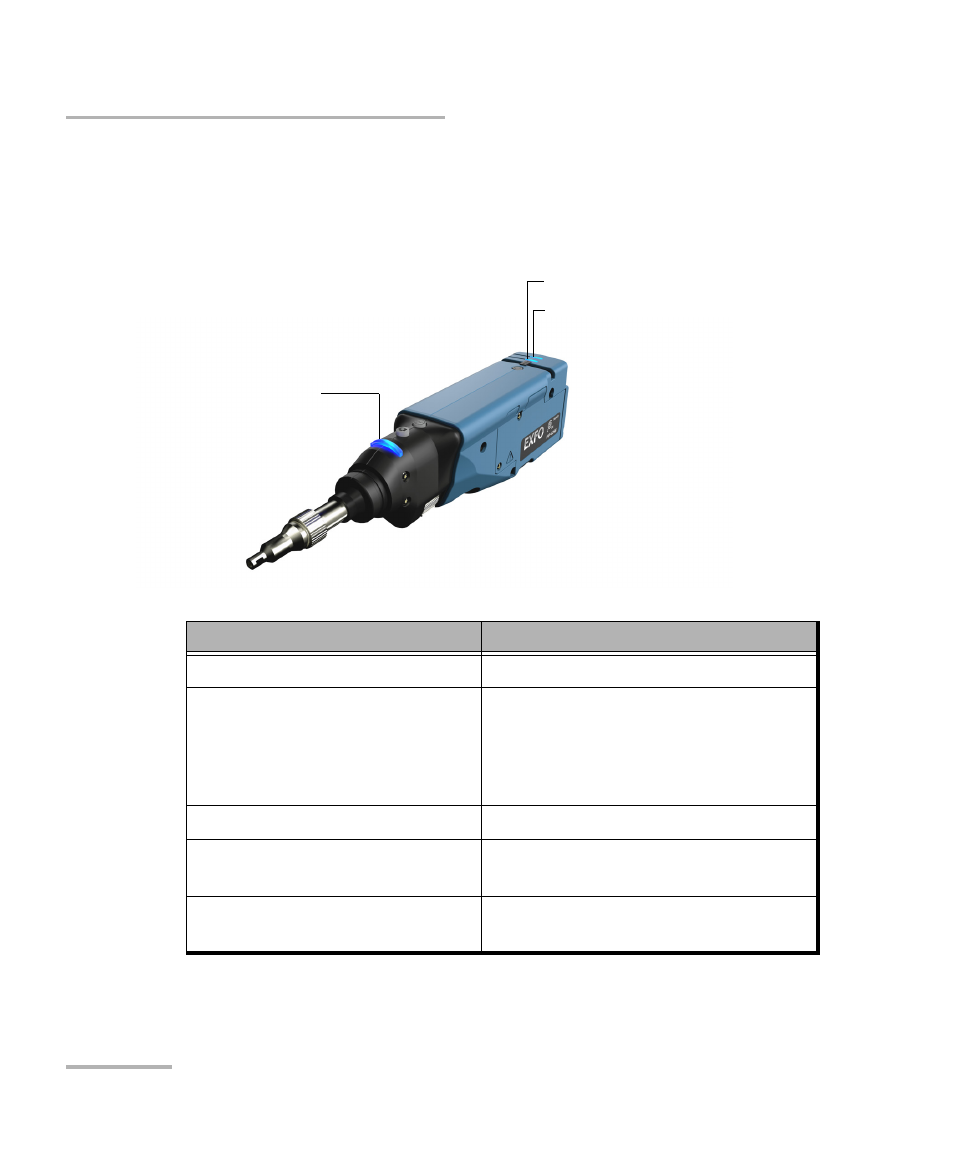

The LED located on the probe gives you information about the probe or the
analysis results.
Status LED
Status
Flashing blue
Processing in progress
Flashing red
There is a problem with the probe.
Follow the instructions on screen.
The auto focus is in timeout
There is an analysis error
Blue
The probe is ready and operational
Red
In Capture mode, current FIP result
status is Fail
Green
In Capture mode, current FIP result
status is Pass
Status LED
Battery LED
Wi-Fi LED
