Using Markers
Using Markers
You can use markers (A and B) to view the position and level of an event
on a trace.
Note: If you do not see the markers on your unit, they are probably hidden
(see Setting General OTDR Parameters on page 24).
To move a marker:
1. Press Menu, select OTDR, and then press Enter.
2. Use the left/right function arrows until you see Trace, and then display
the pane (F1/F2 key).

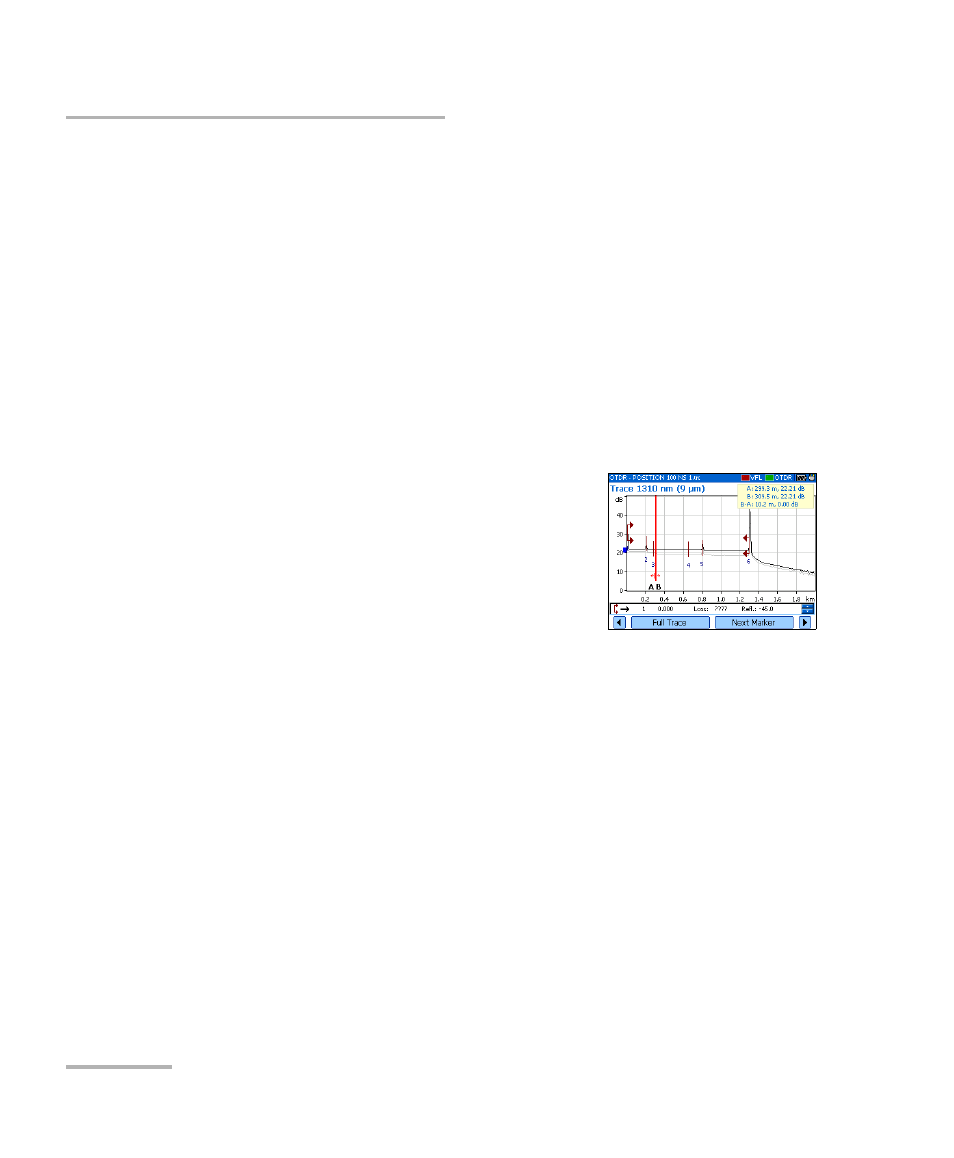

3. Use Next Marker (F1/F2 key) to select the
marker to move.
4. Use the left and right arrows to move the
marker along the trace.
If a marker is moved too close to another,
both will move together to ensure a
minimum distance between them.
5. When you have finished, use the left/right function arrows until you see
Exit, and then close the pane (F1/F2 key).
