Inspecting Fibers with the FIP
OTDR 93
Setting Storage Parameters for Images
Setting Storage Parameters for Images
Each time you save an image, the unit suggests a file name based on
autonaming settings. After saving a file, the unit prepares the next file name
by incrementing the suffix.
File names: maximum 20 characters for prefix, 3 digits for number.
By default, traces are saved in .jpg format, but you can configure your unit
to save them in .bmp format.

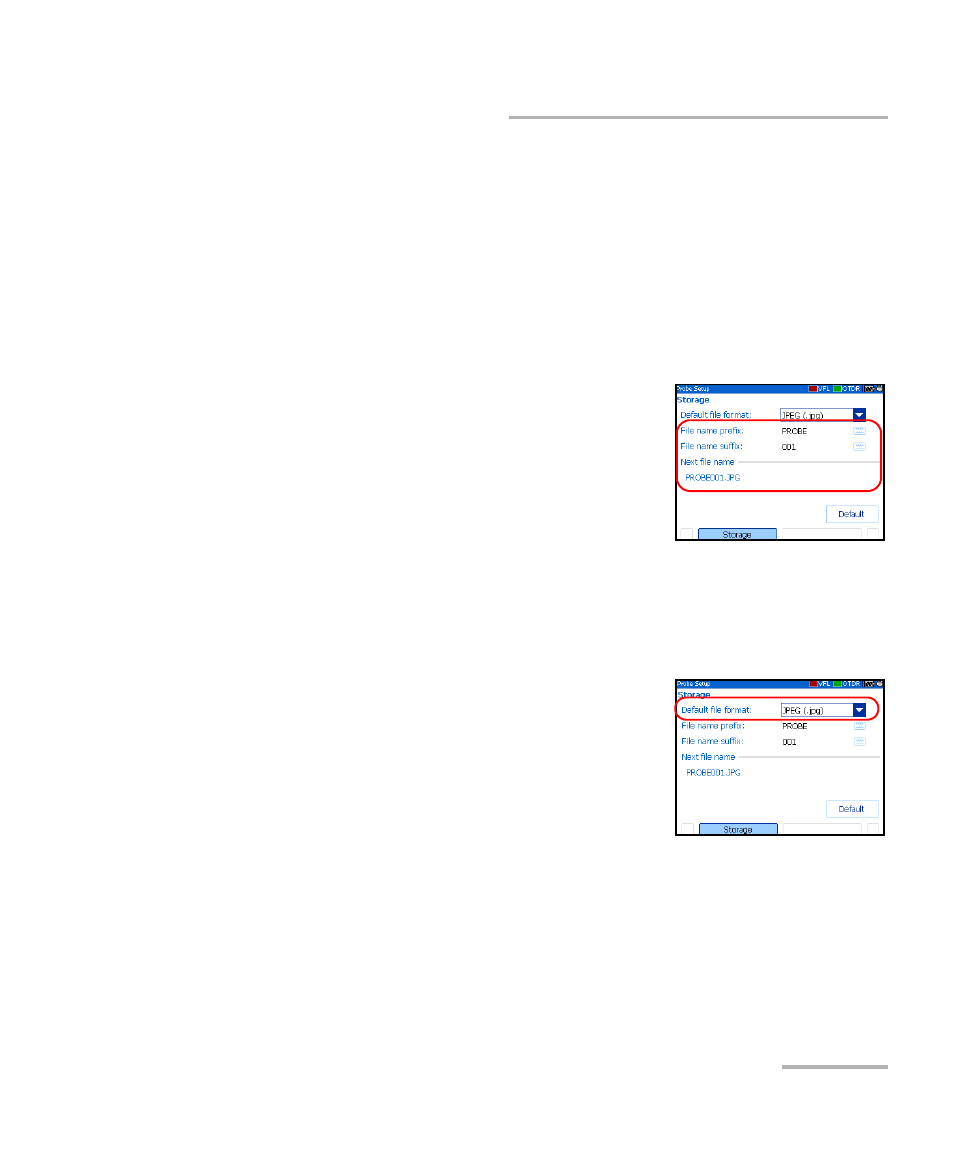

To set the probe image autonaming
scheme:
1. Press Menu, select Setup > Probe, and then
press Enter.
2. Use the arrows to select the file name prefix,
or file name suffix.
3. Press Enter to display the on-screen keyboard (for details about using
keyboards, see Using Menus and Keypad on page 13).
4. Set the name/value, and then press OK (F1/F2 key) to hide the
keyboard.
To set the file format:
1. Press Menu, select Setup > Probe, and then
press Enter.
2. Use the arrows to select Default file format,
and then press Enter to open the list.
3. Use the up/down arrows to select the
desired format, and then press Enter to confirm.
To revert the autonaming scheme and file format to the
factory-default settings:
1. Press Menu, select Setup > Probe, and then press Enter.
2. From the Storage pane, use the arrows to select Default, and then
press Enter to confirm.
