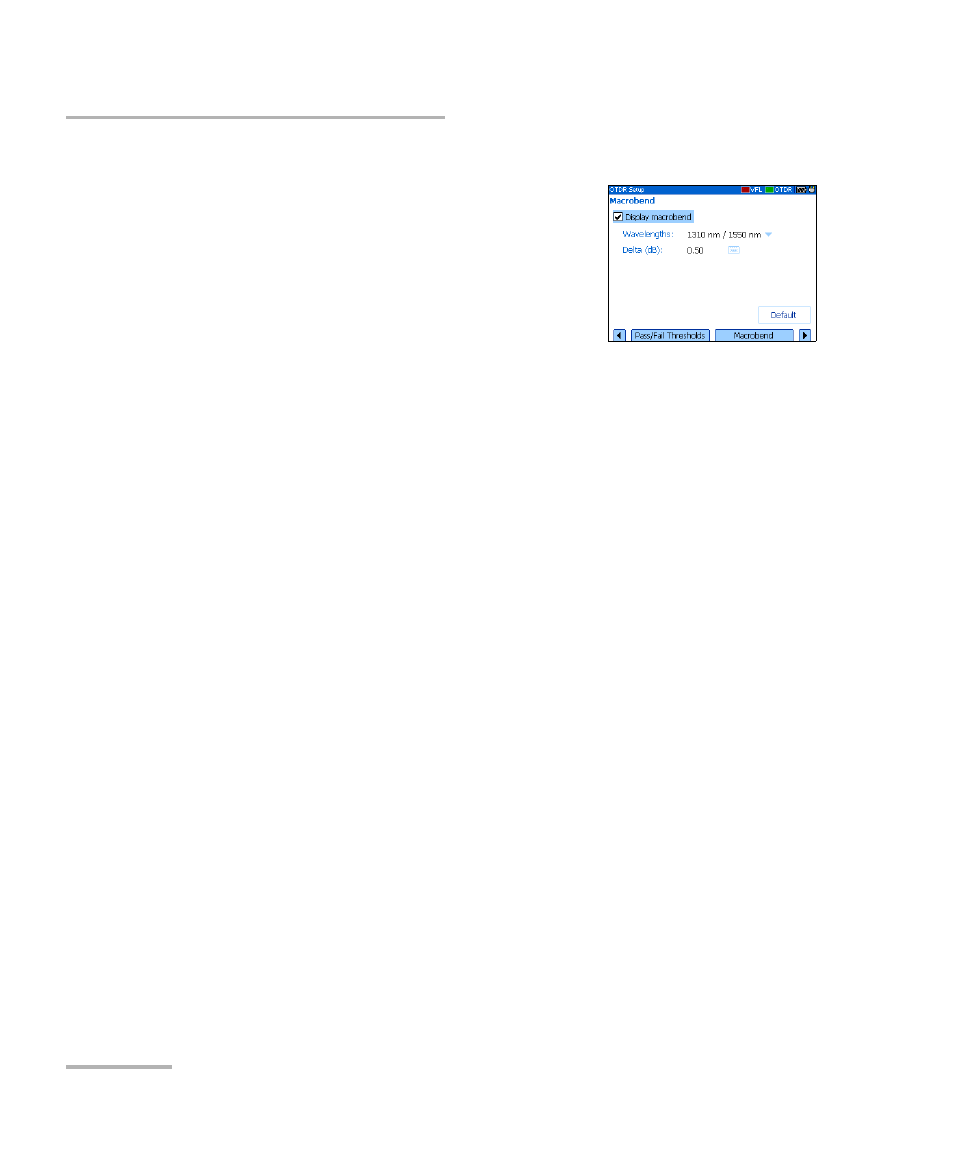

Setting Macrobend Parameters
To set macrobend parameters:
1. Press Menu, select Setup > OTDR, and then
press Enter.
2. Display the Macrobend pane (F1/F2 key).
3. If necessary, press Enter to select the Display
macrobend check box.
If you clear the check box, the application
will not detect macrobends.
4. Press Enter to open the Wavelengths list.
5. Use the up/down arrows to select the desired wavelengths. Press Enter
to confirm your choice.
6. Use the arrows to highlight the Delta (dB) value, and then press Enter
to display the on-screen keyboard (for details about keyboards, see
Using Menus and Keypad on page 13).
7. Set the delta (loss difference) value.
As you enter the value, the application indicates the minimum or
maximum value allowed.
8. Press OK (F1/F2 key) to hide the keyboard.
