1 - 24 Right View
Quick Start Guide
1
Right View

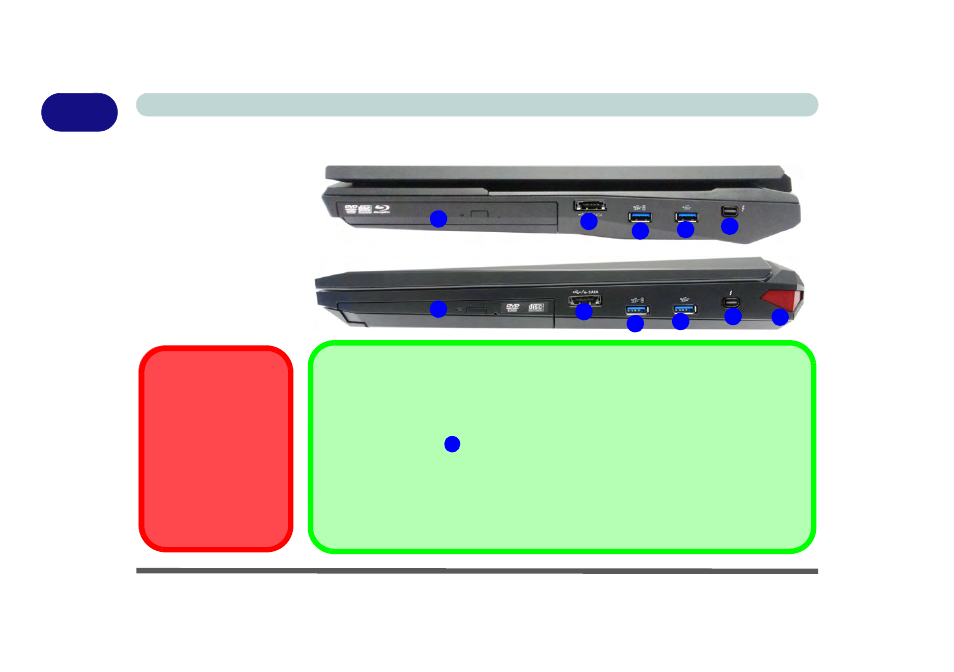

Figure 1 - 15
Right View
1. Optical Device
Drive Bay
2. Combined eSATA/
USB 2.0 Port
3. Powered USB 3.0
Port
4. USB 3.0 Port
5. Thunderbolt Port
6. Rear LED (Models
B & D Only)
Ejecting Thunderbolt
Devices
In order to prevent sys-
tem problems make sure
you do not simply pull
the cable out from the
Thunderbolt port. The
hardware must be eject-
ed safely (see
).
USB 3.0 Ports & USB Port Power
Note that the connections to the USB ports only fit one way, do not force them. USB 3.0
ports are denoted by their blue color; USB 2.0 ports are colored black.
The powered USB 3.0
port can supply power (for charging devices only, not for op-
erating devices) when the system is off but still powered by the AC/DC adapter plugged
into a working outlet, or powered by the battery with a capacity level above 20% (this may
not work with certain devices - see page
). Toggle power to this port by using Fn +
power button (press for around 1 to 2 seconds to toggle).
for a more detailed description of the ports & jacks etc.
3
1
2
3
4
5
1
2
3
4
5
Models A & C
Models B & D
6
