Illuminated LED Keyboard - Model B 1 - 15
Quick Start Guide
1
Keyboard LED Controls for Model B Computers
Note that Model B computers feature a series of additional LEDs, some of which can be configured by the key-
board controls and keyboard backlight application outlined on the following pages. Note the following keyboard
LED features unique to Model B computers.
Keyboard LED Controls for Model B Computers
Fn + Main LED Switch (Toggle all LEDs On/Off)

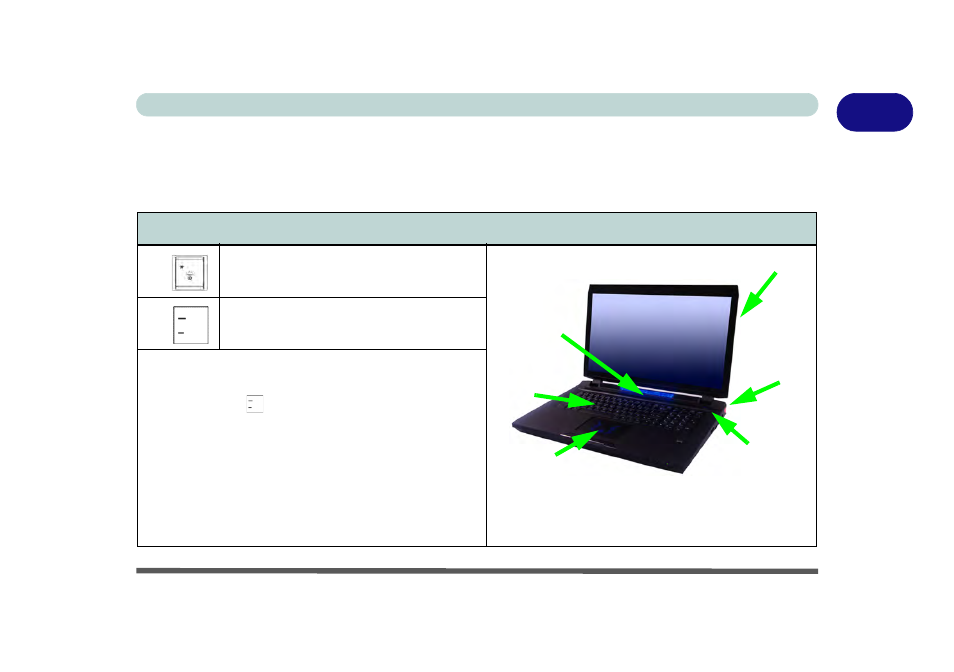

Figure 1 - 9
Keyboard LED Controls for Model B Computers
Fn + Turn Volume Bar LED On/Off
• Use the Main LED switch to turn on/off all LEDs
(except Power Button)
• Use the Fn + key combination to turn on/off the
Volume Bar LED
• Use the keyboard LED controls and backlight
application to configure colors and effects for the
Touchpad, keyboard, power button and top case
logo LEDs
• Note that the Volume Bar LED will not oscillate if
the volume level is set lower than 20%
Top Case Logo LED (Rear)
Rear Left &
Right LEDs
Power Button
LED Touchpad LED
Keyboard
LED
Volume Bar
LED
