Keyboard Backlight LED 1 - 17
Quick Start Guide
1
Keyboard Backlight Application
The keyboard Backlight application can be accessed by pressing the Fn plus
key. Click the Help button
in the application to display the configuration keys. Note this will also affect the LEDs (e.g. Touchpad, Power
Button, Top Case Logo etc.) for Model B computers.
• Click the Custom button
to display the three sections of the keyboard which may be configured.
• Click a section of the keyboard and the color buttons will be displayed.
• Click a color swatch to apply the color to the selected section when not overridden by any effect applied.
• Click on any of the effect buttons to apply random colors, wave or flashing effects etc (see over).

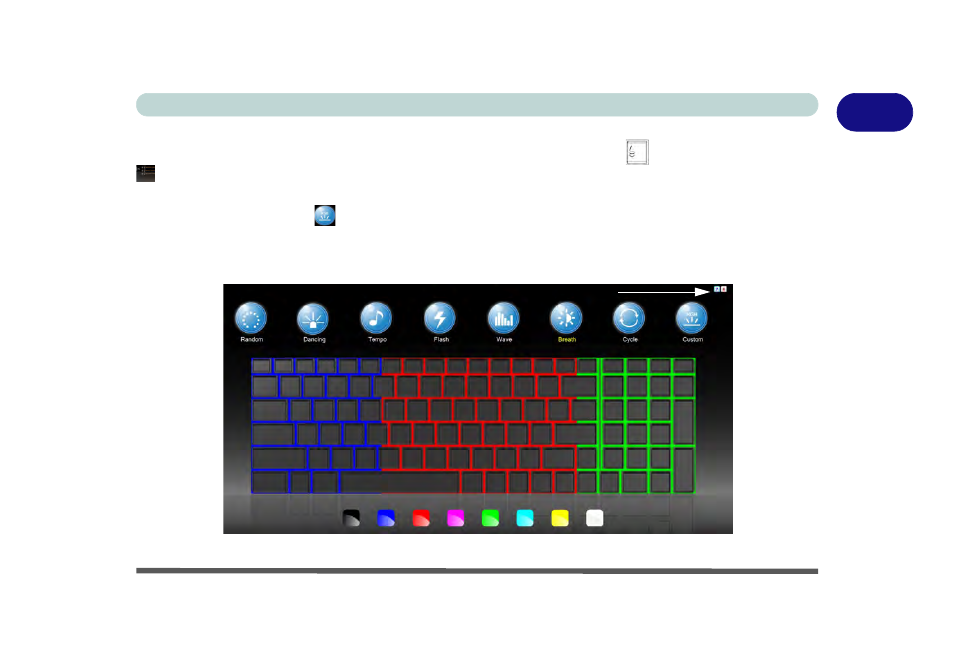

Figure 1 - 10 - Keyboard Backlight Application
Help Button
Keyboard Sections
Color Swatches
Effects Buttons
