Front & Rear Views 1 - 23

Quick Start Guide

1

Front & Rear Views

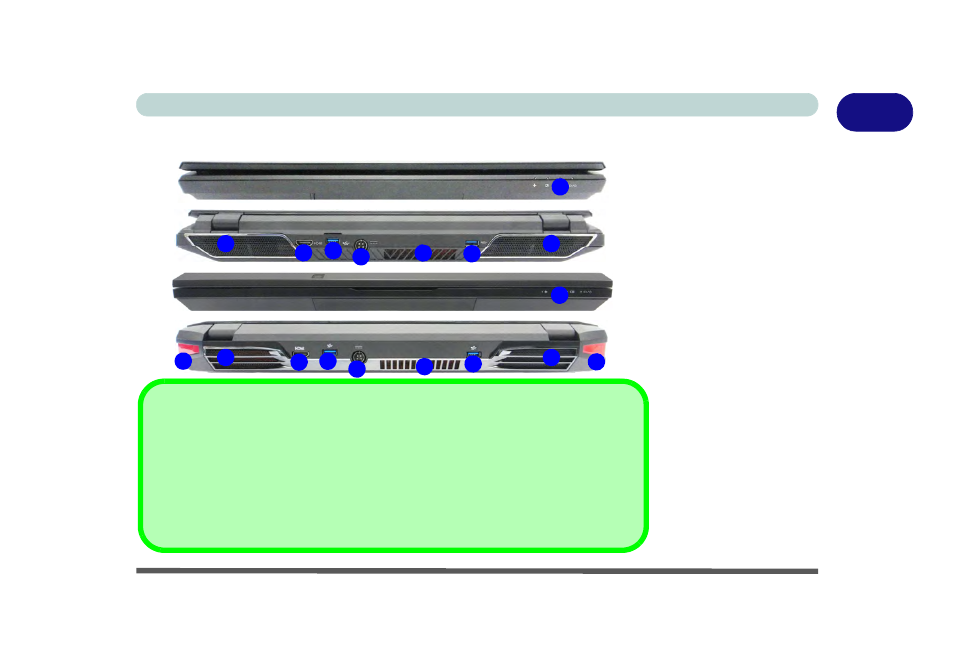

Figure 1 - 14

Front & Rear Views

1. LED Power Indica-

tors

2. Fan Outlet/Intake
3. HDMI-Out Port
4. USB 3.0 Port
5. DC-In Jack
6. Rear Left & Right

LEDs (Models B &
D Only)

See

Appendix A

for a more

detailed description of the
ports & jacks etc.

1

HDMI Port

Note that the HDMI Port supports video and audio signals to attached external displays (al-
so see

“HDMI Audio Configuration” on page C - 17

).

USB 3.0 Ports

Note that the connections to the USB ports only fit one way, do not force them. USB 3.0
ports are denoted by their blue color; USB 2.0 ports are colored black.

See

Appendix A

for a more detailed description of the ports & jacks etc.

2

3

4

5

4

2

2

1

2

2

3

4

4

5

2

6

6

Models A & C

Models A & C

Models B & D

Models B & D
