17

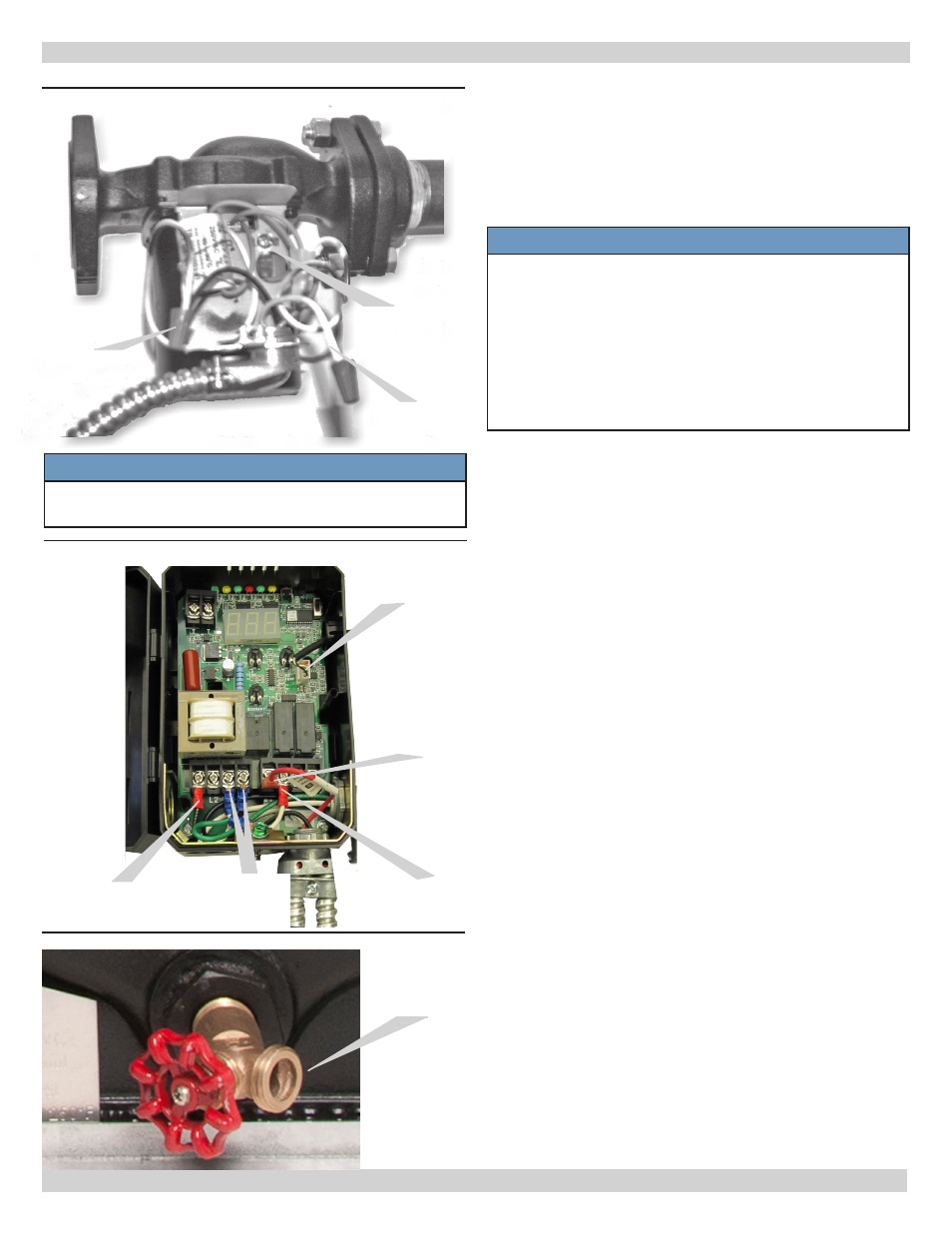

Figure 14 - Circulator Wiring
8 - BOILER ASSEMBLY
Figure 15 - Limit Control Wiring
NOTICE
Ensure all conduit is secured to prevent contact with
flue pipe
Figure 16 - Drain Valve
B. Use hand wrench to tighten door hardware and start
with non-hinged side. Use alternating tightening
method from non-hinged side to hinged side to
tighten door equally until sealed without applying
excessive torque. Never tighten hinged side flange
bolt first or tighten either piece of hardware 100%
without using alternating tightening method
described above.
NOTICE
When securing burner swing door, make sure door is
drawn-in equally on both sides.
Failure to follow the prescribed procedure could
cause thread damage to casting or a leak in the
door seal. If hinged side is tightened before the
unhinged side, the hinged side of door cannot
be drawn to provide an air-tight seal. Applying
excessive torque will only cause thread damage.
20. Install oil burner.
• Check oil nozzle in burner for size, angle and type,
inspect electrode settings, check head setting, check air
band and air shutter settings. See “Oil Burner, Nozzle,
& Air Settings” on page 49.
• DO NOT install burner without gasket. Place oil burner
gasket on face of burner swing door with 4 burner
flange bolts installed part way.
• Align round part of key hole slots of burner flange with
burner door bolts. Turn burner to lock in place.
• Tighten all 4 cap screws using diagonal sequence.
• Plug burner power cord into burner harness.
• Attach flexible oil hose included in parts box.
THERMAL/
LWCO
WIRE
PIN
BLACK
WIRE TO
L1
WHITE
WIRE TO
B2
RED
WIRE
TO B1
DRAIN
VALVE
BLACK
TO
YELLOW
GREEN TO
GROUND
SCREW
WHITE
TO
WHITE
C1, C2
CIRCULATOR
WIRING
