DCS-6620G User’s Manual
D-Link Systems, Inc.
Using IP surveillance Software
IP surveillance includes pan/tilt control, DI/DO (Digital Input / Digital Output) control, and an
alert message receiver. Each of these are described in detail below.
DI/DO Control

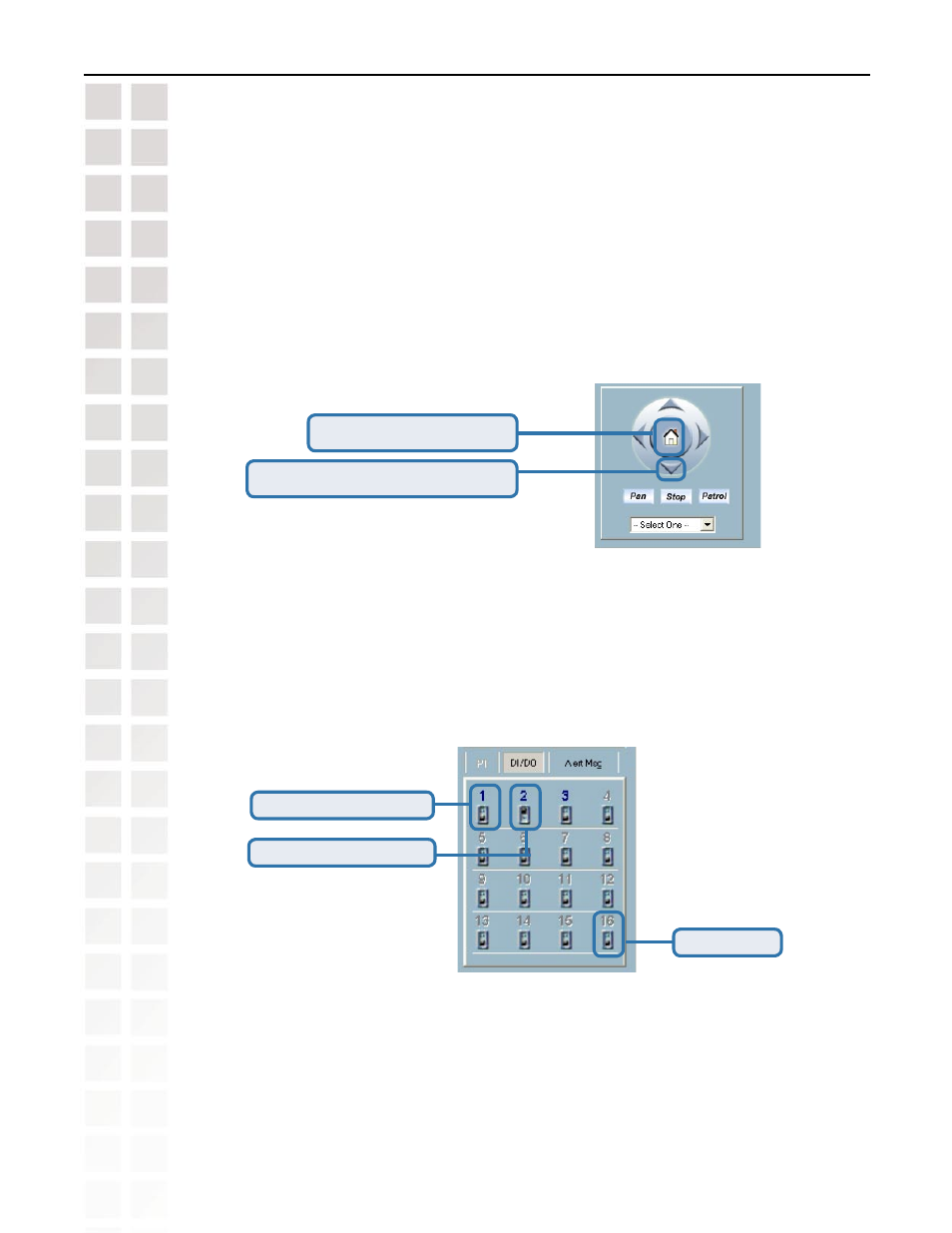

Clicking on the “DI/DO” button shown below, you can switch to the DI/DO controls. The color
of the channel number indicates the status of the camera’s DI (Digital Input). You can click the
“Switch button” to change the HI/LOW state of the DO (Digital Output). With these features,
you can monitor the remote sensor input from DI and also trigger the camera by DO switch
.
Monitor Program (continued)
Set digital output to LOW
Set digital output to HIGH
No connection
Refer to the following figure to use the pan and tilt controls.
Pan – Pans the camera one full cycle.
Stop – Stops movement of the camera during pan.
Patrol – Enables the Auto Patrol feature.
Pull down menu – Select a preset position to move the camera to.
Return to home position.
Tilt/navigate camera using arrows.
PTZ Control
When the color of a DI/DO number is gray, that means the video has not yet been connected
to a camera.
