External I/O Port

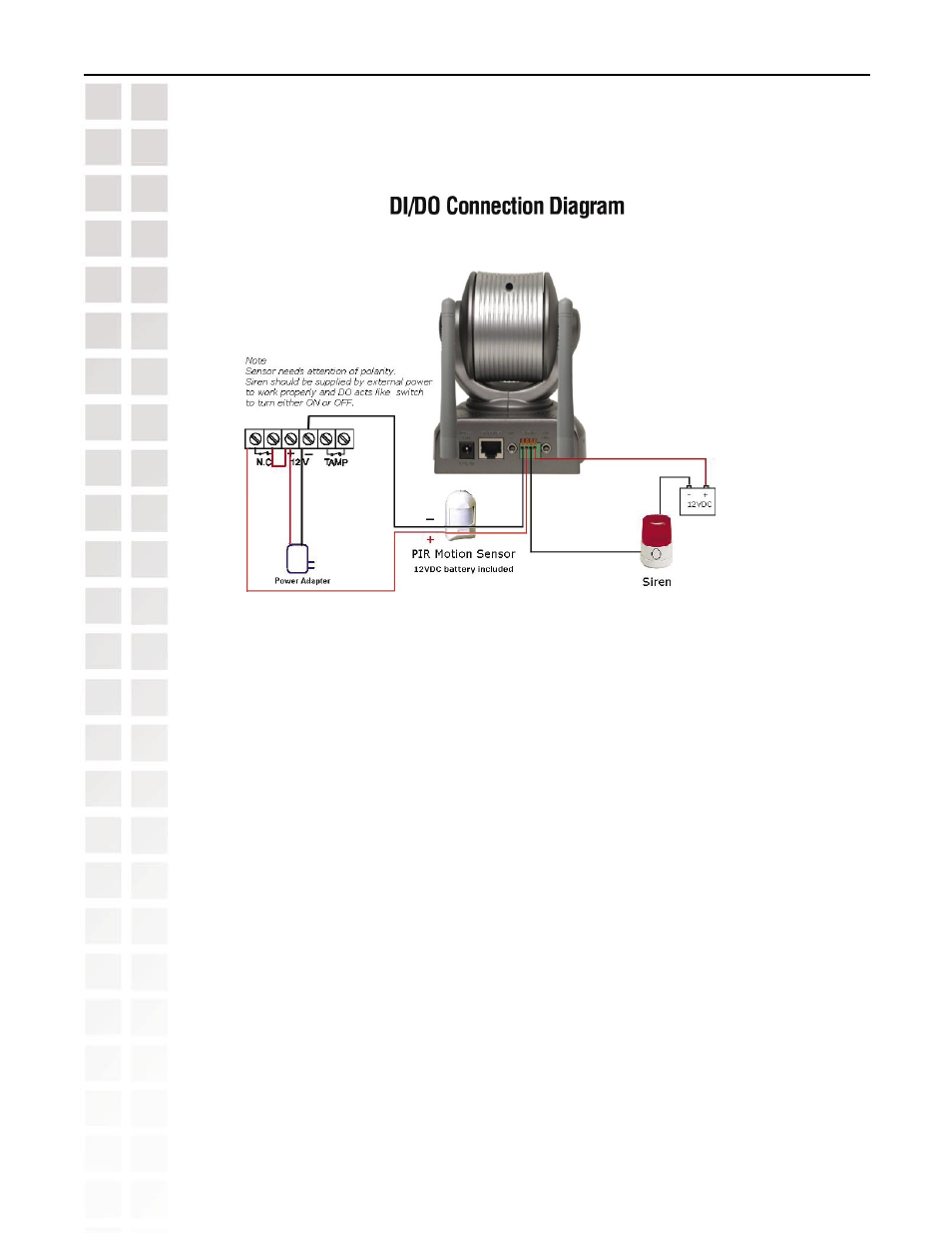

The above diagram shows a typical wiring configuration for a normally closed PIR motion
sensor. Please refer to your specific motion sensor for the power supply connection to the
device since this will be critical to the success of your installation. Note that the positive from
the PIR is connected to the D- of the I/O port of the camera and the negative from the PIR is
connected to the D+ of the camera I/O port.
Configuring Your Camera for External Trigger Based Recording
To configure your camera to record when triggered by an external device, you must
first set your SMTP or FTP settings in order to send snapshots to your e-mail account
or FTP server.
