Using IP surveillance Software
Scheduling (continued)
Digital Input

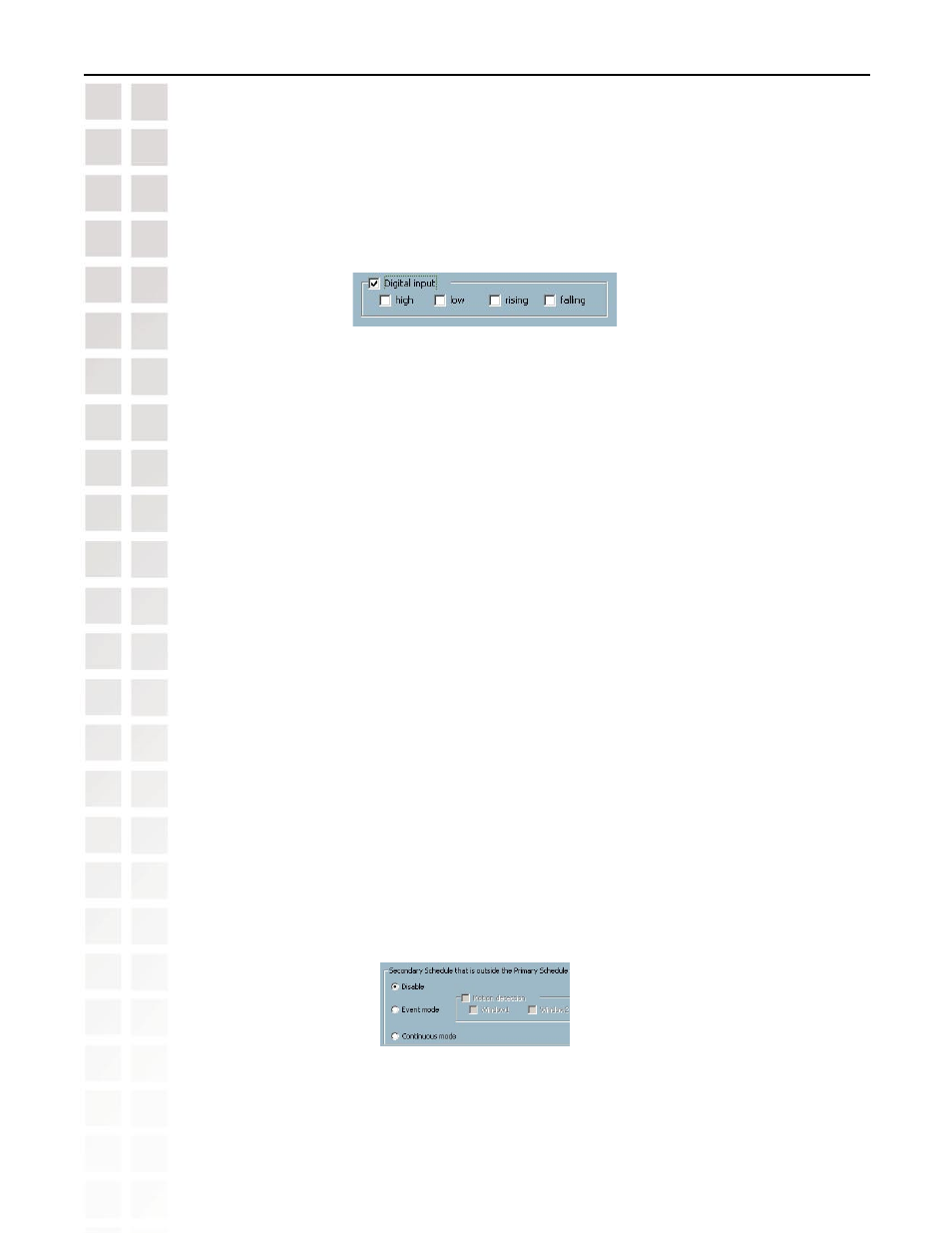

In the figure above, there are four conditions for the digital input. Check the condition that you
would like to record while the condition triggers.
Schedule modes
If you select Continuous mode in the schedule mode selector, it will record continuously during
the schedule that is set up by the user.
Secondary Schedule
Secondary schedule is for recording outside of the primary schedule. The secondary schedule
provides options to record without a specified date or time.
Schedule in Continuous mode
 high
Checking this will trigger recording while the digital input is high/ The technical name
for this event is line trigger.
 low
Checking this will trigger recording while the digital input is low. The technical name
for this event is line trigger.
 rising
Checking this will trigger recording while the digital input is changing from low to high.
The technical name for this event is edge trigger.
 falling
Checking this will trigger recording while the digital input is changing from high to low.
The technical name for this event is edge trigger.
