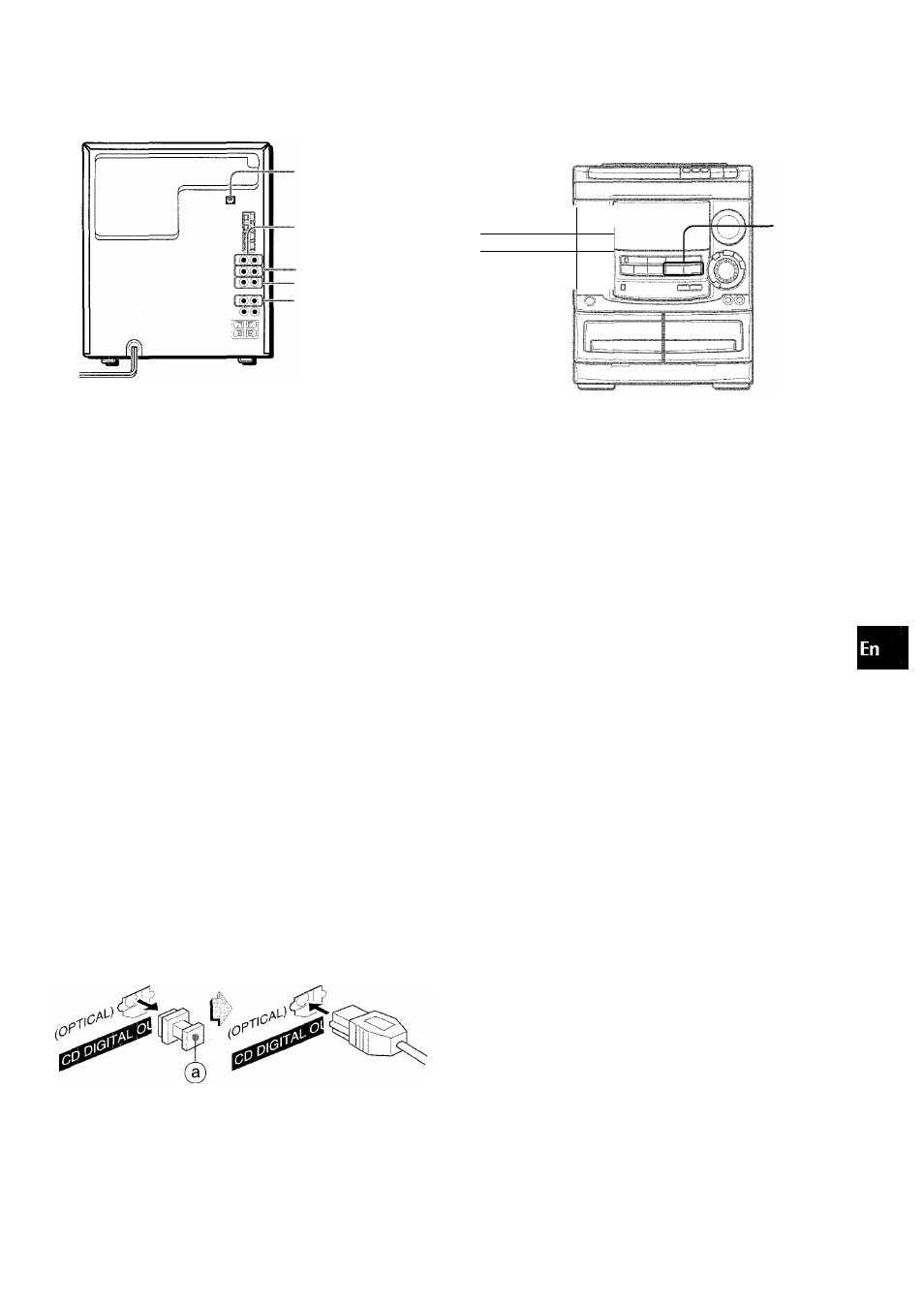

OTHER CONNECTIONS
■CD DIGITAL OUT
(OPTICAL)
■ VIDEO/AUX
MD
•LINE OUT
•SUPER
WOOFERS
Refer to the operating instructions of the connected equipment
for detaiis.
• The connecting cords are not suppiied. Obtain the necessary
connecting cords,
• Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS, MD JACKS
This unit can input analog sound signals through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, MD players, VCRs, TV, etc.).
Connect the red plug to the R jack, and the white plug to the L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
LINE OUT JACKS
This unit can output analog sound signal through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
with LINE IN (analog input) jacks.
Do not connect an equipment to the LINE OUT terminals and
VIDEO/AUX terminals simultaneously. Otherwise, noise is
generated and malfunction occurs.
CD DIGITAL OUT (OPTICAL) JACK.................
This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment (DAT
deck, MD recorder, etc.).
Remove the dust cap (g) from the CD DIGITAL OUT (OPTICAL)
jack. Then, connect an optical cable plug to the CD DIGITAL
OUT (OPTICAL) jack.
When the CD DIGITAL OUT (OPTICAL) jack is not being used
Attach the supplied dust cap.
SUPER WOOFERS «i JACKS.................
Connect optional powered sub woofers with built-in-amplifiers
to the jacks.
POWER-------
o
V 1LJ LLJ//^U/\ -
Lti MD
C"J
C?
To play equipment connected to the VIDEO/AUX or MD jacks
proceed as follows.
1 Press VIDEO/AUX or MD.
When a equipment connected to the ViDEO/AUX jacks is
played; press VIDEO/AUX.
When a equipment connected to the MD jacks is played:
press MD.
2 Play the connected equipment.
To change a source name in the dispiay
When VIDEO/AUX is pressed, “VIDEO” is displayed initially. It
can be changed to “AUX” or “TV”.
With the power on, press POWER while pressing VIDEO/AUX.
Repeat the procedure to select one of the names.
To adjust the sound level of the external source
When the sound level of the external source is much higher or
much lower than that of other function sources, adjust it as follows.
1 Press VIDEO/AUX or MD and play the equipment.
2 Press or ►► so that the sound level becomes the same
as that of other function sources.
OC
111
s
p
a
z
<
o
o
(A
z
o
p
o
Ui
o
u
a
111
X
I­
o
During recording, the sound level can not be adjusted.
