P/I-P55SP3AV

User's Manual

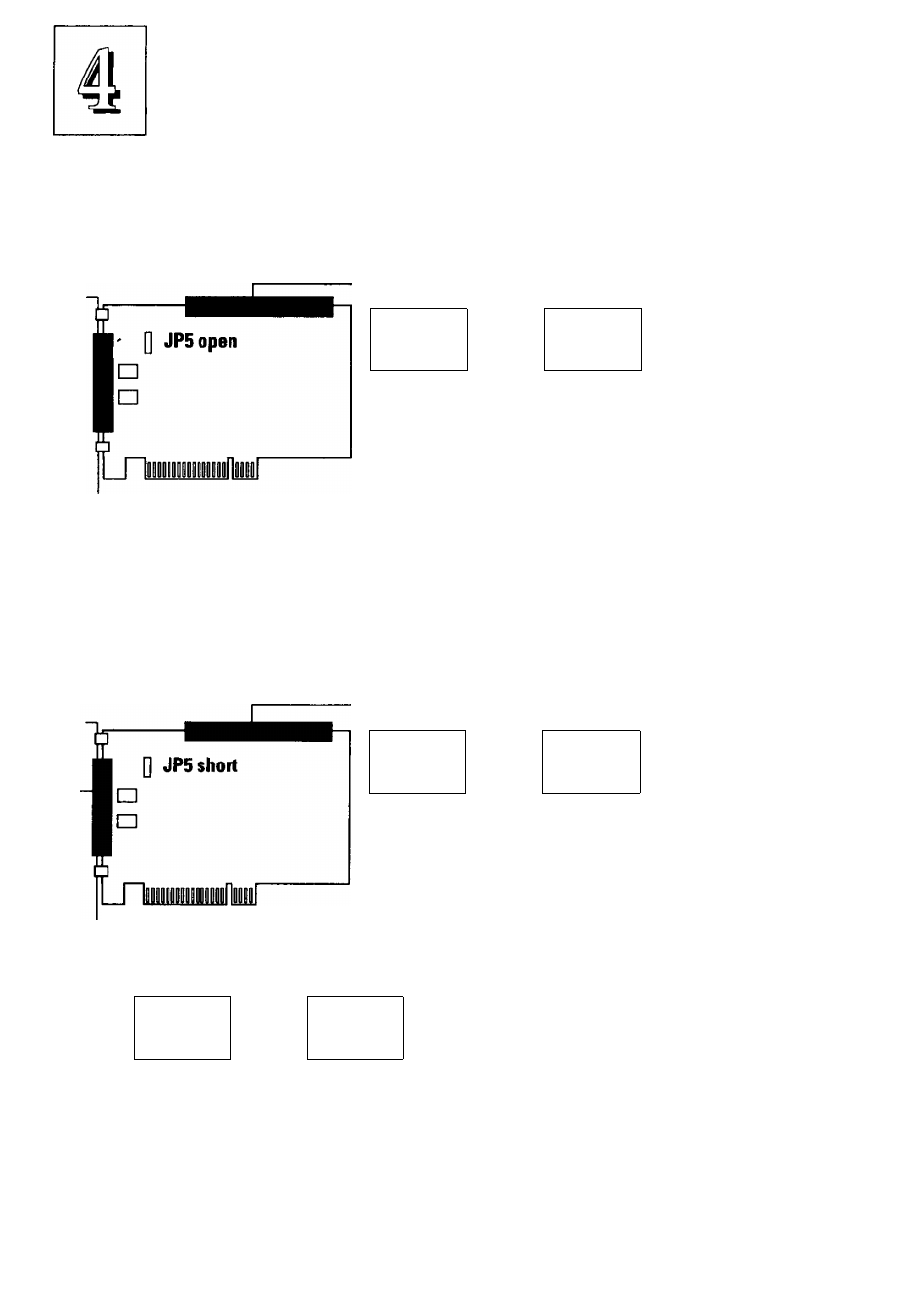

Example 1: Only internal or only external devices connected

Internal SCSI Cable

Beginning Device

(Termination Enabled)

(Termination

Disabled)

SCSI

SCSI

Device 1

Device 2

End Device

(Termination

Enabled)

Note: SCSI controller

card ID# is "7".

Example 2: Both internal and external devices connected

Internal SCSI Cable

SCSI

SCSI

Device 3

Device 4

(Termination

Disabled)

End Device

(Termination

Enabled)

(Card Termination Disabled)

External SCSI Cable

Note: SCSI interface

card ID# is still "7 ".

SCSI

SCSI

Device

2

Device 1

(Termination

Disabled)

Beginning Device

(Termination

Enabled)
