upgrade Guide
The basic procedure is as follows:
1. Open the system case to gain access to the expansion slots.
2. Remove the slot-cover corresponding to the slot you want plan
to use. Put the slot-cover retaining screw aside and store the
slot cover in case you need it later.
3. Remove the card from its protective packaging if you haven't
already.
4. Align the card's slot connectors to the slot. Keep the card at a
90° angle to the mainboard. Insert the card into the slot by
pressing it firmly downward. If there is a lot of resistance, make
sure the slot connectors are lined up correctly. PCI cards require
little pressure to insert. ISA cards may need a bit more force.
5. Attach the card's mounting bracket to the case using the slot
cover screw you put aside in Step 2.
6. Close the case, reconnect aU devices, turn on the computer and
check to see if the card is working properly, as well as do any
software set up required. If rurming Windows 95, follow the
configuration procedure.

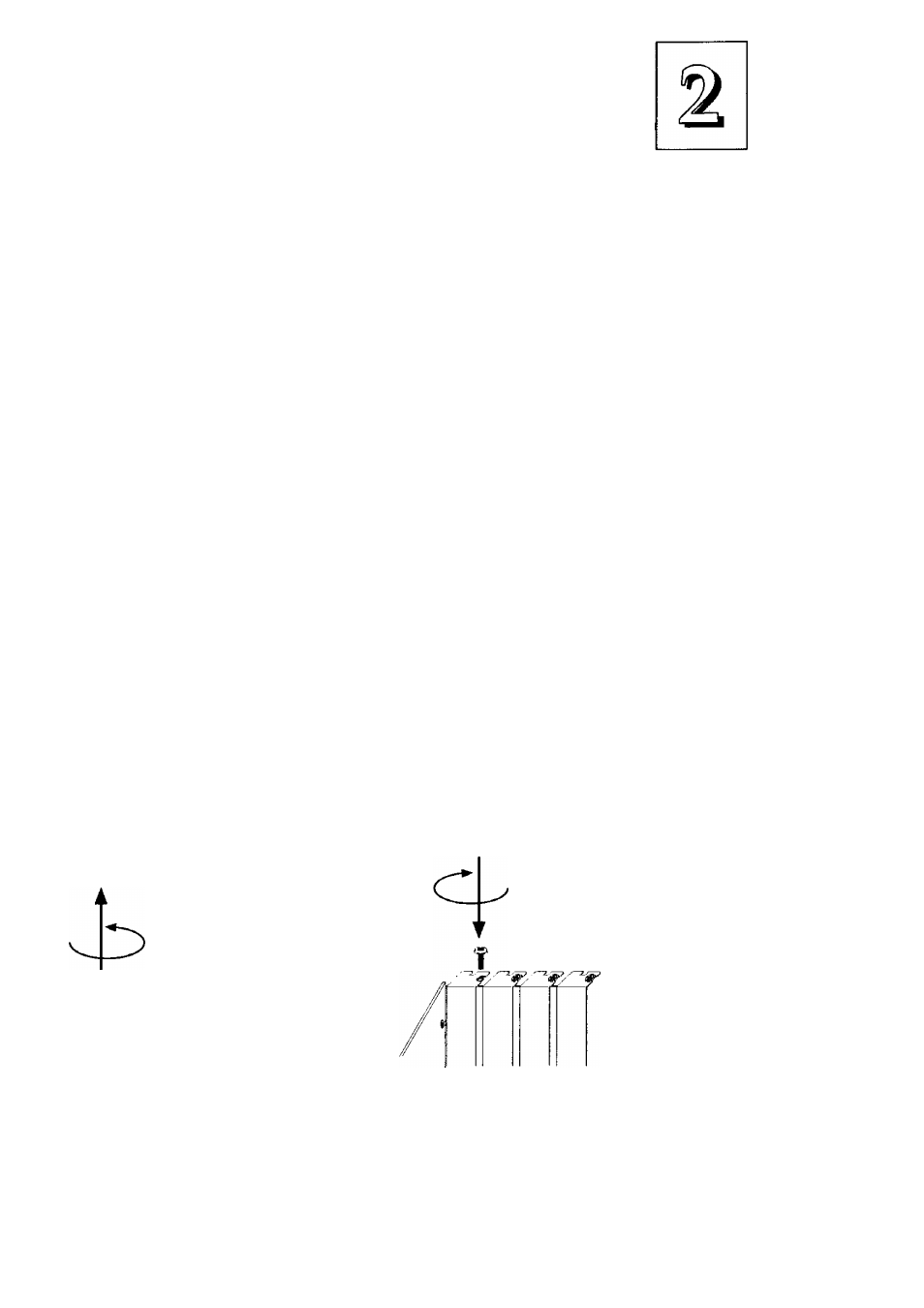

Remove the slot
retaining screw
& slot cover
Use the screw to
secure the card to
the case
The component side of the card should face right (or
up) for an ISA card and left (or down) for a PCI card
