Technical Summary
The PCI-SC200 SCSI Interface Card
Your mainboard may have come with an optional SCSI (Small
Computer System Interface) controller card, the PCI-SC200. The card
is also available separately. This card works with the SCSI BIOS on
the mainboard. Together, they provide a complete PCI Fast SCSI-2 in
terface. With the card installed in your system you can connect SCSI
devices installed in your system case to the internal connector on the
card. You also have the additional option of connecting external SCSI
devices to the external SCSI-2 connector on the card.
If you get the PCI-SC200 later on as an option, you will need to
install it yourself. The setup procedure is explained here. The basic
card installation procedure is explained at the end of Chapter 2.

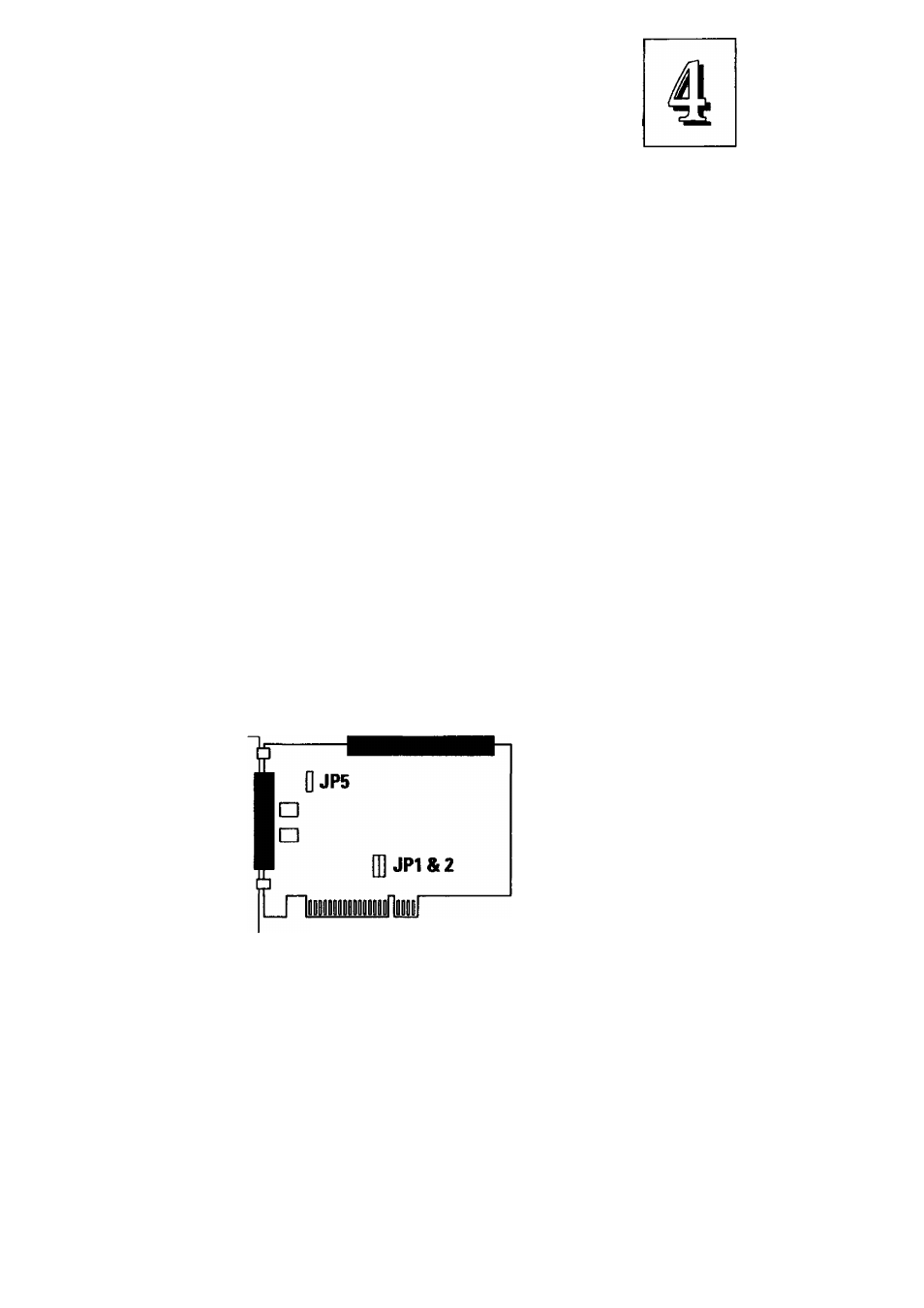

The PCTSC200 SCSI Interface Card
Internal SCSI ribbon cable connector
External SCSI 2
cable connector
PCI edge connector
Setting Up the PCI-SC200
There are two jumper settings you may need to make on the card
to set it up. One setting assigns the PCI INT interrupt, the other sets
the card's termination.
4 - 1 5
