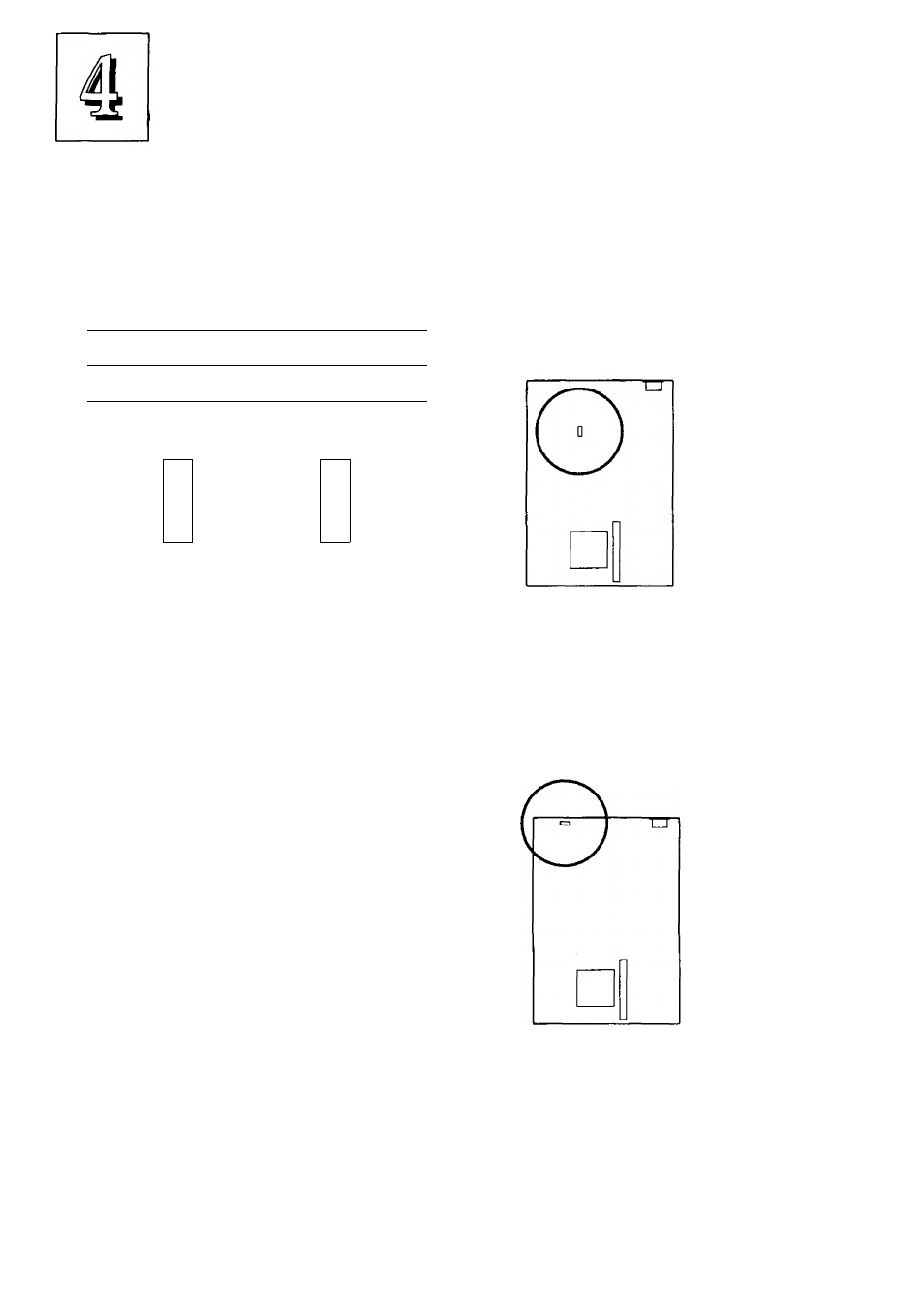

PS/2 Mouse Port Selector: JP12

This jumper controls the on-board PS/2 Mouse lead connector. When set to

Enable, the port is active and uses IRQ12.

JP12

Disable

1&2

Default

Enable

28.3

C- 0

Disable

PS/2 Mouse

Enable

PS/2 Mouse

Onboard Audio Selector: JP13

This jumper controls the onboard audio. When set to Enable, the onboard audio is

active.

JP13

Enable

Open Default

Disable

Short

JP13

-©O

Enable

Audio

Disable

Audio

For the Open setting, place jumper cap over one pin
