Feature Guide
Setting options for most jumpers are printed on the board in a
stylized bird's-eye view, with which pins to connect for each setting
marked by a bar connecting two pins. For example, if a jumper has
three pins, connecting, or 'shorting', the first and second pins creates
one setting and shorting the second and third pins creates another.
The same type of diagrams are used in this manual. The jumpers are
always shown from the scime point of view as shown in the whole-
board diagram in this chapter. The next figures show what the
manual diagrams look like and what they represent.

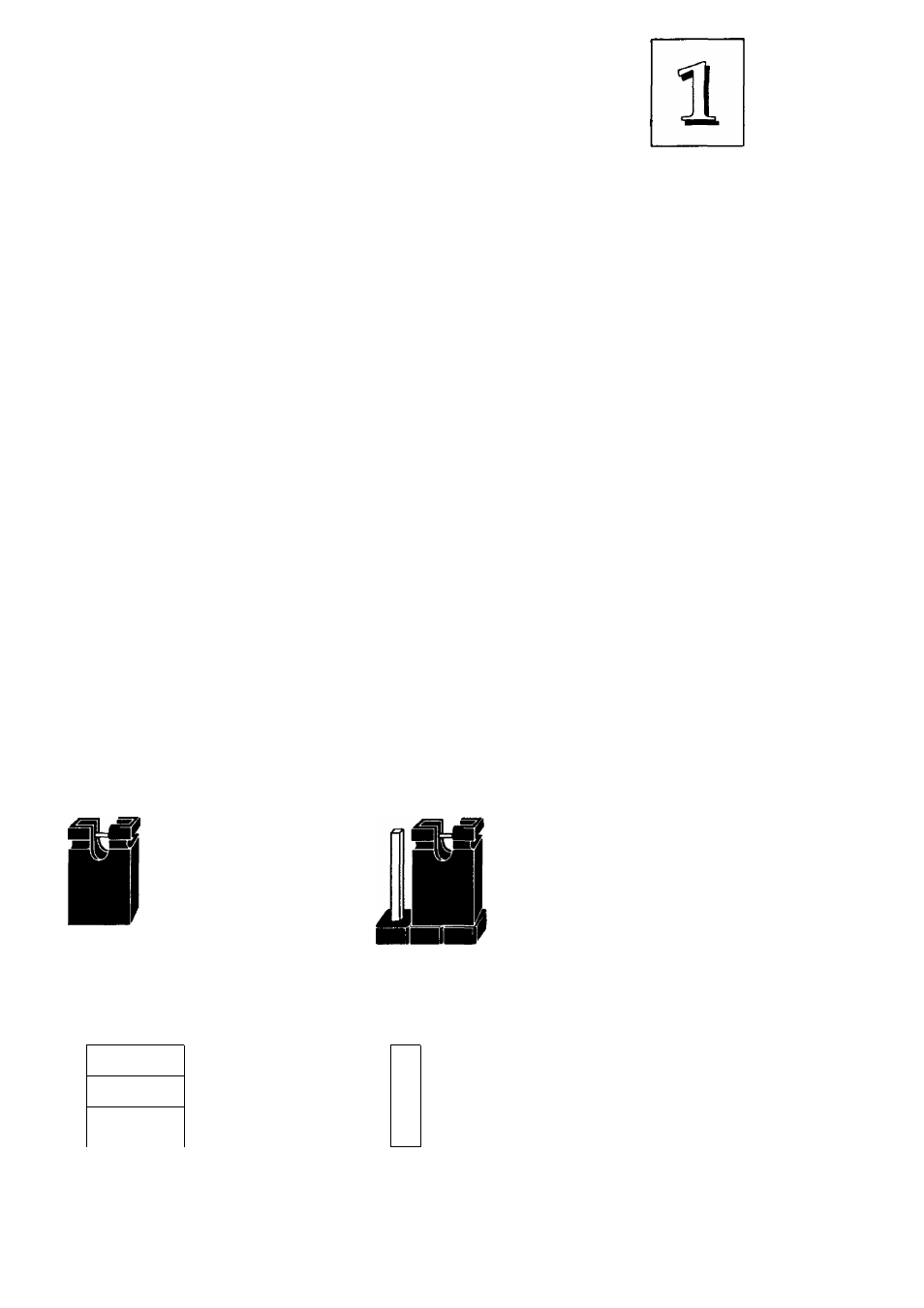

Jumper diagrams
Jumpers are shown like this
O O
O O O
Jumper caps like this
Jumper settings like this
O 0-0
O 0-0
Jumpers in
9
O 0-0
a 'block'
4
0-0
o
o
Some jumpers are oriented
vertically; if the pin
position needs to be
shown. Pin 1 is marked.
1-9
