Attachments
IMPORTANT: When using summer at­
tachments, remove heater box and install air
cleaner.
9.1 Air Cleaner Installation
NOTE: This air cleaner kit can be used on
various engines and installation instructions
vary slightly (not all parts may be used on your
unit). Use the instructions that apply to your
unit.

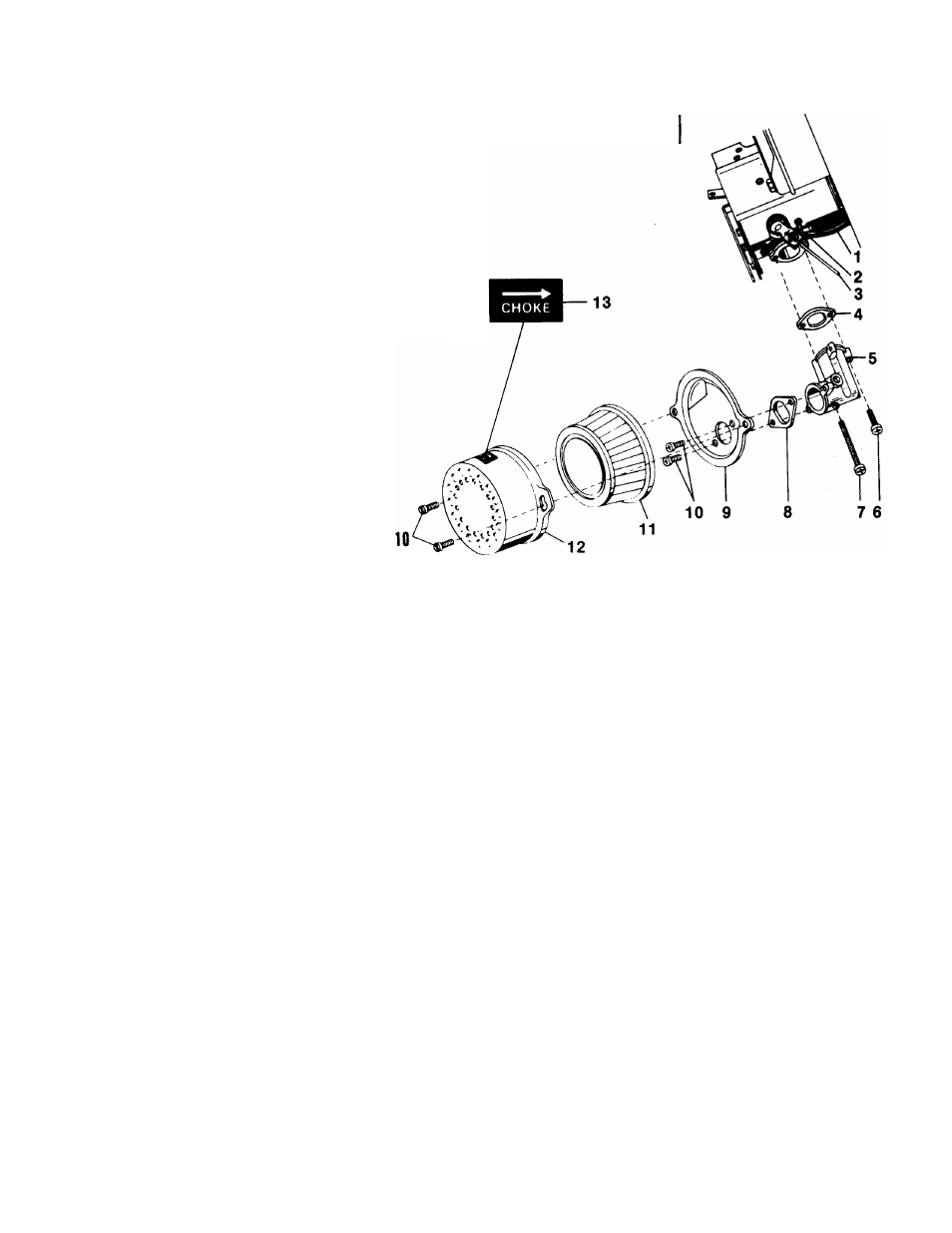

1. Primer Hose
2. Hair Pin
3. Choke Rod
4. Gasket
5. Eibow
6. 3/4” Machine Screw
7. 2-1/2” Machine Screw
8. Gasket
9. Air Fiiter Back Plate
10. 1/2” Machine Screws
11. Air Filter
12. Air Filter Cover
13. Choke Decal
CARBURETOR COVER &
CHOKE ASSEMBLY
REMOVED
Figure 9-1: Air Cleaner Installation
r
ST 270 (2.7 HP ■ 932001)
ST 504 (5 HP - 932006,7)
ST 524 (5 HP - 932020)
ST 420 (4 HP 932023)
Remove choke knob (this may require prying
on underside of knob with flat blade
screwdriver).
Remove two machine screws that attach car­
buretor to engine and remove cover.
Remove two machine screws that attach
choke bracket to carburetor and remove choke
bracket and rod from unit (save choke bracket,
rod and machine screws for Sno-Thro opera­
tions). Secure gasket and 90 degree elbow to
front of carburetor with one 2-1/2” and one 3/4”
machine screws.
Secure gasket and air filter back plate to 90
degree elbow with two 1/2” machine screws.
Secure air filter and cover to back plate with
two 1/2” machine screws.
Secure choke rod (from kit) to choke lever on
carburetor with hair pin and place choke decal
on top of air filter cover.
Reverse procedures for converting back to
Sno-Thro operations.
ST 350 (3.5 HP • 932004)
ST 3520 (3.5 HP 932019)
Remove choke knob (this may require prying
on underside of knob with flat blade
screwdriver).
Remove machine screws that attach car­
buretor cover to engine and remove cover.
Remove two machine screws that attach
choke bracket to carburetor and remove choke
bracket and rod from unit (save choke bracket,
rod and machine screws for Sno-Thro opera­
tions).
9-1
