Engine and Headlight
Models 724039, 40, 41
12
Fits 932001 S/N 043801 >
Fits 932004 S/N 035001 >
Fits 932006 S/N O5830l>
Fits 932007 S/N 001301 >
Fits 932015,18,19,20

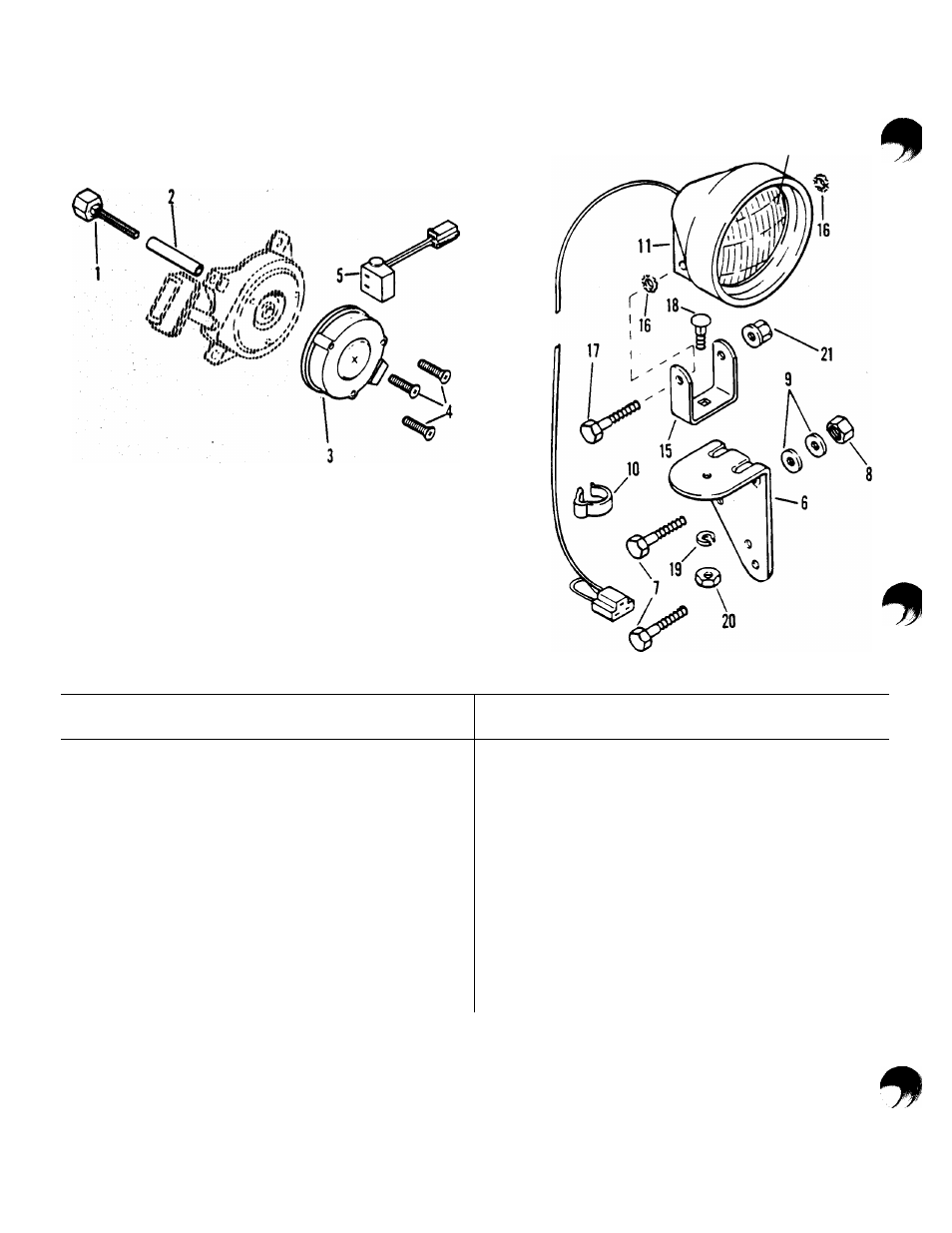

Figure 8-2: Alternator/Headlight
ITEM
N0.
DESCRIPTION
ITEM
N0.
DESCRIPTION
1
Alternator Shaft 3”
11
Headight Assembly (724039)
(Tec. 590613) (932000 Series)
Headlight Assembly (724040, 41)
2
Centering Tub, 2.7 to 5 HP (Tec. 590610)
(Consists of items 12 thru 21)
3
Alternator (Tec. 611077)
12
Headlight
4
Self-Tapping Screw (Tec. 650868)
13
Push Button Switch (724039)
5
Lighting Connector (Tec. 611078)
14
Switch Boot (724039)
6
Headlight Bracket
15
U-Bracket
7
Cap Screw, 1/4-20 x 1-3/4
16
Lock Washer 5/16
(932019, 20)
17
Cap Screw, 5/16-18 x 2-1/2
Cap Screw, 1/4-20 x 1-1/4
18
Carriage Boit, 5/16-18 x 1”
( 9 3 2 0 0 1 , 4 , 6 , 7 , 1 5 , 1 8 )
1 9
Lock Washer, 5/16
8
Lock Nut, 1/4-20
20
Nut, 5/16-18
9
Washer, 1/4
21
Flange Whiziock Nut, 5/16-18
10
Conduit Clamp
8-2
