Friction Wheel Drive

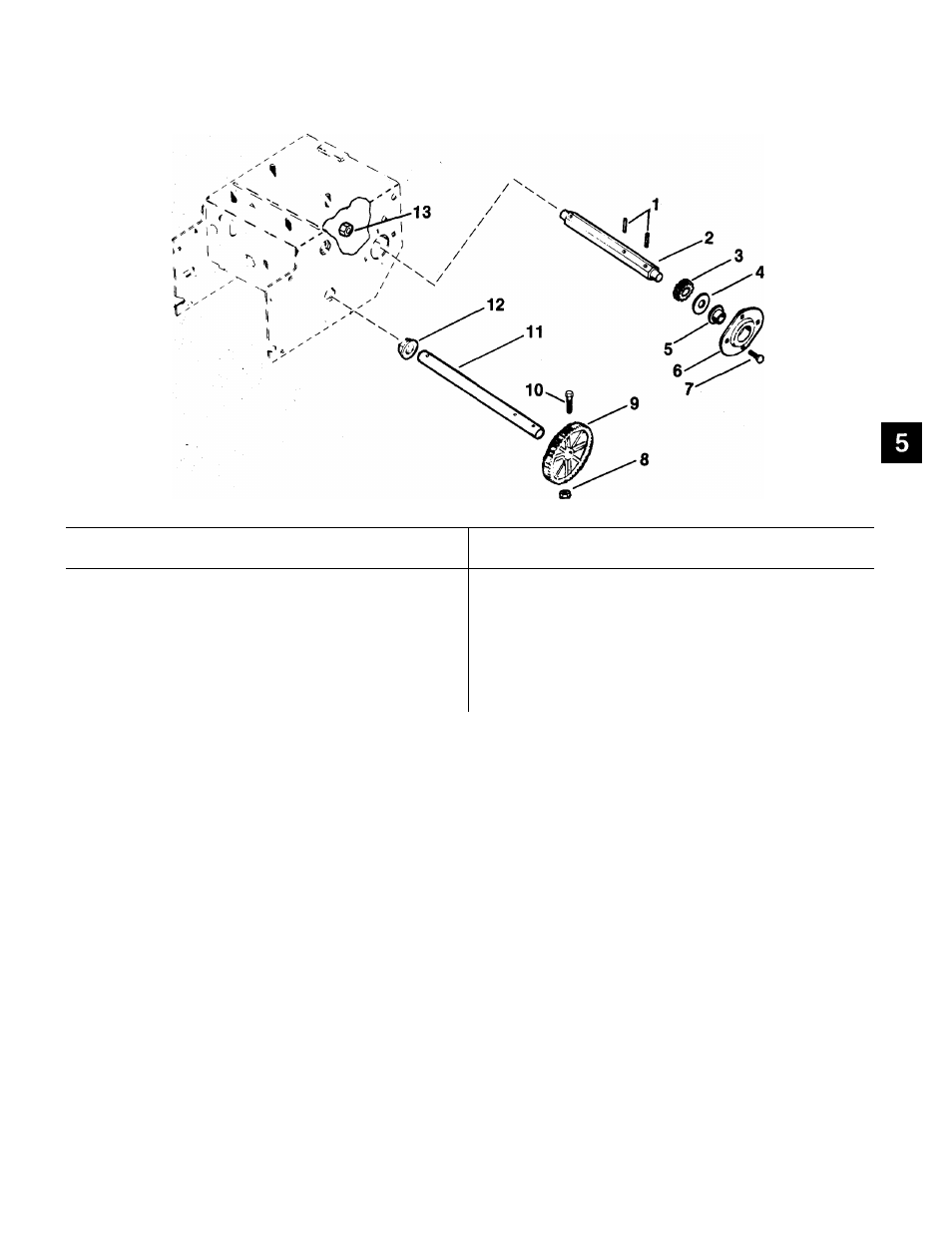

Figure 5-5: Reduction Drive (Expioded View)
5.5 Friction Wheei Drive
ITEM
NO. DESCRIPTION
ITEM
N0. DESCRIPTION
1 Roll Pin, 1/8 X 7/8 8 Lock Nut, 1/4-20
2 Hex Shaft 9 Gear
3 Pinion 10 Cap Screw
4 Washer, 1/2 11 Axle Shaft
5 Flanged Bushing 12 Flanged Bushing
6 Bushing Flange 13 Lock Nut, #10-24
7 Carriage Bolt, #10-24 x 3/8
Remove friction drive assembly according to
instructions in Friction Drive Section.
Remove cap screw and lock nut securing
reduction gear to axle shaft and remove axle
and gear from frame.
Inspect parts for wear or replacement.
Assemble using reverse procedure.
5-5
