Belt Drive

4.4 Attachment Clutch/Impeller Brake

WARNING: With improper use, injury
may result if attachment clutch lever is
released and brake DOES NOT STOP
auger/impeller within 5 seconds.

1. Spring Extension
2. Brake Shoe
3. Attachment Drive Beit

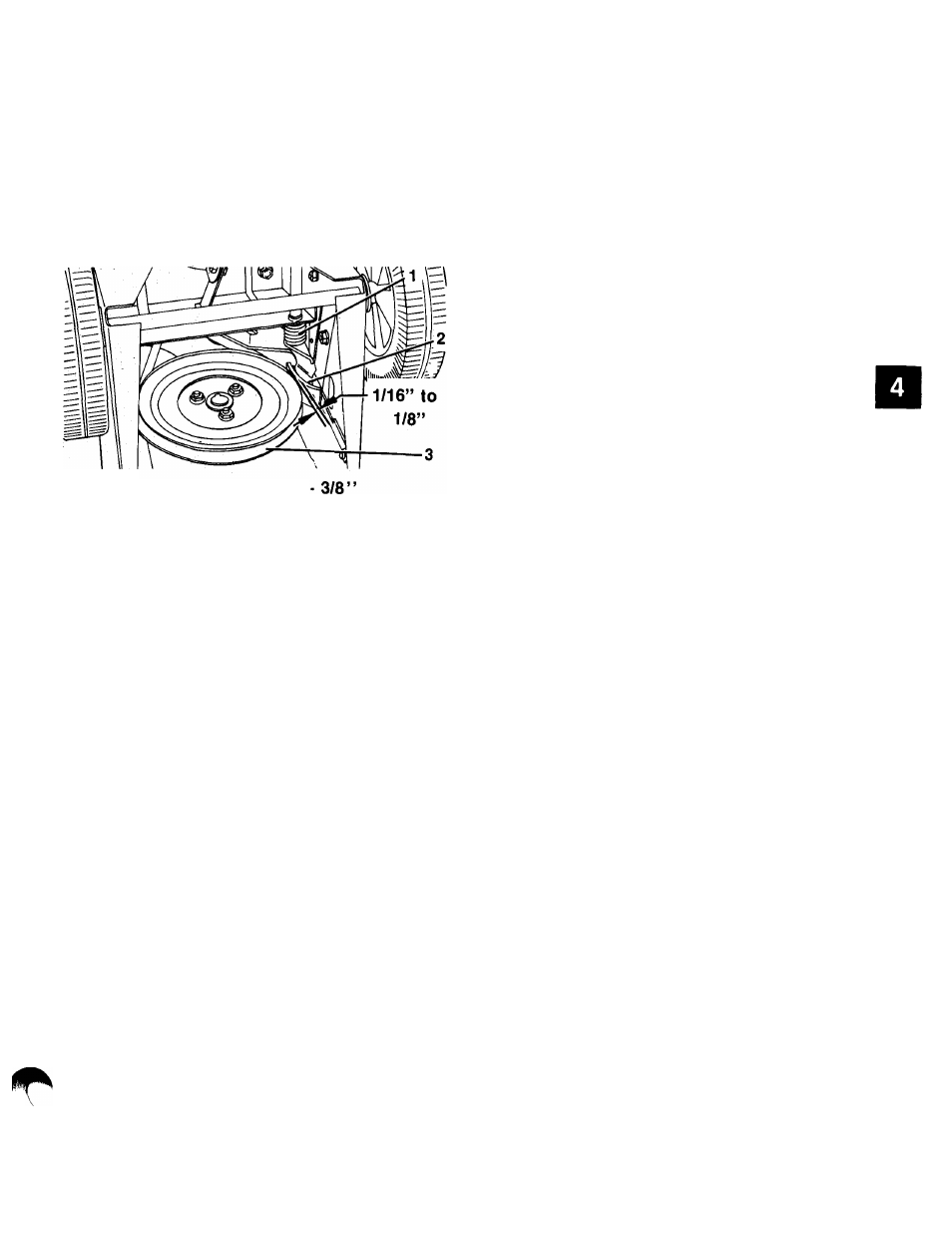

Figure 6-4: Attachment Clutch and Impeller

Brake

To check and/or adjust impeller brake, tip unit

forward onto auger/impeller housing. Remove
bottom cover by removing rear and loosening
front cap screws.

Measure distance between impeller brake

shoe and belt with attachment clutch engaged.

When attachment clutch is disengaged, brake

must contact belt.

If impeller brake shoe is not 1/16 to 1/8 inch
from belt, disengage clutch (release bail),
loosen attachment idler nut, reposition idler to

compensate for belt length, and tighten nut.

Adjust attachment clutch cable with clutch
disengaged. Pull clutch chain taught and con

nect chain link to spring. Spring should extend
approximately 3/8” with clutch engaged. With
ciutch disengaged, clutch arm should fall to its
maximum down position.
