Auger/Impeller • Discharge Chute

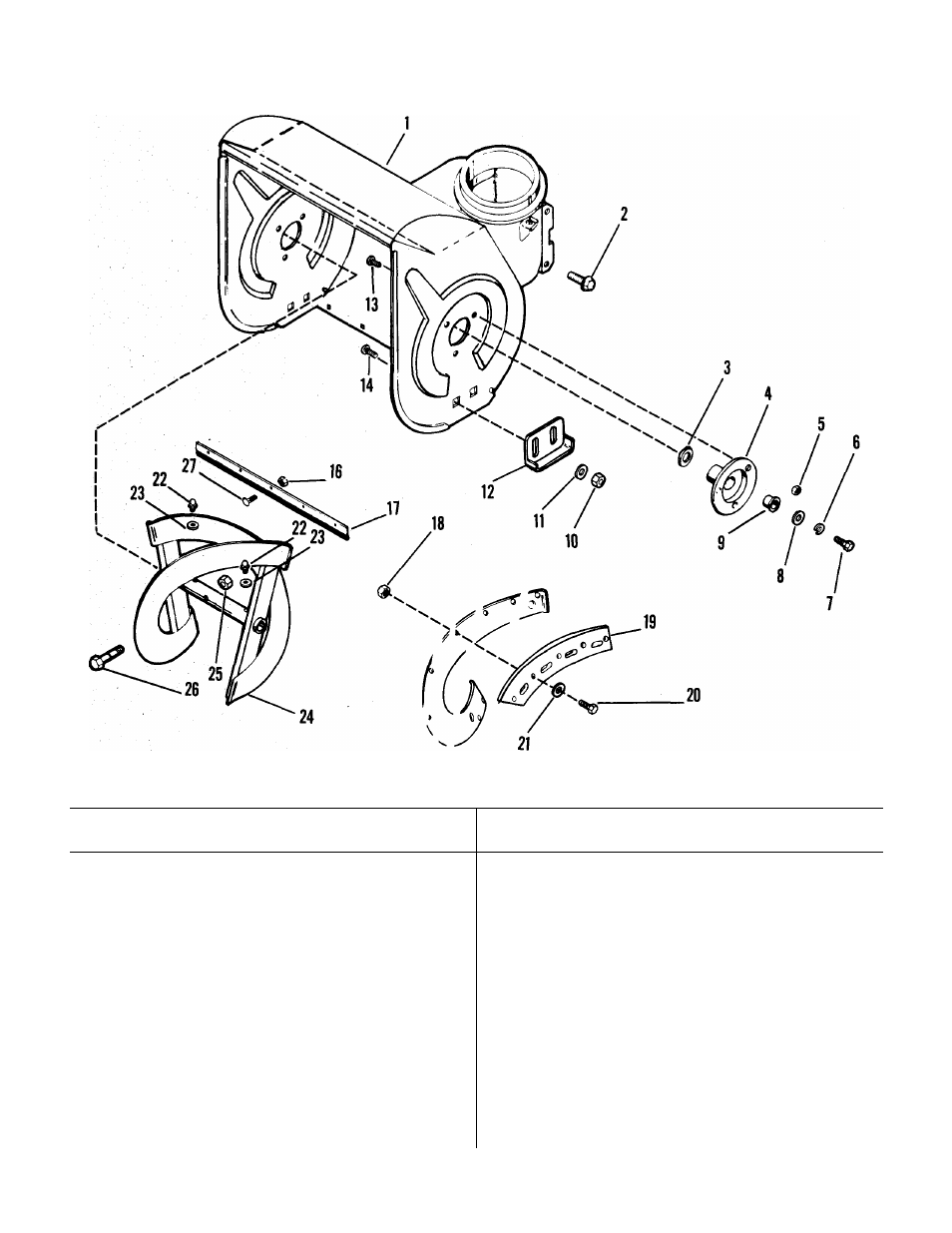

Figure 6-3: Auger/Impeller Housing (Exploded View)
ITEM
NO.
DESCRIPTION
ITEM
N0.
DESCRIPTION
1
Auger/Impeller Housing
17
Scraper Blade and Scraper Support
2
Flange Whiziock Screw, 5/16-18 x 1/2
18
Lock Nut # 10-24
3
Washer, 3/4
19
Auger Rubber w/Hardware
4
Bearing Flange w/BushIng
20
Machine Screw, #10-24 x 5/8
5
Flange Whiziock Nut, 1/4-20
21
Washer, 3/16
6
Lock Washer, 5/16
22
Spin Drive Zerk Fitting
7
Cap Screw, 5/16-18 x 5/8
23
Washer, 17/64
8
Washer, 5/16
24
Auger
9
Flange Bushing
25
Center Lock Nut, 1/4-20
10
Lock Nut, 3/8-16
26
Shear Bolt
11
Washer, 3/8
27
Carriage Bolt
12
Runner
28
Rib Neck Bolt, 5/16-18 x 3/4
13
Rib Neck Bolt, 1/4-20 x 1/2
29
Hub
14
Carriage Bolt, 3/8-16 x 3/4
30
Flange Whiziock Nut, 5/16-18
16
Flange Whiziock Nut, 1/4-20
31
Pulley
Center Lock Nut, 1/4-20
32
Set Screw
6-4
