Sears 113.298141 - Manual (Page 43)

PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW
MODEL NO. 113.298141,113.298031 & 113.298151

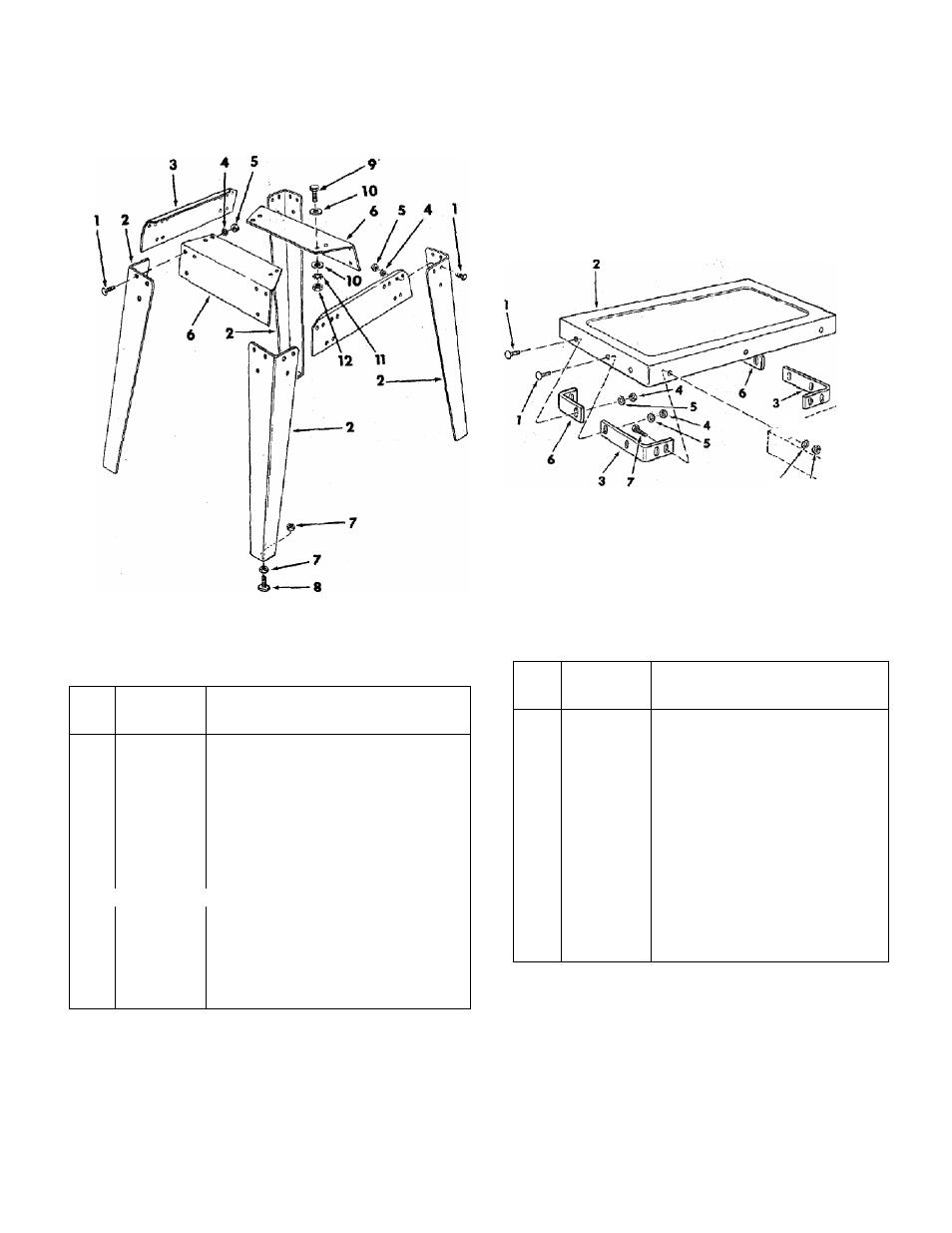

FIGURE 8 ~ LEGS SUPPLIED WITH
113.298031 AND 113.298151 ONLY
Key
No.
Part
No. Description
1 60314 Screw, Serrated Truss Hd. 1/4"20 x 5/8
2 62552 Leg
3 62554 Stiffener, Side
4 STD 551225 * Lockwasher, Ext. 1 /4
5 STD 541025 *Nut, Hex 1/4-20
6 62553 Stiffener, End
7 STD 541250 *Nut, Hex 1/2-13
8 803835 Foot, Leveling
HARDWARE FOR ATTACHING LEGS TO SAW.
9 STD 523112 *Screw, Hex Hd. 5/16-18 x 1-1/4
10 STD 551031 Washer, 11/32 1,0.
11 STD 551131 * Lockwasher, Ext. 5/16
12 STD 541031 *Nut, Hex 5/16-18
62752 Bag of Loose Parts For Legs {not illust.)
^ SAW TABLE
(REF)
8 9
FIGURE 9 - TABLE EXTENSION SUPPLIED
WITH MODEL 113.298031 AND 113.298151
Key
No.
Part
No. Description
62589 tExtension Assembly, Complete
1 60323 Screw, Serrated Truss Hd.,
1/4-20x1"
2 62590 Extension
3 62549 Bracket, Corner Support
4 STD 541025 *Nut, Hex 1/4-20
5 STD 551225 * Lockwasher, Ext. 1/4
6 62550 Bracket, Comer Stiffener
7 STD 523112 *Screw, Hex Hd. 5/16-18x1-1/4
8 STD 551131 * Lockwasher, Ext. 5/16
9 STD 541031 *Nut, Hex 5/16-18
62745 Bag of Loose Parts (not illustrated)
* Standard Hardware Items — May be Purchased Locally.
• Bag contains all Loose Parts for Extensions.
t Stock Item — May be secured through the Hardware
Department of most Sears retail stores or
catalog order house.
