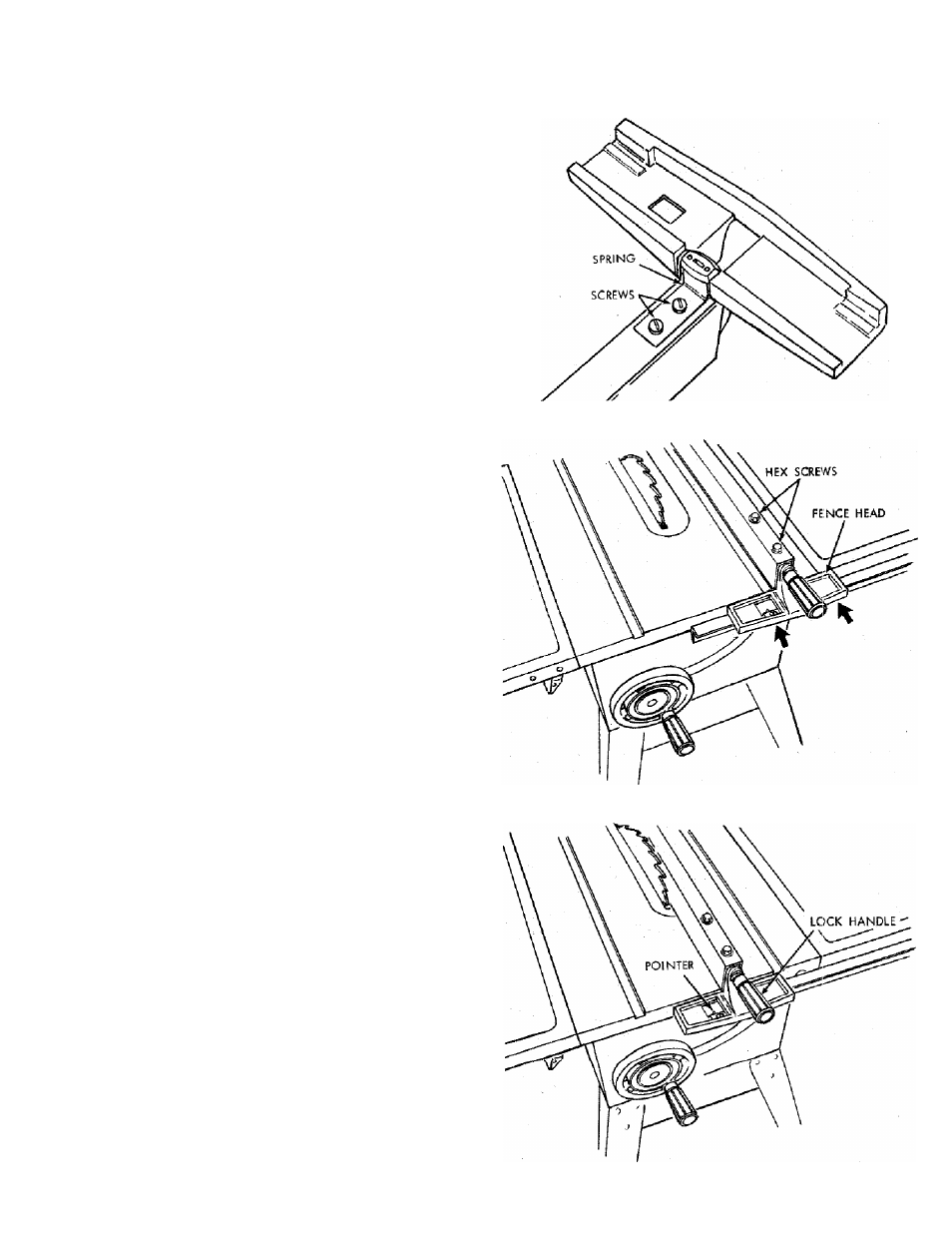

!f the fence does not slide easily along the bars, the pressure
of the spring can be REDUCED.

1. Loosen the screws.

Move spring slightly toward rear of fence ... tighten

screws.

The rip fence must be PARALLEL with the sawblade

(see page 29) and miter Gauge grooves ... Move fence

until it is along side of groove. Do NOT LOCK IT. It

should be parallel to groove. If it is not;

A. Loosen the two "Hex. Head Screws."

B. Hold fence head tightly against bar ... move end

of fence so that it is parallel with groove.

C. Alternately tighten the screws.

ADJUSTING RIP SCALE POINTER

1. Turn ELEVATION HANDWHEEL clockwise until

blade is up as high as it-will go.

IMPORTANT: BLADE must be SQUARE (90°) to

TABLE, in order to ALIGN rip fence.

2 Position fence on right side of sawblade so that it

touches the sides of the teeth ... tighten lock handle.

3. Loosen screw holding the pointer . .. adjust pointer so

that it points to "0" ... tighten screw.

NOTE: If you cannot adjust pointer so that it points to
"0", loosen the screws holding the front guide bar and
move the guide bar.
