If blade is MOT 46° to table ... the 45° STOP COLLAR
and SCALE must be ADJUSTED.
3.

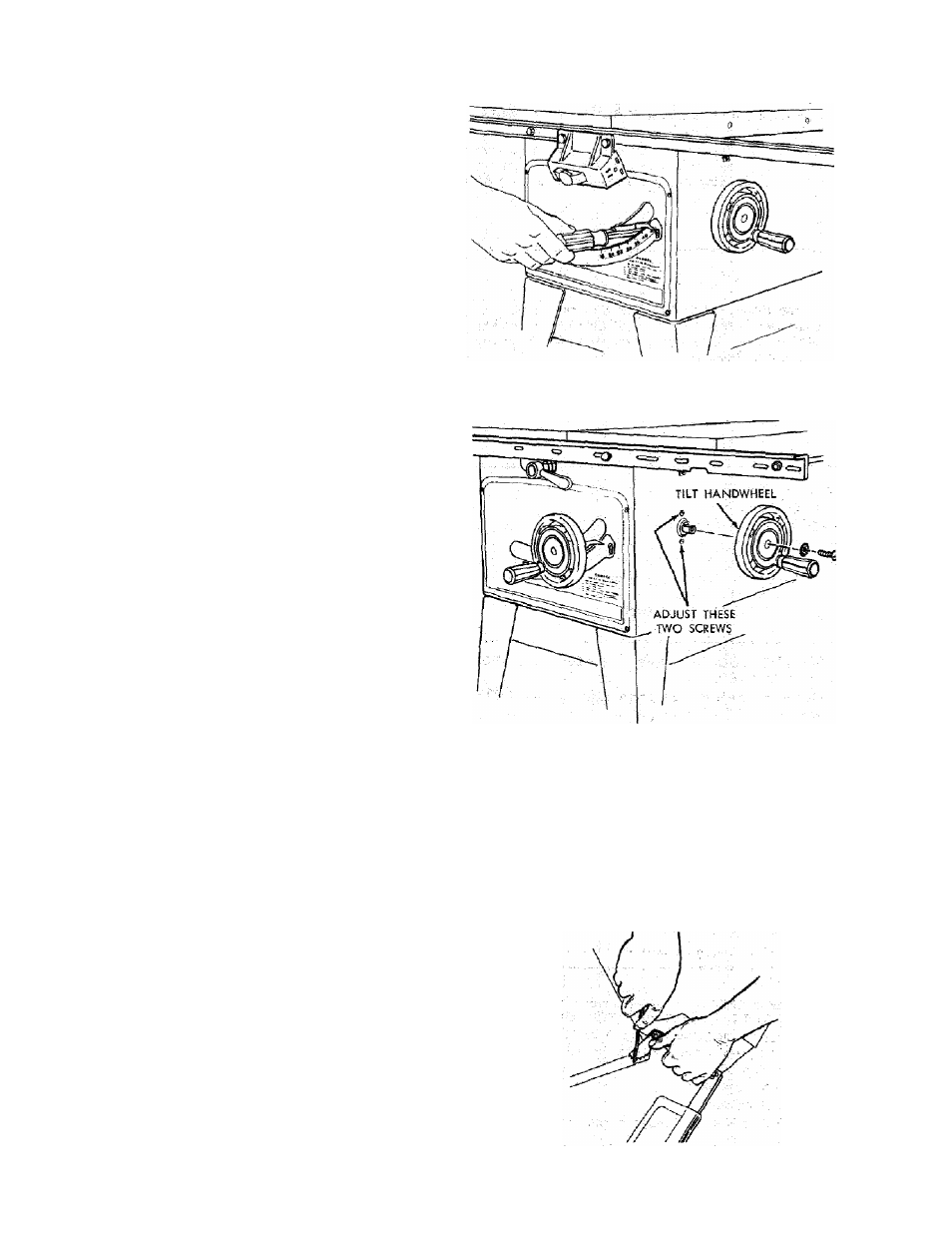

Remove Elevation Handwheel.
Using a small size screwdrivier, reach thru curved
slot in frönt trim panel and loosen BOTH setscrews
in 450 STOP COLLAR.
NOTE: If yoii can't reach the setscrews, turn the
TILT HANDWHEEL slightly.
ROTATE the STOP COLLAR moving it IN or OUT
and TILT blade RIGHT or LEFT ... checking vvith
your square until blade is 45® to table.
4. TIGHTEN the setscrews.
NOTE: If you can't reach the setscrews, turn TILT
HANDWHEEL slightly.
Loosen two screws on scale and adjust scale until
POINTER points to 45® mark.
Install Elevation Handwheel.
5.
6 .
TILT MECHANISM
The handwheel should turn freely without binding. The
turning action can be adjusted by tightening or loosening
the screws in the bearing retainer.
NOTE: Tilt Handwheel must be removed to adjust. When
adjusting the screws in the bearing retainer, hold the nut
inside using a 3/8 in. wrench.
MAINTENANCE
WARNING; FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAINTAINING OR LUBRICATING
YOUR SAW.
Do not allow sawdust to accumulate iirside the saw.
Frequently blow out any dust that may accumulate inside
the saw cabinet and the motor.
Frequently clean your cutting tools with Craftsman Gum
and Pitch Remover. ^ ^ ^ ^ ^ ^ ^ ^
A coat of automobile-type wax applied to the table will
help to keep the surface clean and allow workpieces to slide
more freely.
If the power cord is worn or cut, or damaged in any way,
have it replaced immediately.
Make sure the teeth of the ANTIKICKBAGK pawls are
always sharp. To sharpen:
T
1. Remove blade guard.
2. Rotate pawl toward fear of spreader so that teeth are
above top of spreader.
3. Hold spreader with left hand and place pawl over corner
of workbench.
4. Using a small round file {Smooth Cut) sharpen the
' teeth. ' " '
32
