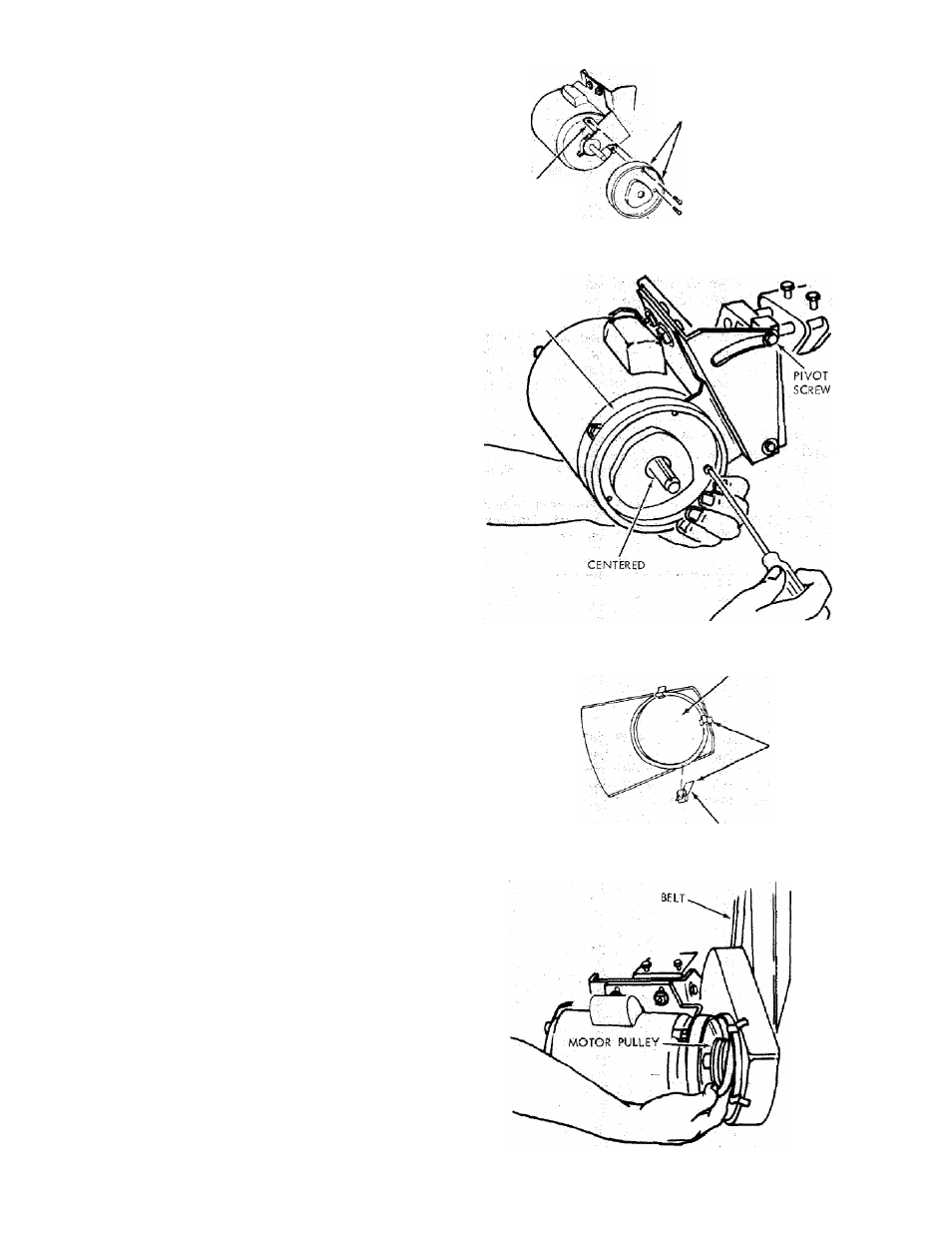

INSTALLING BELT GUARD

1. Remove tfie belt and motor pulley.

Screws furnished with guard are "self threading" ...

screw them into holes in BELT GUARD SUPPORT

BRACKET, then remove them.

Position BELT GUARD SUPPORT BRACKET and

BELT GUARD SUPPORT as shown and install the
screws ... make sure motor shaft is in CENTER of
hole in SUPPORT.

BELT GUARD

SUPPORT BRACKET

TWO

HOLES

CLOSEST

TOGETHER .

10-32 X 1/2

IN.

-SELF-THREADING

SCREW

. BELT GUARD SUPPORT

BELT GUARD

SUPPORT

Install three CLIPS (furnished with guard) 90° apart

starting with one clip at the end of the guard aS shown

... LONG END of clip facing AWAY from you.

OPENING

BELT GUARD

CLIPS

LONG END

5. Reinstall motor pulley the same way it was when you

aligned

the belt.

6. Place belt on SAW'PULLEY ... insert end of belt

through opening in END of guard.

7. Slip belt over motor pulley.
