USING THE RIP FENCE
RIPPING, BEVEL RIPPING, PLOUGHING, MOLDING,
RESAWING AND RABBETING are performed using the
RIP F E N C E t o g e t h e r w i t h t h e A U X I L I A R Y
F E N C E / W O R K SUPPORT, PUSH STICK OR PUSH
BLOCK.
WA R NIN G: FO R YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
IN ADDITION TO THE SAFETY INSTRUCtlONS ON
PAGES 2, 3, and 4.
Never make these euts FREEHAND (without using the
rip fence or auxiliary devices when required) because
the b l a d e could bind in the cut and cause a
KICKBACK. .
Always lock the rip fence securely when in use.
Remove miter gauge from table.
Make sure blade guard is installed for all thru-saWing
type cuts. Replace the guard IMMEDIATELY following
completion of resawing, rabbeting, dadoing, or molding
operations,
.
Frequently check the action of the ANTIKICKBACK
PAWLS by. passing the workpiece alongside of the
spreader while saw is OFF.
Pull the workpiece TOWARD you. If the PAWLS do
2 .
3.
4.
When "WIDTH OF RIP" is 6 in. and WIDER use your
RIGHT Hand to feed the workpiece uhtif it is clear of the
table. : . :
Use LEFT hand ONLY to guide the workpiece
FEED the workpiece with the left hand. do not
5.
6
.
7.
8
.
9.
not DIG into the workpiece and HOLD i t . . . the pawls
must be SHARPENED. See "Maintenance" section.
Have blade extend approximately T/8 in. above top of
workpiece. Additional blade exposure would increase
the hazard potential.
Do not stand directly in front of the blade in case of a
KICKBACK. Stand to either side of the blade.
Keep your hands dear, of the blade and out of the path
of the blade.
If the blade stalls or stops while: cutting. TURN
SWITCH OFF before attempting to free the blade.
Do not reach over or behind the blade to pull the
workpiece through the cut . . . to support long or
heavy workpieces , to remove small cut-off pieces of
material or FOR ANY OTHER REASON.
TO. Do not pick up small pieces of cut-off material from the
table. REMOVE them by pushing them OFF the table
with a long stick. Otherwise they could be thrown back
at you by the rear of the blade.
11. Do not remove small pieces of cut-off material that may
become TRAPPED inside the blade guard while the saw
is
RUNNING. THIS COULD ENDANGER YOUR
HANDS or cause a KICKBACK.
Turn the saw OFF, After the blade has stopped turning,
lift the guard and remove the piece.

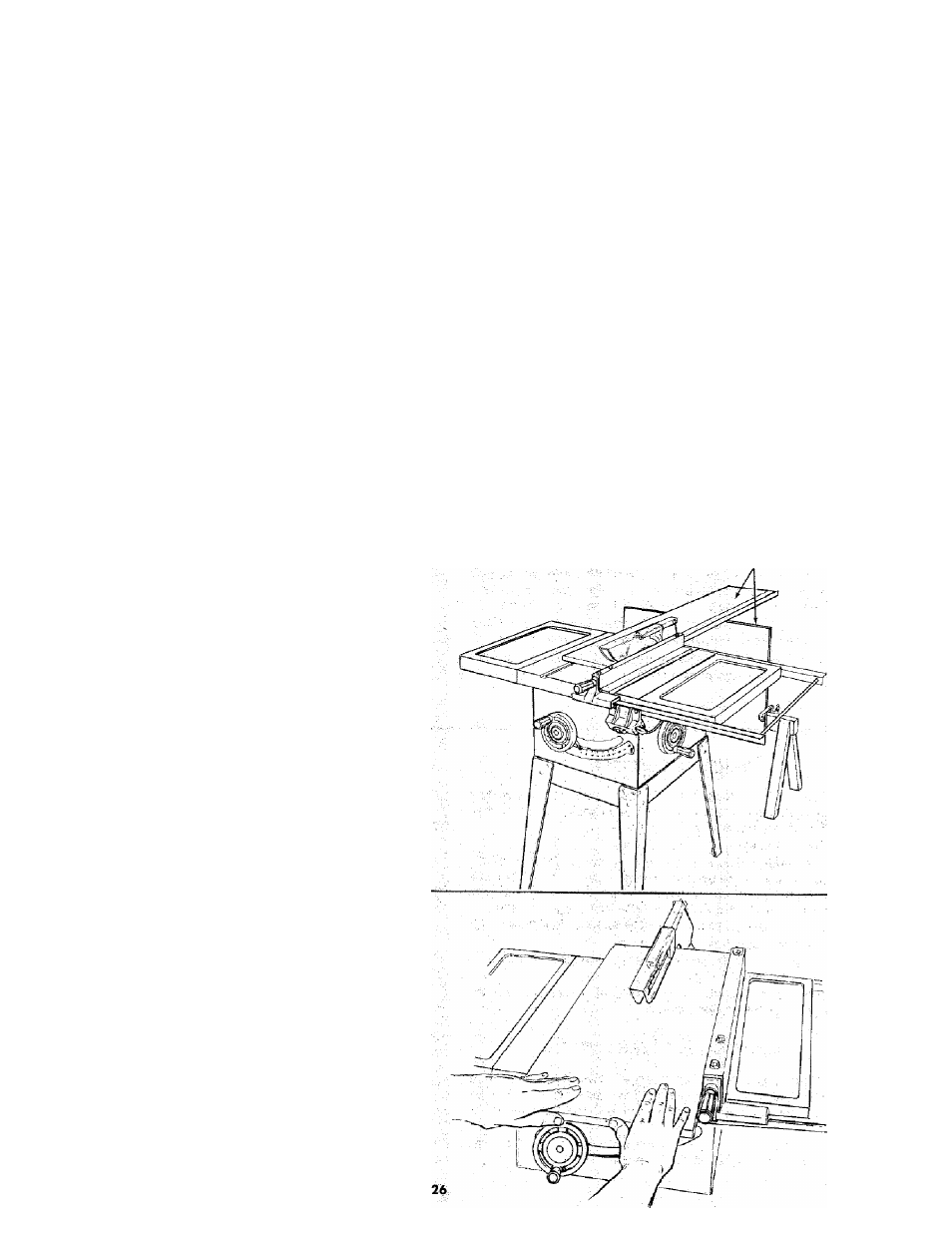

RIPPING
RIPPING is known as cutting à piece of wood with the
grain, or lengthwise. This is done using the rip fence.
Position the fence to the desired WIDTH OF RIP and lock
in place.
Before starting to rip, be sure
A. Rip Fence is parallel to sawbiade.
B. Spreader is properly aligned with sawbiade.
C. Anti kickback pawls are functioning properly .
When ripping LONG BOARDS or LARGE PANELS, always
use a work support.
.............
A simple one can be made by clamping a piece of plywood
to à sawhorse.
BEVEL RIPPING
When bevel ripping material 6 in. or narrovyer, use fence on
the right side of the blade ONLY. This will provide more
space between the fence and the sawbiade for use of a push
stick. If the fence is mounted to the left, the sawbiade
guard may interfere with proper use of a push stick.
ALWAYS SUPPORT LONG WORKPIECES
