DSE Model 71xx Series Control & Instrumentation System Mk2 Operators Manual
Part No. 057-113 71xx Series OPERATING MANUAL ISSUE 2 12/08/2010 ADM
45

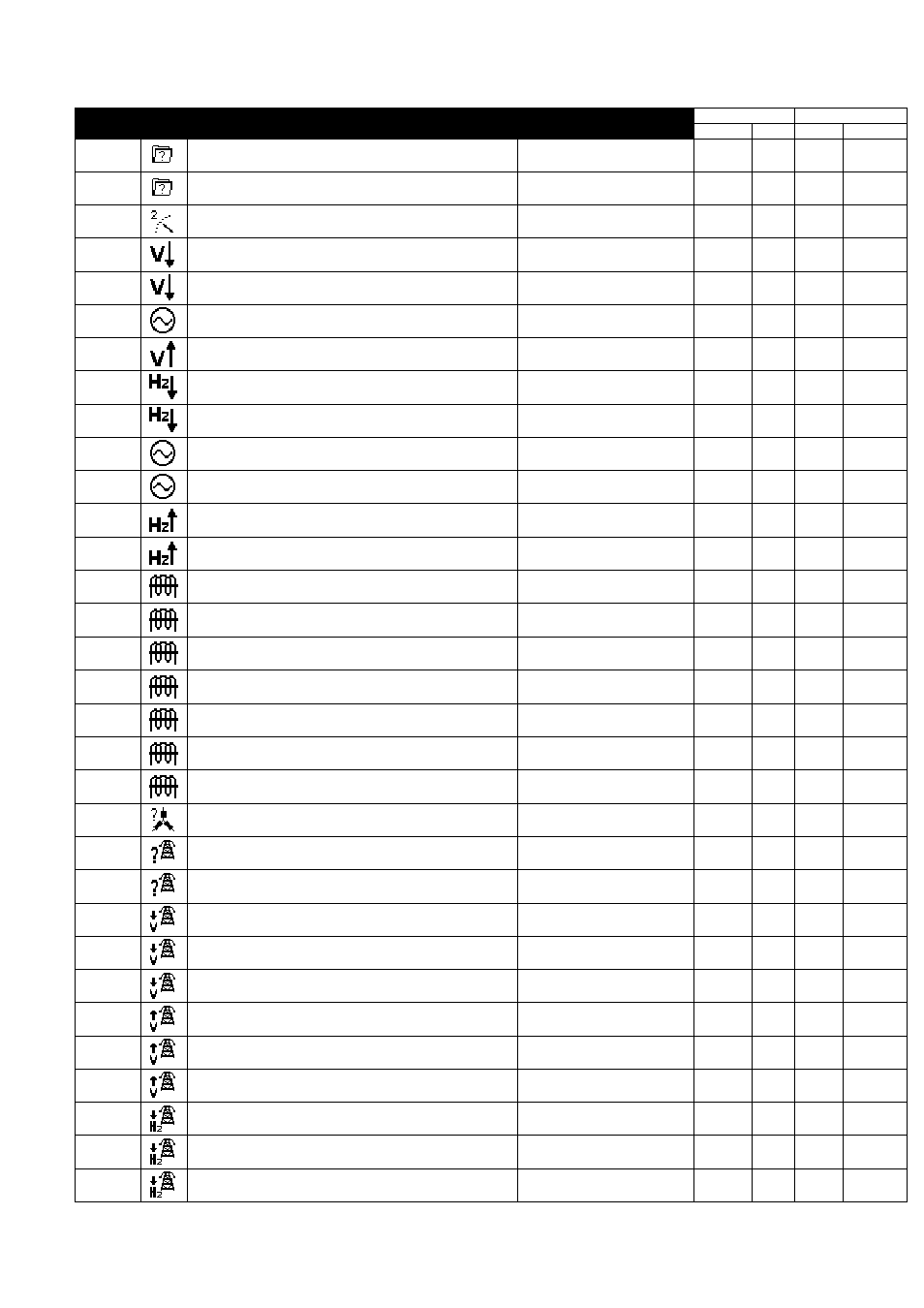

CONFIGURATION PARAMETERS – ALT’ CONFIGURATION (PAGE 9)
7110
7120
MPU
CAN
MPU
CAN
901
Default configuration
Main (1), Alternative (0)
902
Alt config - Enable configuration
On (1), Off (0)
903
Alt config - Alternative Engine Speed
On (1), Off (0)
X
X
904
Alt config - Under Voltage Shutdown enable
On (1), Off (0)
905
Alt config - Under Voltage Shutdown trip
0 V
906
Alt config - Loading Voltage
0 V
907
Alt config - Over Voltage trip
0 V
908
Alt config - Under frequency shutdown enable
On (1), Off (0)
909
Alt config - Under frequency shutdown trip
0.0 Hz
910
Alt config - Loading Frequency
0.0 Hz
911
Alt config - Nominal Frequency
0.0 Hz
912
Alt config - Over Frequency shutdown enable
On (1), Off (0)
913
Alt config - Over Frequency shutdown trip
0.0 Hz
914
CT Primary
0 (Amps)
915
Full load rating
0 (Amps)
916
Immediate Over current
On (1), Off (0)
917
Over current Delayed Alarm
On (1), Off (0)
918
Over current Delayed Alarm Action
0 (Action)
919
Over current Delay
0:00:00
920
Over current Trip
0 (%)
921
Alt config - AC system
0 (AC system)
X
X
922
Alt config - Mains failure detection
On (1), Off (0)
X
X
923
Alt config - Immediate mains dropout
On (1), Off (0)
X
X
924
Alt config - Mains under volt enable
On (1), Off (0)
X
X
925
Alt config - Mains under volt trip
0 V
X
X
926
Alt config - Mains under volt return
0 V
X
X
927
Alt config - Mains over volt enable
On (1), Off (0)
X
X
928
Alt config - Mains over volt return
0 V
X
X
929
Alt config - Mains over volt trip
0 V
X
X
930
Alt config - Mains under frequency enable
On (1), Off (0)
X
X
931
Alt config - Mains under frequency trip
0.0 Hz
X
X
932
Alt config - Mains under frequency return
0.0 Hz
X
X
