VT8300 Series User Interface Guide
WIRELESS ECOSYSTEM

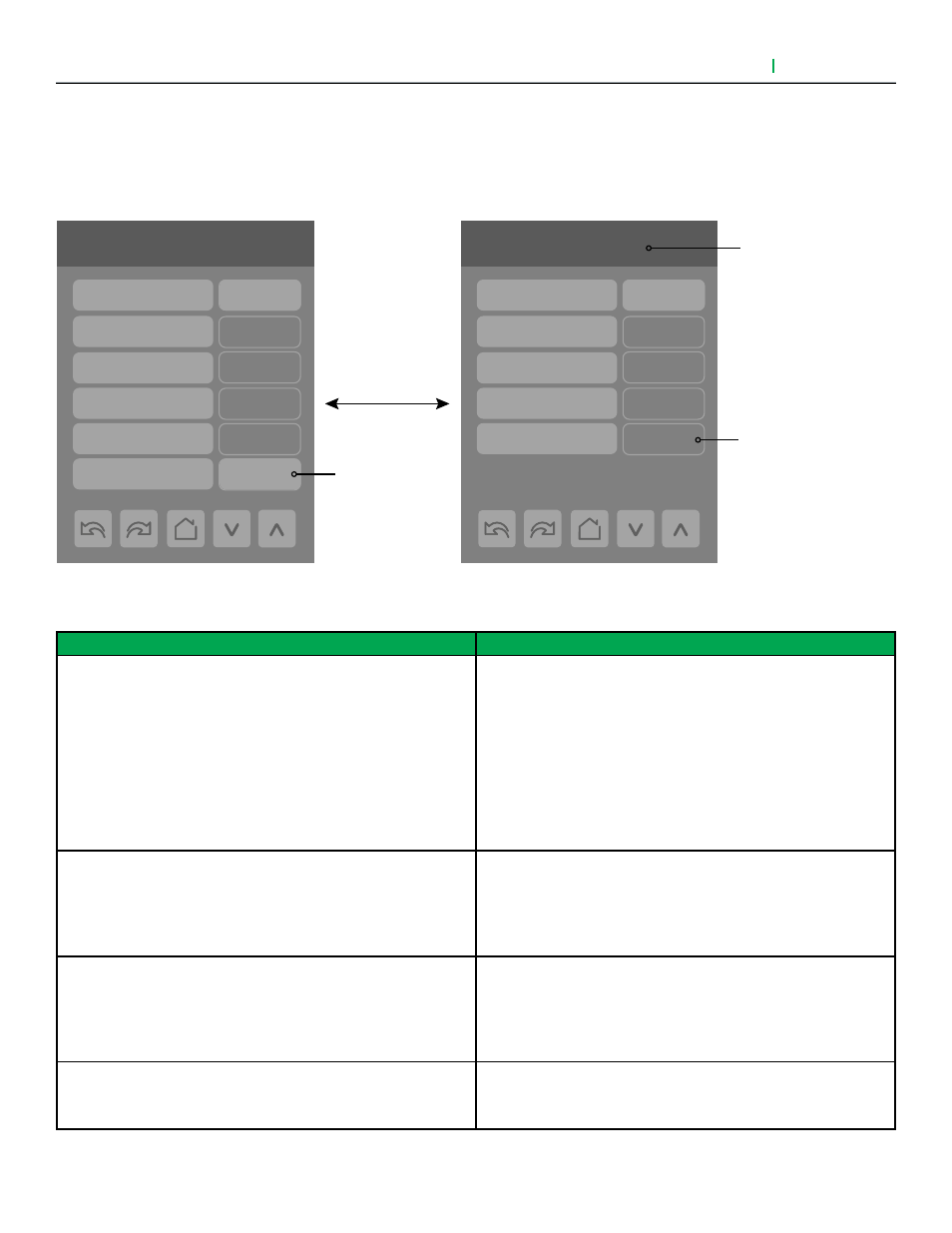

When ZigBee wireless sensors are set up to communicate with a Room Controller, the functioning of each such sensor is described in
a separate Zone screen, up to a maximum of 10 Zones. Select the appropriate type of sensor based on the required functioning using
the up and down arrow keys.
Set function to
Status
1/10 Zone
Battery
No Paired
0x0000 IEEE address
None
Closed
Normal
Permit join On
Set function to
Status
10/10 Zone
Battery
No Paired
0x0000 IEEE address
None
Closed
Normal
PARAMETER DETAILS
Configuration Parameters Default Value Significance and Adjustments
Set function to
Describe function of specified wireless sensor
Default value: None None: No sensor function configured for this zone
Door: Sensor is a door contact switch
Window: Sensor is a window contact switch
Motion: Sensor is a motion sensor
Status: Updates the BACnet status of the sensor, but no action is
taken by the internal logic of the controller.
Remove: Selecting this function clears the zone of the settings for
the attached sensor. However, the sensor will automatically try to
reconnect with the room controller unless it is manually reset as
well.
Status
Current status of information received from the sensor
Read only Close: Sensor in closed state (door/window only)
Open: Sensor in opened state (door/window only)
No motion: Sensor detects no motion (motion sensor only)
Motion: Sensor detects motion (motion sensor only)
None: No status information received from sensor.
Battery
Current status of sensor battery, if any.
Read only Low: Battery power level is low, replacement or recharge will be
needed soon
Normal: Battery power level is in the normal range, replacement or
recharge is not currently needed.
None: Sensor does not use a battery
Paired
Sensor pairing state
Read only No: Sensor is not paired with the room controller
Yes: Sensor is paired with the room controller
Invalid: Sensor cannot be paired.
Only last 4 digits
in HEX shown
Up to 10 separate
wireless sensors can
be configured, each
with its own Zone
screen
Identical to ZigBee
settings display
parameter, see
page 11
